Why Choose the Partex UCEF70025 Uninsulated Cord End Ferrule?

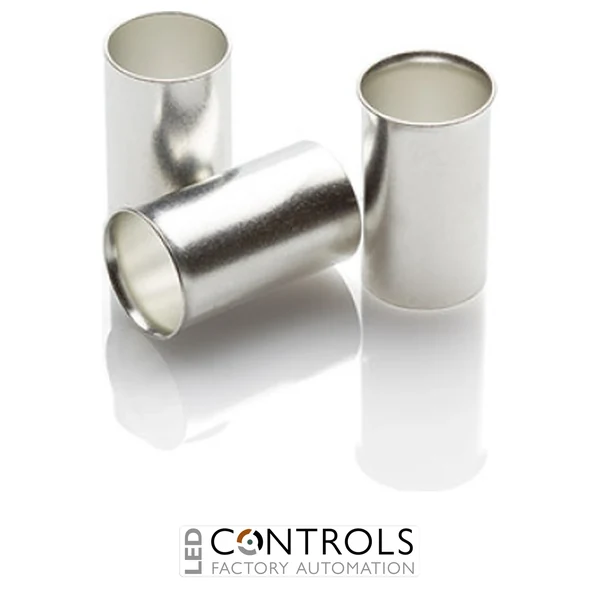

The Partex UCEF70025 is an uninsulated cord end ferrule designed for terminating flexible stranded electrical conductors with a nominal cross-sectional area of 70 mm². Featuring a 25 mm barrel length, this ferrule provides a practical solution for preparing larger conductors for connection to compatible electrical terminals.
Uninsulated cord end ferrules help contain individual conductor strands within a metal sleeve, creating a consolidated conductor end after correct crimping. The Partex UCEF70025 is particularly useful where flexible stranded conductors require a neat and consistent termination before installation into a suitable terminal block, connector or electrical equipment terminal.
With its 70 mm² conductor capacity and 25 mm barrel, the UCEF70025 is suited to appropriately designed industrial electrical assemblies, power distribution equipment and machinery wiring. Its uninsulated construction makes it important to provide the necessary electrical insulation and protection through the surrounding equipment and installation design.
Key Advantages
- 70 mm² conductor size: Designed for compatible large-section flexible stranded conductors.
- 25 mm barrel length: Provides a defined metal sleeve for conductor termination.
- Uninsulated design: Suitable for applications where insulation and protection are provided by the electrical assembly.
- Strand containment: Helps prevent individual conductor strands from spreading during terminal insertion.
- Crimp termination: Supports consistent conductor preparation using suitable crimping equipment.
- Organised connections: Helps produce neat conductor ends for compatible electrical terminals.
- Industrial applications: Useful for suitable power distribution and machinery wiring assemblies.
- Professional conductor preparation: Supports repeatable termination procedures.
- Practical maintenance component: Suitable for replacement and refurbishment work where specified.
- Clear product identification: UCEF70025 reference supports accurate selection and ordering.
Key Features
- Partex UCEF70025 product reference.
- Uninsulated cord end ferrule.
- Nominal conductor size: 70 mm².
- Metal barrel length: 25 mm.
- Single-conductor ferrule configuration.
- Metal sleeve for containing flexible conductor strands.
- No integral insulating collar.
- Designed for installation using compatible ferrule crimping equipment.
- Suitable for compatible electrical terminal connections.
- Useful for large-section conductor preparation in industrial electrical assemblies.
Technical Specifications
- Manufacturer: Partex
- Product reference: UCEF70025
- Product type: Uninsulated cord end ferrule
- Product category: Uninsulated Cord End Ferrules
- Ferrule configuration: Single conductor
- Nominal conductor cross-section: 70 mm²
- Barrel length: 25 mm
- Insulation: Uninsulated
- Termination method: Crimping
- Intended conductor type: Flexible stranded electrical conductors
- Primary function: Conductor strand containment and end termination
- Typical application: Industrial electrical wiring and compatible terminal connections
Professional 70 mm² Conductor Preparation and Crimp Termination
Large flexible stranded conductors require careful preparation to achieve a consistent termination. The Partex UCEF70025 uninsulated cord end ferrule provides a metal sleeve for a compatible 70 mm² conductor, helping keep the individual strands together during crimping and subsequent insertion into a suitable electrical terminal. Its 25 mm barrel length must be considered when selecting the conductor stripping length and receiving terminal.
For correct installation, the conductor should be stripped to the appropriate length without damaging its strands, inserted fully into the ferrule and crimped using tooling and dies approved for the ferrule and conductor. The completed termination must be compatible with the receiving terminal's dimensions, conductor capacity and connection method. Because the UCEF70025 is uninsulated, the installation must provide suitable protection against accidental contact and meet the applicable electrical safety requirements.
Typical Applications
- Termination of compatible 70 mm² flexible stranded conductors.
- Industrial electrical control and distribution assemblies.
- Power distribution equipment wiring where suitable.
- Electrical cabinet and enclosure assembly.
- Machine building and industrial equipment wiring.
- Large-section conductor preparation.
- Electrical installation and maintenance workshops.
- Industrial machinery refurbishment.
- Compatible terminal block and equipment terminal connections.
- Professional crimp termination applications.
