Why Choose the Partex UCEF95032 Uninsulated Cord End Ferrule?

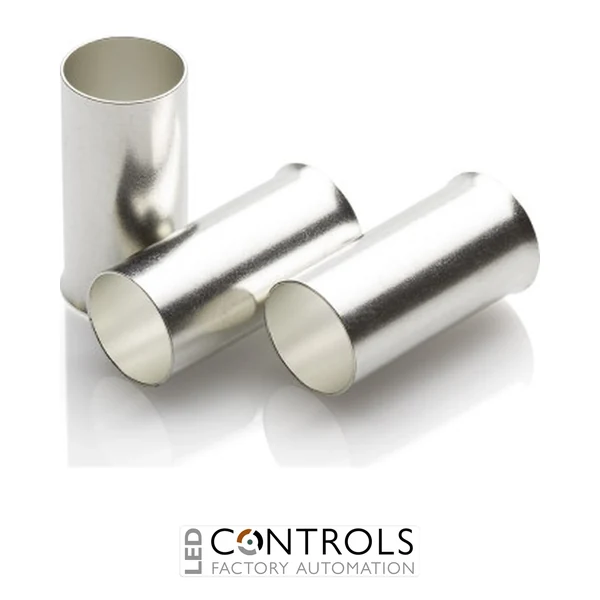

The Partex UCEF95032 is an uninsulated cord end ferrule designed for terminating flexible stranded electrical conductors with a nominal cross-sectional area of 95 mm². Featuring a 32 mm barrel length, this ferrule provides a practical solution for preparing larger conductors for connection to compatible electrical terminals.
Uninsulated cord end ferrules help contain individual conductor strands within a metal sleeve, creating a consolidated conductor end after correct crimping. The Partex UCEF95032 is particularly useful where large flexible stranded conductors require a neat and consistent termination before installation into a suitable terminal block, connector or electrical equipment terminal.
With its 95 mm² nominal conductor size and 32 mm barrel, the UCEF95032 is suitable for appropriately designed industrial electrical assemblies, power distribution equipment and machinery wiring. Its uninsulated construction means that the surrounding electrical installation must provide the necessary insulation and protection against accidental contact.
Key Advantages
- 95 mm² conductor compatibility: Designed for compatible large-section flexible stranded electrical conductors.
- 32 mm barrel length: Provides a defined metal sleeve for conductor end preparation.
- Uninsulated construction: Suitable for applications where electrical insulation is provided by the surrounding assembly.
- Effective strand containment: Helps prevent individual conductor strands from spreading during termination.
- Crimp termination: Supports consistent conductor preparation using suitable crimping equipment.
- Organised electrical connections: Helps produce neat conductor ends for compatible terminals.
- Industrial suitability: Useful for appropriate power distribution and machinery wiring applications.
- Professional installation: Supports repeatable conductor termination procedures.
- Maintenance convenience: Suitable for electrical refurbishment and replacement work where specified.
- Clear identification: UCEF95032 product reference supports accurate selection and ordering.
Key Features
- Partex UCEF95032 product reference.
- Uninsulated cord end ferrule configuration.
- Nominal conductor cross-section: 95 mm².
- Barrel length: 32 mm.
- Single-conductor termination design.
- Metal sleeve for containing flexible conductor strands.
- No integral insulating collar.
- Designed for installation using compatible ferrule crimping equipment.
- Suitable for appropriately sized electrical terminal connections.
- Useful for large-section conductor preparation in industrial electrical assemblies.
Technical Specifications
- Manufacturer: Partex
- Product reference: UCEF95032
- Product type: Uninsulated cord end ferrule
- Product category: Uninsulated Cord End Ferrules
- Ferrule configuration: Single conductor
- Nominal conductor cross-section: 95 mm²
- Barrel length: 32 mm
- Insulation: Uninsulated
- Termination method: Crimping
- Intended conductor type: Compatible flexible stranded electrical conductors
- Primary function: Conductor strand containment and end termination
- Typical application: Industrial electrical wiring and compatible terminal connections
Professional 95 mm² Conductor Preparation and Crimp Termination
Large flexible stranded conductors require careful preparation to achieve a consistent electrical termination. The Partex UCEF95032 Uninsulated Cord End Ferrule provides a metal sleeve for a compatible 95 mm² conductor, helping contain individual conductor strands during crimping and subsequent insertion into a suitable electrical terminal. Its 32 mm barrel length must be considered when determining the conductor stripping length and selecting the receiving terminal.
For correct installation, the conductor should be stripped to the appropriate length without damaging its strands, inserted fully into the ferrule and crimped using tooling and dies suitable for the ferrule and conductor construction. The completed termination must be compatible with the receiving terminal's dimensions, conductor capacity and connection method. Because the UCEF95032 is uninsulated, the installation must provide suitable electrical insulation, mechanical protection and safeguards against accidental contact.
Typical Applications
- Termination of compatible 95 mm² flexible stranded conductors.
- Industrial electrical control and distribution assemblies.
- Power distribution equipment wiring where suitable.
- Electrical cabinet and enclosure assembly.
- Industrial machinery and equipment wiring.
- Large-section conductor preparation.
- Electrical installation and maintenance workshops.
- Industrial equipment refurbishment.
- Compatible terminal block and equipment terminal connections.
- Professional crimp termination applications.
