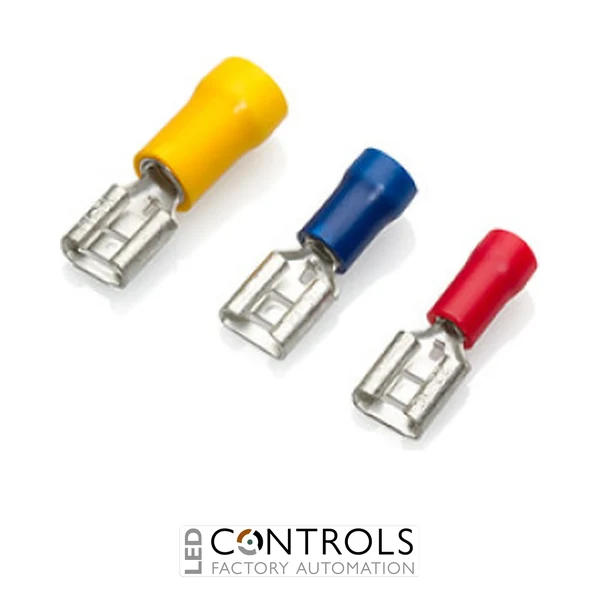

Why Choose the Partex YF66/08/VR Yellow Insulated Push-On Terminal?
The Partex YF66/08/VR is a professional yellow insulated push-on electrical terminal designed for connecting flexible copper conductors to compatible male blade terminals. Featuring a 6.3 mm × 0.8 mm tab connection size, this push-on connector provides a practical solution for electrical wiring, machinery assembly, control panels and equipment maintenance.
Part of the Partex insulated push-on terminal range, the YF66/08/VR is intended for crimp termination onto a suitably sized conductor, allowing the completed connector to be pushed onto a compatible male tab. This arrangement provides a convenient detachable electrical connection, making it useful for equipment that requires installation, inspection, servicing or component replacement.
The yellow insulation provides an easily recognisable connector finish and helps distinguish the terminal during wiring assembly. Supplied in a convenient pack of 100, the Partex YF66/08/VR is suitable for electrical contractors, panel builders, OEM equipment manufacturers and industrial maintenance engineers requiring consistent push-on terminal connections.
Key Advantages
- 6.3 mm × 0.8 mm connection size: Designed for compatible male blade terminals of the specified dimensions.
- Insulated terminal construction: Incorporates an insulating covering around the connector's crimp termination area.
- Yellow identification colour: Provides a recognisable terminal finish during electrical assembly.
- Push-on connection: Allows connection to a suitable male blade without a separate screw-fastening operation.
- Detachable electrical connection: Useful where equipment components may require servicing or replacement.
- Crimp termination: Provides a mechanical connection between the terminal and a correctly prepared conductor.
- Professional wiring finish: Supports tidy and organised electrical installations.
- Convenient pack of 100: Suitable for workshop assembly, electrical installation and maintenance stock.
- Versatile applications: Useful for compatible machinery, control equipment and electrical component connections.
- Efficient installation: Supports repeatable connector assembly when used with appropriate crimping equipment.
- Partex connection solution: Designed for professional electrical termination applications.
Key Features
- Partex YF66/08/VR insulated push-on terminal.
- Female push-on connection for compatible male blade terminals.
- Nominal blade width: 6.3 mm.
- Nominal blade thickness: 0.8 mm.
- Insulation colour: Yellow.
- Crimp-style conductor termination.
- Designed for compatible flexible copper conductors.
- Push-fit connection for suitable electrical tabs.
- Detachable connector arrangement for equipment wiring.
- Suitable for installation using an appropriate insulated terminal crimping tool.
- Useful for electrical assembly and maintenance applications.
- Pack quantity: 100 terminals.
Technical Specifications
- Manufacturer: Partex
- Manufacturer part number: YF66/08/VR
- Product range: Insulated Push-On Terminals
- Product type: Insulated female push-on connector
- Connection style: Female blade receptacle
- Nominal mating tab width: 6.3 mm
- Nominal mating tab thickness: 0.8 mm
- Insulation colour: Yellow
- Conductor termination: Crimp
- Conductor type: Compatible stranded copper conductor
- Connection method: Push-on mating connection
- Required installation tool: Compatible insulated terminal crimping tool
- Pack quantity: 100 pieces
- Primary function: Detachable electrical connection to compatible male blade terminals
- Typical applications: Electrical control equipment, industrial machinery, equipment wiring and maintenance
Reliable Insulated Push-On Connections for Electrical Equipment
The Partex YF66/08/VR yellow insulated push-on terminal provides a practical method of connecting electrical conductors to compatible male blade terminals. Its 6.3 mm × 0.8 mm mating dimensions make it suitable for equipment connections using the corresponding blade size, subject to confirmation of terminal compatibility and electrical ratings.
Push-on terminals are commonly used where electrical connections must be assembled efficiently and may need to be disconnected during equipment servicing. Once the connector has been correctly crimped onto the conductor, it can be pushed onto a compatible male tab to form the electrical connection. The mating connector should fit securely without excessive looseness or deformation.
Correct crimping is essential for dependable performance. The conductor should be stripped to the length recommended for the terminal, ensuring that the copper strands are not damaged. The prepared conductor is then inserted into the crimp barrel and compressed using an insulated terminal crimping tool with a suitable crimping profile and capacity.
The yellow insulating covering helps identify the terminal and provides insulation around the connector's termination area. However, the insulation must not be assumed to provide complete protection against contact with exposed mating tabs or other live components. The installation must maintain the necessary electrical clearances, enclosure protection and isolation procedures.
When selecting the YF66/08/VR, installers should verify the intended conductor cross-section, terminal current and voltage ratings, operating temperature and compatibility with the mating blade. The 6.3 mm × 0.8 mm dimensions identify the mating tab size and do not independently establish the connector's electrical rating.
Supplied in a pack of 100, the Partex YF66/08/VR supports consistent terminal selection for electrical assembly, industrial machinery wiring and routine equipment maintenance.
Typical Applications
- Electrical connections to compatible 6.3 mm × 0.8 mm male blade terminals.
- Industrial control panel wiring.
- Machinery electrical equipment connections.
- Electrical switch and component connections where compatible.
- OEM electrical equipment assembly.
- Electrical cabinet and enclosure wiring.
- Industrial automation equipment connections.
- Electrical appliance and equipment servicing where suitable.
- Replacement of compatible insulated push-on terminals.
- Workshop wiring and electrical assembly.
- Industrial electrical maintenance and refurbishment.
- Professional crimped conductor termination.
