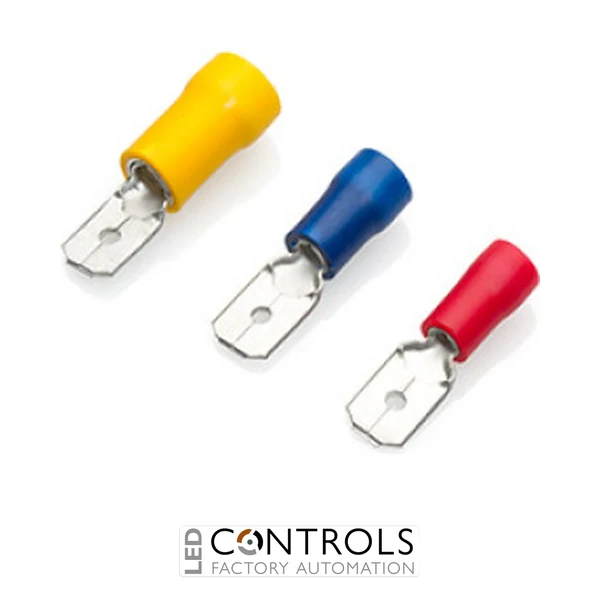

Why Choose the Partex YM63/VR Yellow Insulated Male Tab Terminal?
The Partex YM63/VR is a practical and reliable yellow insulated male tab terminal designed for quick-disconnect electrical connections in industrial wiring, electrical equipment and control panel assemblies. Featuring a 6.3 mm × 0.8 mm male blade, this crimp connector is intended for use with a compatible female receptacle, providing a convenient connection that can be separated for servicing or maintenance.
As part of the Partex insulated electrical terminal range, the YM63/VR combines a conductive metal terminal with yellow insulation around the crimp connection. The male blade configuration allows electrical conductors to be connected to suitable female terminals without soldering, making it useful for equipment manufacturing, electrical maintenance and wiring harness assembly.
With its 6.3 mm wide and 0.8 mm thick blade, the YM63/VR is suitable for applications requiring a standard-sized male quick-disconnect connection. Its yellow insulated design provides visual identification, while the pack of 100 terminals supports efficient installation and repetitive electrical wiring operations.
Key Advantages
- 6.3 mm × 0.8 mm male tab designed for compatible female quick-disconnect terminals.
- Yellow insulated construction provides visual identification and protection around the crimp connection.
- Quick-disconnect design allows convenient connection and disconnection during equipment servicing.
- Crimp termination eliminates the need for soldering when correctly installed.
- Suitable for electrical equipment, control panels and wiring harness assemblies.
- Conductive metal contact supports dependable electrical continuity.
- Compact terminal configuration is convenient for equipment wiring and electrical assemblies.
- Pack of 100 is suitable for maintenance departments, panel builders and production wiring.
Key Features
- Partex YM63/VR male tab terminal.
- Yellow insulated crimp connector.
- 6.3 mm male blade width.
- 0.8 mm male blade thickness.
- Male quick-disconnect terminal configuration.
- Designed to mate with a compatible 6.3 mm × 0.8 mm female receptacle.
- Crimp barrel for terminating suitable electrical conductors.
- Insulated termination section for additional protection around the wire connection.
- Suitable for detachable electrical wiring connections.
- Useful in industrial machinery, equipment wiring and electrical control systems.
- Supplied in a pack of 100 pieces.
Technical Specifications
- Manufacturer: Partex
- Model: YM63/VR
- Product type: Insulated male tab terminal
- Terminal configuration: Male quick-disconnect blade
- Blade width: 6.3 mm
- Blade thickness: 0.8 mm
- Insulation colour: Yellow
- Insulation: Insulated crimp barrel
- Connection type: Push-on / quick disconnect
- Termination method: Crimp
- Mating connector: Compatible 6.3 mm × 0.8 mm female receptacle
- Pack quantity: 100 pieces
Reliable Quick-Disconnect Connections for Electrical Equipment
The Partex YM63/VR male tab terminal is designed to provide a convenient detachable connection between an electrical conductor and a compatible female quick-disconnect terminal. Its flat male blade fits into the corresponding female receptacle, enabling electrical circuits and equipment connections to be assembled or disconnected without removing screw fixings.
The insulated crimp barrel allows a suitable conductor to be secured using an appropriate crimping tool. Correct wire preparation, terminal selection and crimping are important for dependable electrical and mechanical performance. The yellow insulation helps identify the connector and protects the termination area, while the exposed male blade must be appropriately protected against accidental contact where required.
Typical Applications
- Industrial electrical control panels and cabinet wiring.
- Electrical equipment manufacturing and assembly.
- Machinery wiring and industrial automation equipment.
- Wiring harnesses and detachable electrical connections.
- Maintenance and replacement of electrical connectors.
- Switches, relays and compatible electrical components.
- OEM equipment production and assembly operations.
- General low-voltage electrical wiring where suitable quick-disconnect terminals are specified.
