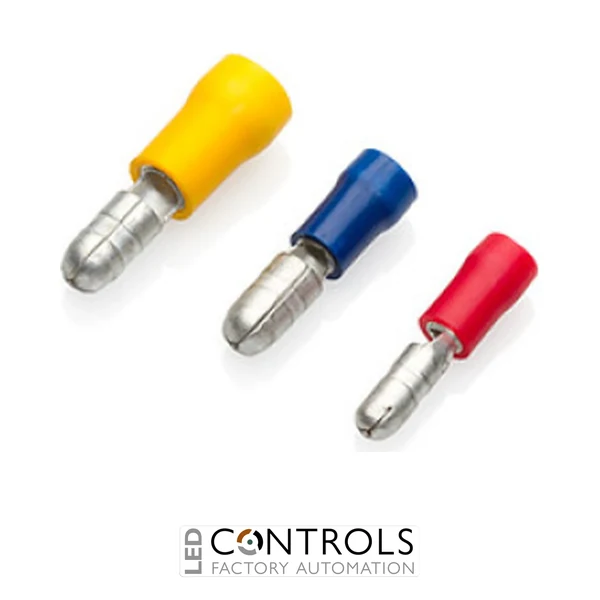

Why Choose the Partex YMB50/VR Yellow Insulated Male Bullet Terminal?
The Partex YMB50/VR is a high-quality yellow insulated male bullet crimp terminal designed to provide secure, detachable electrical connections in industrial wiring, electrical equipment and control panel assemblies. Featuring a 5 mm diameter male bullet contact, this terminal is designed to connect with a compatible female bullet receptacle, providing a convenient solution for electrical circuits requiring reliable connections and straightforward maintenance.
As part of the Partex insulated crimp terminal range, the YMB50/VR combines a conductive metal terminal with protective yellow insulation around the crimp connection. Its cylindrical bullet contact provides a push-fit connection with a matching female terminal, while the crimp barrel enables secure conductor termination without soldering. The VR vibration-resistant configuration is particularly useful for wiring installations exposed to movement and mechanical vibration.
Featuring a 5 mm male bullet connection and distinctive yellow insulation, the YMB50/VR is suitable for electrical assembly, equipment maintenance and wiring harness applications. Supplied in a convenient pack of 100 terminals, it provides a practical connection solution for electricians, panel builders, maintenance engineers and OEM equipment manufacturers.
Key Advantages
- 5 mm male bullet terminal designed for compatible female bullet connectors.
- Yellow insulated construction provides visual identification and protection around the crimp termination.
- Vibration-resistant VR design supports dependable connections in equipment exposed to movement.
- Push-fit bullet connection allows convenient assembly and disconnection during maintenance.
- Crimp termination provides a secure electrical and mechanical connection without soldering.
- Conductive metal contact supports reliable electrical continuity.
- Suitable for electrical equipment, industrial machinery and wiring harness assemblies.
- Compact connector design is practical for electrical installations with limited wiring space.
- Pack of 100 supports efficient maintenance, panel assembly and production wiring operations.
Key Features
- Partex YMB50/VR male bullet terminal.
- 5 mm diameter male bullet contact.
- Yellow insulated crimp connector.
- VR vibration-resistant terminal configuration.
- Designed to mate with a compatible 5 mm female bullet receptacle.
- Push-fit connection for detachable electrical wiring.
- Crimp barrel designed for terminating suitable stranded copper conductors.
- Insulated termination section for protection around the conductor connection.
- Suitable for electrical control panels, equipment wiring and industrial assemblies.
- Convenient installation using an appropriate insulated-terminal crimping tool.
- Supplied in a pack of 100 pieces.
Technical Specifications
- Manufacturer: Partex
- Series: Insulated Bullet Terminals
- Model: YMB50/VR
- Product type: Insulated male bullet crimp terminal
- Terminal configuration: Male bullet
- Bullet diameter: 5 mm
- Insulation colour: Yellow
- Insulation type: Insulated crimp barrel
- Design: VR vibration-resistant configuration
- Connection type: Push-fit / quick disconnect
- Termination method: Crimp
- Compatible conductor type: Stranded copper wire
- Mating connector: Compatible 5 mm female bullet terminal
- Pack quantity: 100 pieces
Reliable Bullet Connections for Industrial Electrical Wiring
The Partex YMB50/VR male bullet terminal provides a practical method of creating detachable electrical connections between conductors. Its cylindrical 5 mm male contact is designed to engage with a compatible female bullet receptacle, creating a push-fit connection that can be separated when equipment requires servicing, inspection or wiring modifications.
The terminal's insulated crimp barrel is designed to secure a correctly prepared conductor using an appropriate crimping tool. The VR configuration provides additional resistance to vibration-related stresses, making the connector useful in machinery and equipment where movement may affect electrical connections. Correct conductor selection, crimping and connector compatibility are essential for dependable performance. The exposed male contact must be appropriately protected against accidental contact where required by the installation.
Typical Applications
- Industrial machinery and electrical equipment wiring.
- Electrical control panels and cabinet assemblies.
- Wiring harness manufacturing and assembly.
- Equipment connections requiring periodic disconnection.
- Electrical maintenance and replacement wiring.
- Industrial automation and auxiliary electrical circuits.
- OEM electrical equipment manufacturing.
- Applications requiring compatible 5 mm male and female bullet connectors.
