Why Choose the Partex YR32 M3 Yellow Ring Terminals?

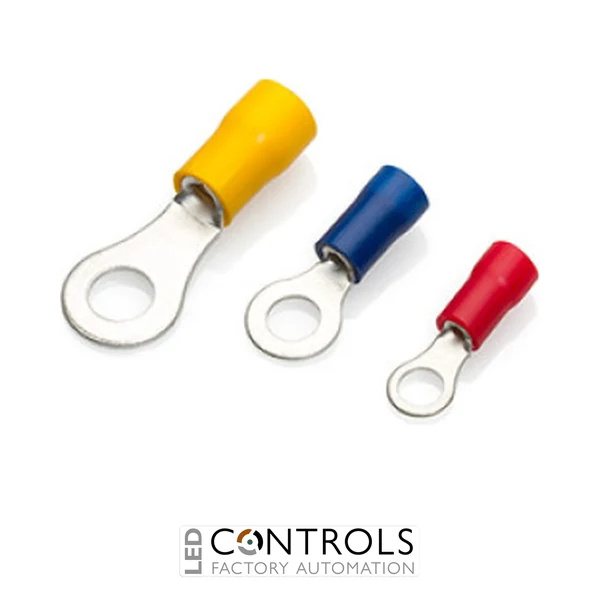

The Partex YR32 is a professional yellow insulated ring terminal designed for terminating electrical conductors at compatible M3 screw and stud connections. Featuring a closed-ring contact and a yellow insulating sleeve, this terminal provides a practical solution for electrical control panels, industrial machinery, automation equipment and professional electrical installations.
The Partex YR32 M3 ring terminal features a closed circular contact that fits around a compatible M3 fastening point. Once correctly installed and secured, the ring design helps retain the terminal beneath the fastener, providing a mechanically secure connection. The yellow insulated sleeve covers the conductor entry area, supporting neat conductor termination and providing additional protection around the crimp connection.
Supplied in a convenient pack of 100 terminals, the YR32 is a practical choice for electrical contractors, control panel builders, OEM manufacturers and industrial maintenance engineers. Its combination of an M3 ring connection and yellow insulation makes it suitable for professional wiring applications requiring a clearly identifiable insulated terminal.
Key Advantages
- Professional M3 insulated ring terminals for electrical conductor termination.
- Closed-ring contact designed for compatible M3 screw and stud connections.
- Yellow insulating sleeve provides a clearly identifiable terminal finish.
- Ring design helps retain the terminal beneath the fastener when correctly installed.
- Insulated conductor entry supports neat and organised wiring installations.
- Suitable for electrical control panels, industrial machinery and equipment wiring.
- Designed for crimp termination using suitable tooling.
- Pack of 100 terminals convenient for repetitive electrical assembly and maintenance.
- Practical for electrical engineers, panel builders, OEM manufacturers and maintenance professionals.
Key Features
- Partex YR32 insulated ring terminal.
- M3 nominal fastening size.
- Yellow insulated sleeve around the conductor entry.
- Closed circular ring contact for compatible screw and stud connections.
- Crimp-style conductor termination.
- Designed for use with suitable stranded conductors and compatible crimping tools.
- Ring configuration provides a captured connection when the fastener is correctly secured.
- Suitable for professional electrical wiring and terminal connections.
- Useful for electrical equipment assembly, servicing and replacement work.
- 100 yellow ring terminals per pack.
Technical Specifications
- Manufacturer: Partex
- Model: YR32
- Product type: Insulated ring terminal
- Terminal style: Closed-ring crimp terminal
- Nominal fastening size: M3
- Insulation colour: Yellow
- Insulation: Insulated conductor entry
- Connection method: Compatible M3 screw or stud fastening
- Conductor termination: Crimp connection using suitable tooling
- Terminal configuration: Single-conductor ring terminal
- Pack quantity: 100 terminals
- Primary function: Electrical conductor termination at compatible screw or stud connections
- Typical applications: Electrical control panels, industrial machinery and electrical equipment
- Manufacturer part number: YR32
Secure Insulated Ring Connections for Professional Electrical Wiring
Insulated ring terminals provide a practical method of connecting electrical conductors to compatible screw and stud fastening points. Their closed-ring design surrounds the fastener, helping maintain the terminal's position once the connection has been correctly assembled and tightened. This makes them useful in electrical installations where secure conductor attachment and consistent termination practices are important.
The Partex YR32 combines an M3 ring contact with a yellow insulated sleeve, providing a clearly identifiable termination for compatible electrical connections. The insulating sleeve covers the conductor entry area and helps provide a tidy finish, while the ring contact is secured beneath a suitable M3 screw or nut. The exposed ring contact must still receive appropriate protection within the completed electrical installation.
For electrical contractors, control panel builders and maintenance teams, the 100-piece pack provides a practical supply for routine installation, equipment assembly and repair work. Before installation, the conductor cross-section should be checked against the manufacturer's specifications, and a compatible crimping tool should be used. The completed terminal must also be secured according to the receiving equipment manufacturer's fastening and electrical requirements.
Typical Applications
- Electrical control panel conductor termination.
- Industrial automation and PLC cabinet wiring.
- Compatible M3 screw and stud connections.
- Industrial machinery and electrical equipment.
- Machine building and OEM electrical manufacturing.
- Electrical distribution and control assemblies.
- Equipment wiring requiring insulated crimp terminals.
- Electrical cabinet assembly and maintenance.
- Equipment refurbishment and replacement terminal connections.
- Professional electrical installations requiring yellow insulated M3 ring terminals.
