Why Choose the Partex PXA2-75L A1/A2 Unarmoured Cable Gland?

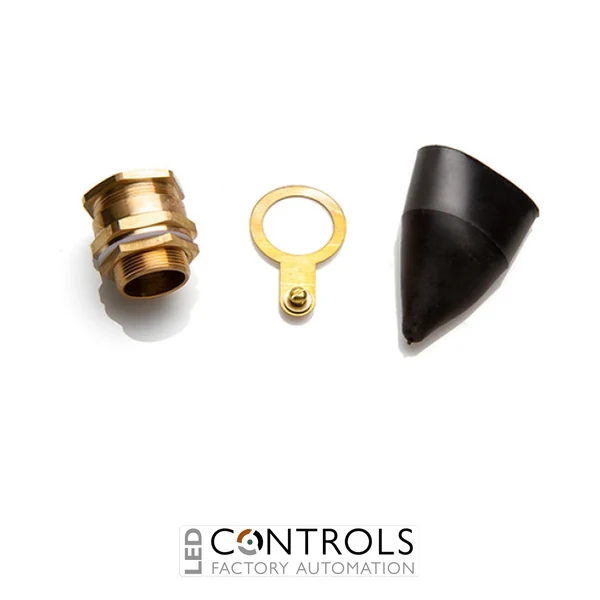

The Partex PXA2-75L is a heavy-duty A1/A2 unarmoured cable gland designed to provide secure cable entry, mechanical retention and environmental sealing for large-diameter unarmoured electrical cables. Featuring an M75 metric thread and a specified cable outside diameter range of 60.5–67.0 mm, this cable gland is suitable for industrial electrical enclosures, power distribution equipment and heavy-duty electrical installations.
Part of the Partex A1/A2 unarmoured cable gland range, the PXA2-75L provides a practical solution for terminating large unarmoured cables at enclosure entry points. Its compression sealing arrangement is designed to grip the cable outer sheath, helping maintain cable positioning and supporting environmental protection when the gland is correctly selected and installed.
With its M75 threaded connection and capacity to accommodate cables measuring 60.5–67.0 mm in outside diameter, the PXA2-75L is particularly suitable for large industrial power cables and multicore electrical cables. Its robust construction and straightforward installation make it a practical choice for electrical contractors, panel builders and industrial maintenance engineers working with substantial cable installations.
Key Advantages
- Heavy-duty A1/A2 cable gland designed for unarmoured electrical cables.
- M75 metric thread for compatible industrial enclosure entries.
- 60.5–67.0 mm cable outside diameter range for large electrical cables.
- Compression sealing arrangement provides cable sheath retention and environmental sealing.
- Robust brass gland construction suitable for professional industrial installations.
- Helps reduce unwanted cable movement at the enclosure entry point.
- Suitable for large power distribution cables and industrial electrical equipment.
- Designed for dependable cable entry in demanding electrical installation environments.
Key Features
- Partex A1/A2 unarmoured cable gland series.
- PXA2-75L model designation.
- M75 metric threaded cable entry.
- 60.5 mm minimum cable outside diameter.
- 67.0 mm maximum cable outside diameter.
- Designed specifically for unarmoured electrical cables.
- Durable brass construction for industrial cable installations.
- Compression-type sealing arrangement around the cable outer sheath.
- Suitable for installation through compatible electrical enclosure walls and gland plates.
- Supports secure cable routing and professional electrical cable management.
- Suitable for indoor and appropriately protected outdoor electrical installations.
- Designed for large-diameter industrial power and multicore cable applications.
Technical Specifications
- Manufacturer: Partex
- Series: A1/A2 Unarmoured Cable Glands
- Model: PXA2-75L
- Product type: Unarmoured cable gland
- Gland classification: A1/A2
- Gland material: Brass
- Thread type: Metric
- Thread size: M75
- Nominal metric thread diameter: 75 mm
- Suitable cable outside diameter: 60.5–67.0 mm
- Minimum cable outside diameter: 60.5 mm
- Maximum cable outside diameter: 67.0 mm
- Cable type: Unarmoured electrical cable
- Sealing method: Compression sealing around the cable outer sheath
- Mounting type: Threaded enclosure or gland plate entry
- Installation environment: Industrial electrical enclosures and equipment
- Application: Large-diameter unarmoured cable entry and mechanical retention
Reliable Cable Entry for Large Industrial Electrical Cables
Cable glands are essential components in industrial electrical installations, providing a secure interface between cables and the equipment they enter. The Partex PXA2-75L is designed for large unarmoured cables, using a compression sealing arrangement to help grip the cable outer sheath and maintain a secure connection at the enclosure entry point. Correct gland selection supports organised cable routing, reduces mechanical strain and helps protect electrical equipment from environmental exposure.
The Partex A1/A2 range is intended for electrical installers, panel manufacturers and industrial maintenance engineers who require dependable cable entry solutions. When selecting the PXA2-75L, the cable outside diameter must fall within the specified 60.5–67.0 mm range, and the enclosure must provide a compatible M75 threaded entry. Appropriate sealing accessories, tightening procedures and installation practices should be followed to achieve the required mechanical and environmental performance.
Typical Applications
- Industrial power distribution cabinets and electrical switchgear.
- Large unarmoured power cable entry into electrical enclosures.
- Industrial machinery and heavy-duty electrical equipment.
- Manufacturing plants and production facility electrical installations.
- Electrical distribution boards and large cable termination enclosures.
- Industrial control cabinets and power management systems.
- OEM machinery and industrial equipment manufacturing.
- Electrical maintenance, replacement and cable installation projects.
