Why Choose the Partex PXCW-32L CW Outdoor Cable Gland?
The Partex PXCW-32L is a professional CW outdoor brass armoured cable gland kit designed for secure termination and environmental sealing of steel wire armoured (SWA) electrical cables. Featuring an M32 metric entry thread, a 10 mm thread length and a specified cable diameter range of 26.3–33.5 mm, this gland provides a dependable solution for industrial electrical installations, outdoor power distribution equipment and commercial electrical systems.
Part of the Partex CW outdoor cable gland range, the PXCW-32L combines mechanical armour clamping with sealing around the cable outer sheath. This arrangement helps secure the cable at the enclosure entry point, supports electrical continuity through correctly terminated armour and provides protection against dust and water ingress. The gland range is specified to IP66 for outdoor use when correctly installed with suitable enclosure sealing arrangements.

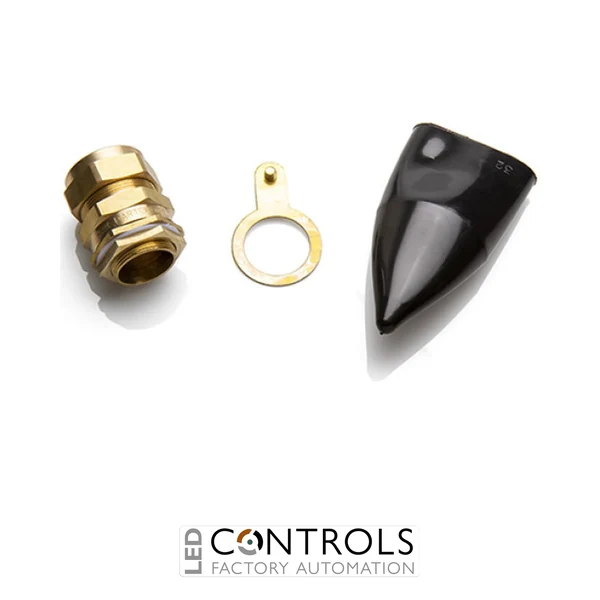

Supplied as a complete cable gland kit, the PXCW-32L includes one brass CW gland, a brass locknut, a PVC protective shroud and an earth tag with screw. Its robust construction and practical accessory package make it suitable for electrical contractors, industrial panel builders and maintenance engineers working with medium-to-large SWA cables.
Key Advantages
- Professional CW outdoor armoured cable gland kit for steel wire armoured electrical cables.
- M32 metric entry thread with a 10 mm thread length.
- Suitable for cables with an outside diameter of 26.3–33.5 mm.
- Durable brass construction for professional industrial cable termination.
- IP66 ingress protection for correctly installed outdoor applications.
- Mechanical armour clamping provides secure retention of steel wire armour.
- Outer sheath sealing helps protect electrical enclosures against dust and water ingress.
- Complete gland kit supplied with a brass locknut, PVC shroud and earth tag with screw.
- Supports suitable protective bonding arrangements through the included earth tag.
- Suitable for industrial power distribution, outdoor switchgear and electrical equipment installations.
Key Features
- Partex CW outdoor armoured cable gland series.
- PXCW-32L product code, large cable diameter variant within the M32 range.
- M32 metric threaded cable entry.
- 10 mm gland entry thread length.
- 26.3 mm minimum specified cable diameter.
- 33.5 mm maximum specified cable diameter.
- Designed for steel wire armoured (SWA) electrical cables.
- Robust brass gland body with mechanical armour clamping components.
- Compression sealing arrangement around the cable outer sheath.
- Brass locknut included for securing the gland to a compatible enclosure entry.
- PVC protective shroud included for covering the completed gland assembly.
- Earth tag with screw included for appropriate protective bonding arrangements.
- IP66 protection rating, subject to correct installation.
- Referenced against IEC/EN 62444:2010 and BS 6121 Part 1:1989.
- Pack quantity: 1 complete gland kit.
Technical Specifications
- Manufacturer: Partex
- Series: CW Outdoor Cable Gland Kits
- Product code: PXCW-32L
- Product type: Outdoor armoured cable gland kit
- Gland classification: CW
- Gland material: Brass
- Thread type: Metric
- Thread size: M32
- Thread length: 10 mm
- Specified cable diameter range: 26.3–33.5 mm
- Minimum cable diameter: 26.3 mm
- Maximum cable diameter: 33.5 mm
- Cable type: Steel wire armoured (SWA) cable
- Armour retention: Mechanical armour clamping
- Outer sheath sealing: Compression sealing arrangement
- Ingress protection: IP66, subject to correct installation
- Installation environment: Indoor and outdoor
- Referenced standards: IEC/EN 62444:2010 and BS 6121 Part 1:1989
- Included accessories: Brass locknut, PVC shroud and earth tag with screw
- Pack quantity: 1 complete gland kit
- Mounting type: Threaded enclosure or gland plate entry
- Application: SWA cable termination, armour retention and environmental sealing
Reliable IP66 Cable Termination for Outdoor Electrical Installations
Outdoor electrical installations require cable glands that provide both mechanical security and environmental sealing. The Partex PXCW-32L is designed to clamp the armour of steel wire armoured cables securely while sealing around the cable outer sheath. This helps maintain cable positioning, supports appropriate protective bonding and contributes to the environmental integrity of the enclosure entry point in applications exposed to dust, rain and water spray.
The Partex CW range is particularly suitable for electrical contractors, industrial engineers and panel builders installing SWA cables into outdoor electrical equipment. Unlike conventional BW indoor glands, CW outdoor glands incorporate outer sheath sealing for improved environmental protection. To achieve the specified IP66 rating, installers should verify that the cable diameter falls within the 26.3–33.5 mm range, prepare the armour correctly, tighten the gland according to the installation instructions and ensure that the enclosure entry is suitably sealed.
Typical Applications
- Outdoor electrical distribution boards and switchgear.
- Steel wire armoured cable termination in external electrical enclosures.
- Industrial machinery and outdoor electrical equipment.
- Commercial and industrial power distribution installations.
- External motor control equipment and industrial control panels.
- Manufacturing plants and outdoor plant electrical installations.
- Electrical junction boxes and weather-exposed cable termination enclosures.
- Maintenance and replacement of outdoor SWA cable gland assemblies.
