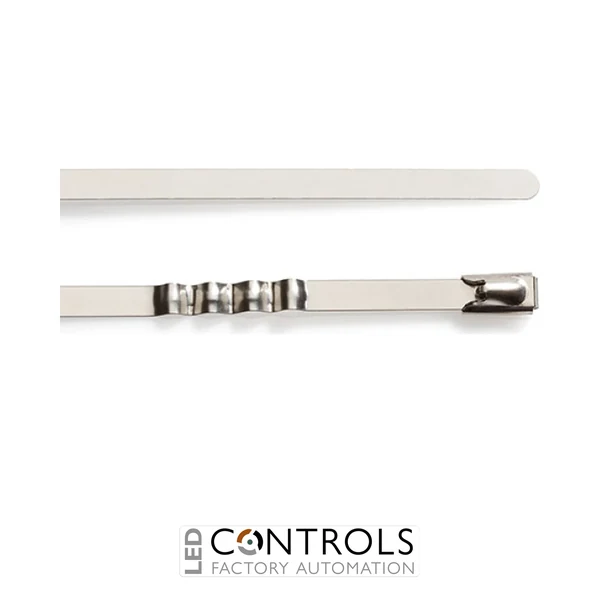

Why Choose the Partex SSTZ2316 Stainless Steel Spring Cable Tie?
The Partex SSTZ2316 is a durable, corrosion-resistant uncoated stainless steel spring cable tie designed for secure cable bundling, fastening and retention in demanding industrial environments. Manufactured from AISI 316 stainless steel, this cable tie combines excellent resistance to corrosion, chemicals and extreme temperatures with a specialised spring-form design that helps maintain tension around solid and non-resilient objects.
As part of the Partex stainless steel spring cable tie range, the SSTZ2316 features a self-locking roller-ball mechanism for fast and secure installation. Its fully enclosed locking head helps prevent dirt and grit from interfering with the locking mechanism, while smooth, rounded edges support safe handling and reduce the risk of damage to cable insulation.
Measuring 200 mm in length and 4.6 mm in width, the SSTZ2316 provides a minimum loop tensile strength of 667 N and accommodates bundle diameters up to 59 mm. Supplied in a convenient pack of 100, these uncoated stainless steel cable ties are suitable for electrical installations, industrial equipment, marine environments and applications requiring reliable fastening under challenging operating conditions.
Key Advantages
- Manufactured from AISI 316 stainless steel for excellent corrosion and chemical resistance.
- Spring-form construction helps maintain fastening tension around solid and non-resilient objects.
- 200 mm length and 4.6 mm width provide versatile cable bundling and fastening capability.
- 667 N minimum loop tensile strength for dependable mechanical retention.
- Self-locking roller-ball mechanism enables quick and secure installation.
- Uncoated stainless steel construction supports operation across a wide temperature range.
- Excellent resistance to UV exposure, moisture, salt and industrial chemicals.
- Fully enclosed locking head helps protect the locking mechanism from contamination.
- Supplied in a pack of 100 cable ties for installation and maintenance work.
Key Features
- Partex SSTZ stainless steel spring cable tie series.
- AISI 316 stainless steel material.
- 200 mm overall length.
- 4.6 mm nominal width.
- 0.25 mm material thickness.
- 59 mm maximum bundle diameter.
- 667 N minimum loop tensile strength.
- Spring-form profile designed to maintain tension on non-resilient objects.
- Self-locking roller-ball fastening system.
- Uncoated metallic finish without an additional polymer coating.
- Operating temperature range of −80 to +500 °C.
- UV-resistant, halogen-free and flameproof stainless steel construction.
- Compatible with suitable Partex stainless steel cable tie installation tools, including SSTG and SSAT.
- Pack quantity: 100 pieces.
Technical Specifications
- Manufacturer: Partex
- Series: SSTZ Stainless Steel Spring Cable Ties
- Model: SSTZ2316
- Product type: Stainless steel spring cable tie
- Material: AISI 316 stainless steel
- Coating: Uncoated
- Finish: Natural stainless steel
- Length: 200 mm
- Width: 4.6 mm
- Thickness: 0.25 mm
- Maximum bundle diameter: 59 mm
- Minimum loop tensile strength: 667 N
- Operating temperature range: −80 to +500 °C
- Locking mechanism: Self-locking roller-ball
- Construction: Spring-form stainless steel strip
- Locking head: Fully enclosed
- Corrosion resistance: Resistant to salt, moisture and many industrial chemicals
- UV resistance: UV resistant
- Halogen content: Halogen-free
- Installation: Manual tensioning with suitable stainless steel cable tie tools
- Compatible installation tools: Partex SSTG and SSAT
- Packaging: Pack of 100
Reliable Stainless Steel Fastening for Demanding Environments
Stainless steel cable ties provide a durable alternative to conventional plastic cable ties in applications exposed to high temperatures, ultraviolet radiation, corrosive substances and mechanical stress. The Partex SSTZ2316 uses corrosion-resistant AISI 316 stainless steel to deliver dependable fastening performance in industrial, marine and outdoor environments where conventional polymer cable ties may be unsuitable.
Unlike standard flat stainless steel cable ties, the SSTZ2316 incorporates a spring-form profile designed to maintain greater installed tension around solid and non-resilient objects. This makes it particularly useful for securing cables, conduits, pipes and equipment where a consistent mechanical hold is required. Its self-locking roller-ball mechanism simplifies installation, while the enclosed locking head and rounded edges improve reliability and handling during cable management work.
Typical Applications
- Industrial electrical cable bundling and cable management.
- Securing cables and wiring harnesses in machinery and control installations.
- Marine and offshore electrical installations exposed to salt and moisture.
- Petrochemical, chemical processing and industrial plant environments.
- Fastening cables and conduits to rigid structures.
- High-temperature installations where conventional plastic cable ties are unsuitable.
- Outdoor electrical infrastructure and telecommunications equipment.
- Industrial pipework, tubing and mechanical fastening applications.
- Manufacturing machinery and automation equipment.
- Maintenance, repair and installation work requiring corrosion-resistant fastening.
