Why Choose the Partex PVMC4K 1000 V DC Solar Connector Kit?

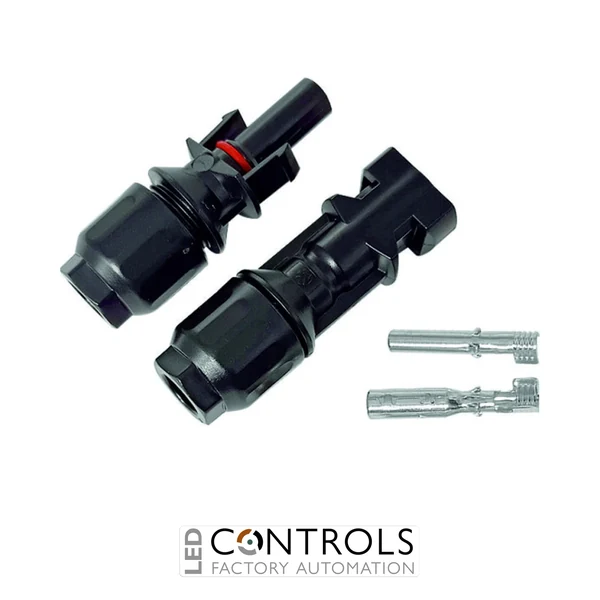

The Partex PVMC4K is a reliable 1000 V DC photovoltaic solar connector kit comprising a complete male and female connector pair for secure electrical connections in solar power installations. Designed for photovoltaic (PV) systems, these connectors provide a practical solution for connecting solar panels, DC cables and associated solar power equipment.
The PVMC4K features robust, impact-resistant and UV-resistant connector housings suitable for demanding outdoor environments. Its secure crimp connection provides dependable electrical contact, while the IP68 protection rating when correctly assembled and mated helps protect connections against dust and water ingress. The connector design supports efficient installation and maintenance of photovoltaic systems.
With a rated voltage of 1000 V DC, a rated current of 30 A and compatibility with 2.5–6.0 mm² solar cables, the Partex PVMC4K is suitable for residential, commercial and industrial solar installations. Supplied as one complete male and female connector pair, it provides a convenient connection solution for photovoltaic modules, solar inverters and DC string wiring.
Key Advantages
- Complete male and female solar connector kit for photovoltaic installations.
- 1000 V DC rated voltage suitable for compatible solar power systems.
- 30 A current rating for photovoltaic DC connections.
- IP68 protection when correctly mated provides resistance to dust and water ingress.
- UV-resistant and impact-resistant housing designed for outdoor installations.
- Compatible with 2.5–6.0 mm² solar cables for flexible installation.
- Secure crimp connection supports reliable electrical performance.
- Suitable for residential, commercial and industrial photovoltaic applications.
Key Features
- Partex PVMC4 photovoltaic connector range.
- 1000 V DC maximum rated voltage.
- 30 A rated current.
- Male and female connector pair supplied as one complete kit.
- 2.5–6.0 mm² cable compatibility.
- IP68 ingress protection in the correctly assembled and mated condition.
- Operating temperature range of -40 °C to +85 °C.
- Contact resistance of ≤0.25 mΩ.
- Robust, impact-resistant connector construction.
- UV-resistant housing for outdoor photovoltaic environments.
- Crimp termination for secure cable connections.
- Designed for photovoltaic modules, inverters and solar power installations.
Technical Specifications
- Manufacturer: Partex
- Series: PVMC4 Solar Connectors
- Model: PVMC4K
- Product type: Photovoltaic DC solar connector kit
- Connector configuration: Male and female pair
- Rated voltage: 1000 V DC
- Rated current: 30 A
- Compatible cable cross-section: 2.5–6.0 mm²
- Protection rating: IP68 (when correctly assembled and mated)
- Operating temperature: -40 °C to +85 °C
- Contact resistance: ≤0.25 mΩ
- Termination method: Crimp connection
- Housing properties: UV-resistant and impact-resistant
- Application: Photovoltaic DC cable connections
- Pack quantity: 1 complete male and female connector set
Reliable DC Connections for Photovoltaic Solar Systems
Photovoltaic installations require secure electrical connections capable of operating under continuous DC voltage and exposure to changing environmental conditions. The Partex PVMC4K 1000 V DC solar connector kit is designed to provide dependable connections between compatible photovoltaic cables and equipment, supporting efficient transmission of electrical power from solar modules through the DC side of a solar installation.
The PVMC4 connector design combines secure crimp termination, UV-resistant construction and IP68 protection when mated to support reliable operation in outdoor solar environments. Correct cable preparation, approved crimp tooling and proper connector assembly are essential for maintaining electrical performance and environmental protection. Installers should verify connector compatibility and avoid mating unverified connector types or manufacturers.
Typical Applications
- Residential rooftop photovoltaic solar installations.
- Commercial solar panel arrays and PV generation systems.
- Industrial photovoltaic power installations.
- Solar module DC cable connections.
- Photovoltaic string wiring and cable extensions.
- Compatible DC connections between solar arrays and inverters.
- Solar power system installation and maintenance.
- Outdoor photovoltaic electrical connection assemblies.
