Why Choose the Partex SUP12BLACK Supaflex Braided Sleeving?

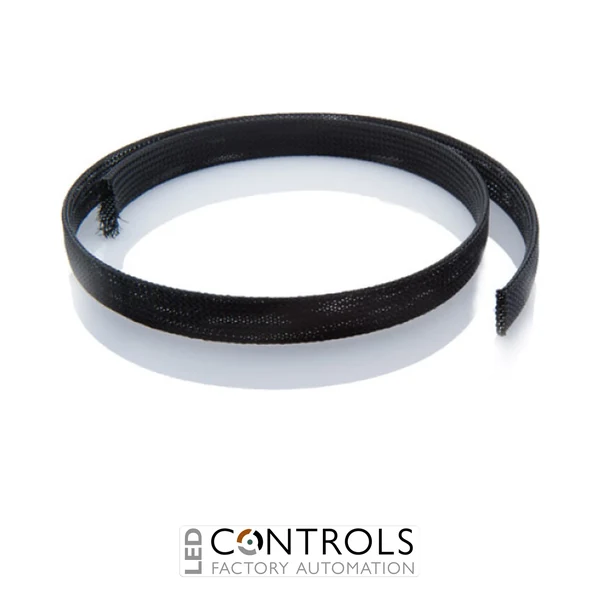

The Partex SUP12BLACK is a flexible and durable black expandable polyester braided sleeving designed to protect, organise and secure electrical cables, wiring harnesses and hoses in industrial and commercial installations. As part of the Partex Supaflex braided cable sleeving series, it provides an effective cable management solution for control panels, industrial machinery, automation systems and electrical equipment.
Manufactured from high-quality polyester, the Supaflex sleeving features an expandable woven construction that adapts to different cable bundle diameters while providing protection against abrasion and mechanical wear. Its open braided structure allows individual wires to branch out along the cable assembly, making it particularly useful for complex wiring harnesses and electrical installations.
With a 12 mm nominal diameter and an expandable diameter range specified for this product as 10–18 mm, the SUP12BLACK accommodates a variety of cable bundles and wiring configurations. The Supaflex series offers a -55 °C to +150 °C operating temperature range, low-smoke zero-halogen construction and excellent resistance to ultraviolet exposure, making it suitable for demanding indoor and outdoor applications.
Key Advantages
- Flexible expandable polyester braided sleeving for protecting and organising electrical cables.
- 12 mm nominal diameter with an expandable construction suitable for different cable bundle sizes.
- 10–18 mm specified size range for versatile cable management applications.
- Low-smoke, zero-halogen material suitable for installations where reduced smoke and halogen emissions are important.
- Operating temperature range of -55 °C to +150 °C for demanding electrical and industrial environments.
- UV-stable and weather-resistant construction suitable for appropriate outdoor installations.
- Expandable woven structure allows cables to branch out through the sleeving without cutting separate openings.
- Lightweight and flexible design simplifies cable routing and installation around wiring harnesses.
Key Features
- Partex Supaflex braided sleeving series.
- 12 mm nominal diameter.
- 10–18 mm specified cable bundle size range.
- Black polyester braided construction.
- Expandable woven design for flexible cable protection.
- Low-smoke, zero-halogen (LSZH) material.
- Self-extinguishing to UL224 VW-1 as specified for the Supaflex series.
- -55 °C to +150 °C working temperature range.
- 230 °C polyester melting point.
- Weather-resistant and UV-stable construction.
- Open braided structure allows cable breakout along the sleeving.
- Can be cut to the required length using a hot knife to seal the ends and reduce fraying.
Technical Specifications
- Manufacturer: Partex
- Series: Supaflex Braided Sleeving
- Model: SUP12BLACK
- Product type: Expandable braided cable sleeving
- Material: Polyester
- Colour: Black
- Nominal diameter: 12 mm
- Specified size range: 10–18 mm
- Manufacturer's SUP12 series expansion range: 8–17 mm
- Operating temperature: -55 °C to +150 °C
- Melting point: 230 °C
- Flame performance: Self-extinguishing to UL224 VW-1
- Halogen content: Zero halogen
- Smoke characteristics: Low smoke
- UV resistance: UV stable
- Weather resistance: Weather-resistant construction
- Construction: Flexible expandable woven braid
- Installation method: Slide over cable bundles or wiring harnesses
- Cutting method: Hot knife or suitable heated cutting tool recommended
Reliable Cable Protection for Industrial Wiring and Automation
Expandable braided sleeving such as the Partex SUP12BLACK provides an effective method of protecting and organising cables without restricting their flexibility. The polyester braid expands to accommodate cable bundles and contracts around them, helping maintain a tidy installation while reducing exposure to abrasion and mechanical wear.
The Supaflex series is particularly suitable for electrical control panels, machine wiring and industrial automation systems where cables may need to branch out at different points along a wiring harness. Its low-smoke, zero-halogen construction, UV stability and wide operating temperature range make it a versatile cable protection solution for industrial and commercial electrical installations. For best results, the sleeving should be cut using a hot knife or soldering iron to seal the polyester fibres and prevent fraying.
Typical Applications
- Industrial electrical control panels and automation cabinets.
- Machine wiring and industrial cable harnesses.
- Electrical cable protection and cable management systems.
- Automotive wiring looms and vehicle electrical assemblies.
- Telecommunications and data cabling installations.
- Marine electrical equipment and cable routing.
- Industrial machinery and manufacturing equipment.
- Protecting hoses, wiring bundles and cable connections.
- Electrical installations requiring low-smoke, zero-halogen cable protection.
- OEM equipment manufacturing and electrical assembly applications.
