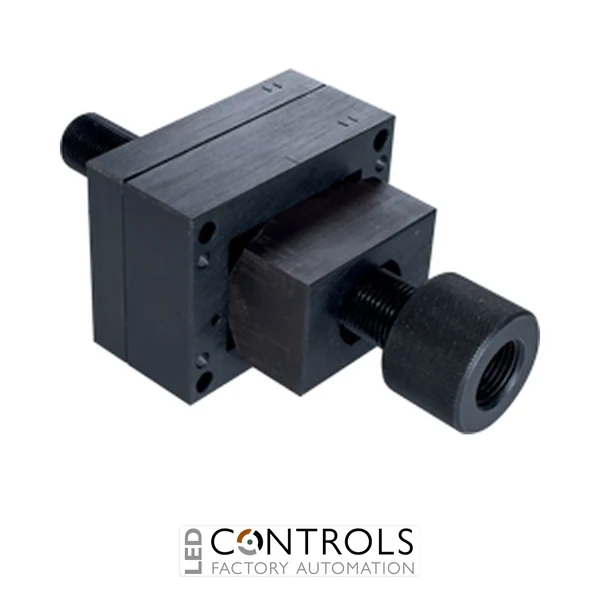

ILME CCWPD16 punching die for producing precise Size 77.27 panel cut-outs for heavy-duty industrial connector housings.
£706.39
The ILME CCWPD16 is a precision-engineered punching die designed to produce accurate panel cut-outs for ILME Size 77.27 heavy-duty connector housings. Developed for professional electrical panel builders, OEM manufacturers and automation engineers, it enables fast, repeatable and burr-free cut-outs for industrial control panels and electrical enclosures.
Designed for use with compatible ILME hydraulic punching tools, the CCWPD16 provides a faster and more precise alternative to manual cutting methods. Its hardened steel construction ensures excellent durability and long service life, making it ideal for demanding industrial manufacturing and maintenance environments.
Whether assembling new automation equipment or modifying existing electrical cabinets, the ILME CCWPD16 delivers the precision required for professional installation of Size 77.27 heavy-duty rectangular connectors while maintaining a clean, factory-quality finish.
The ILME CCWPD16 enables installers to produce highly accurate rectangular cut-outs that ensure heavy-duty connector housings fit securely and consistently. Precision punching reduces installation time while eliminating the inaccuracies associated with manual drilling and cutting.
Trusted by panel builders, machine manufacturers and industrial electricians worldwide, ILME punching tools deliver dependable performance for demanding industrial electrical installations requiring professional-quality panel preparation.
| Product type | Punching die |
|---|---|
| Application | Panel cut-outs for ILME Size 77.27 connector housings |
| Compatible tooling | ILME hydraulic punching tool |
| Connector size | 77.27 |
| Construction | Hardened steel |
| Operation | Hydraulic punching |
| Approximate weight | 3.45 kg |
| HS Code | 84678900 |
| Country of Manufacture | Italy |
It is a punching die designed to create accurate panel cut-outs for ILME Size 77.27 heavy-duty connector housings.
The CCWPD16 is specifically designed for Size 77.27 connector housing cut-outs.
The die is designed for use with compatible ILME hydraulic punching tools.
It is intended for punching metal electrical enclosures and industrial control panels when used with the appropriate hydraulic punching equipment.
It is widely used by panel builders, OEM manufacturers and industrial electricians for preparing enclosures for heavy-duty industrial connectors.
ILME punching tools and accessories are trusted by industrial automation professionals for producing precise connector cut-outs, improving installation quality and ensuring reliable heavy-duty connector mounting.
