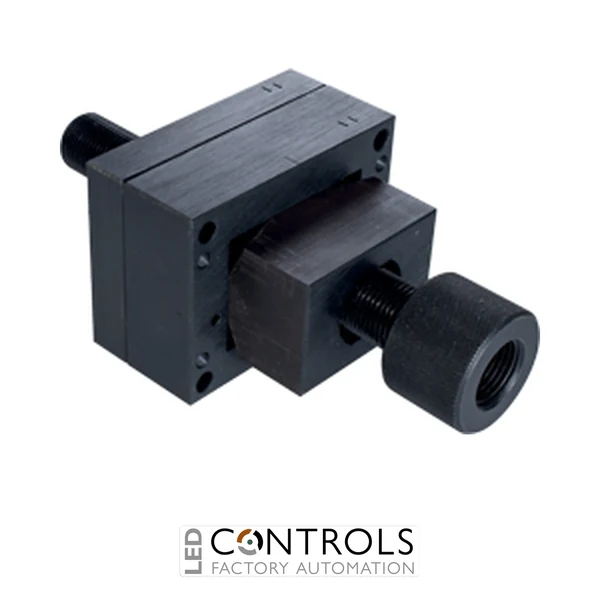

ILME CCWPD24 punching die designed for producing precise Size 104.27 panel cut-outs for heavy-duty industrial connector housings.
£833.71
The ILME CCWPD24 is a professional-grade punching die designed to produce accurate panel cut-outs for ILME Size 104.27 heavy-duty connector housings. Engineered for industrial panel builders, OEM machine manufacturers and automation professionals, it delivers precise, repeatable cut-outs that ensure reliable installation of heavy-duty rectangular connectors.
Designed for use with compatible ILME hydraulic punching tools, the CCWPD24 creates clean, burr-free panel openings while significantly reducing installation time compared with conventional drilling or manual cutting methods. Its hardened steel construction provides exceptional durability for demanding industrial environments.
Whether manufacturing new electrical control panels or modifying existing enclosures, the ILME CCWPD24 delivers the precision and consistency required for professional installation of Size 104.27 heavy-duty connector housings.
The ILME CCWPD24 enables installers to produce highly accurate rectangular cut-outs that ensure heavy-duty connector housings fit securely and consistently. Precision punching reduces installation time while eliminating inaccuracies associated with manual cutting methods.
Trusted by panel builders, machine manufacturers and industrial electricians, ILME punching dies provide dependable performance for professional electrical installations where precision and repeatability are essential.
| Product type | Punching die |
|---|---|
| Application | Panel cut-outs for ILME Size 104.27 connector housings |
| Compatible tooling | ILME hydraulic punching tool (CCWCT) |
| Connector size | 104.27 |
| Construction | Hardened steel |
| Operation | Hydraulic punching |
| Approximate weight | 3.9 kg |
| HS Code | 84678900 |
| Country of Manufacture | Italy |
It is a punching die designed to produce accurate panel cut-outs for ILME Size 104.27 heavy-duty connector housings.
The CCWPD24 is specifically designed for Size 104.27 connector housing cut-outs.
The die is designed for use with compatible ILME CCWCT hydraulic punching tools.
When used with the appropriate hydraulic punching equipment, it is suitable for punching metal electrical enclosures and industrial control panels.
It is widely used by panel builders, OEM manufacturers and industrial electricians for preparing enclosures for heavy-duty industrial connectors.
ILME punching tools and accessories are trusted by industrial automation professionals for producing precise connector cut-outs, improving installation quality and ensuring reliable heavy-duty connector mounting.
