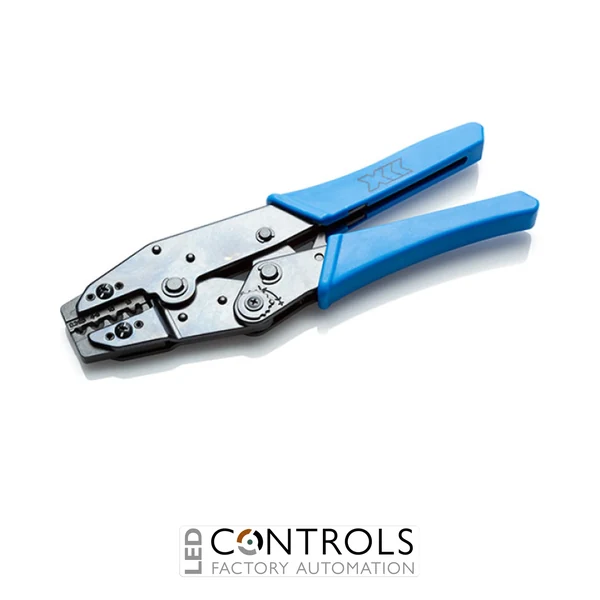

Why Choose the Partex CT1.5-16 Copper Tube Terminal Crimp Tool?
The Partex CT1.5-16 is a precision manual ratchet crimping tool designed for secure and consistent compression of standard copper tube electrical terminals. Featuring a 1.5–16 mm² crimping capacity, this professional hand tool is ideal for electrical installers, control panel builders, maintenance engineers and industrial wiring specialists who require dependable cable termination.
The CT1.5-16 features a four-jaw crimping mechanism combined with a ratchet system that provides a controlled crimping cycle. Its high-precision jaws help deliver consistent compression of compatible copper tube terminals, supporting reliable electrical and mechanical connections. The tool is suitable for frequent crimping of terminals up to 6 mm² and occasional crimping of terminals up to 16 mm².
Manufactured with SCM440 carbon steel jaws, an S45C steel frame and ergonomic polypropylene handle grips, the Partex CT1.5-16 combines durability with comfortable manual operation. Measuring 225 mm in length and weighing approximately 0.55 kg, it provides a practical, portable solution for electrical cable preparation and copper tube terminal installation.
Key Advantages
- Professional copper tube terminal crimping tool for electrical installation applications.
- 1.5–16 mm² crimping range accommodates multiple standard copper tube terminal sizes.
- Four-jaw precision crimping mechanism provides controlled terminal compression.
- Integrated ratchet mechanism supports a complete and consistent crimping cycle.
- Suitable for frequent use up to 6 mm² and occasional use up to 16 mm².
- Replaceable high-precision jaws help extend the service life of the tool.
- Durable SCM440 carbon steel jaw construction provides mechanical strength.
- Robust S45C steel frame supports reliable hand-operated crimping.
- Ergonomically designed polypropylene handles help reduce operator fatigue.
- Compact 225 mm overall length for convenient handling and storage.
- Manual operation requires no batteries, compressed air or external power supply.
Key Features
- Partex CT1.5-16 copper tube terminal crimping tool.
- 1.5–16 mm² nominal terminal crimping capacity.
- Manual hand-operated crimping mechanism.
- Four-jaw high-precision crimping head.
- Ratchet-controlled mechanism for a complete crimping cycle.
- Suitable for standard copper tube electrical terminals.
- Recommended for regular use with terminals up to 6 mm².
- Suitable for occasional crimping of terminals up to 16 mm².
- Replaceable precision jaw assembly.
- SCM440 carbon steel jaw set.
- S45C steel tool frame.
- Ergonomic polypropylene handle grips.
- 225 mm overall tool length.
- Approximately 0.55 kg tool weight.
- Designed to meet the compression ratio requirements of BS EN 60352-2:2006 and BS EN 61238-1:2003.
- Calibration certificate version available under the separate model reference CT1.5-16CAL.
Reliable Copper Tube Terminal Crimping for Electrical Installations
Copper tube terminal crimping is an important part of electrical cable termination, creating a secure mechanical connection between a conductor and its terminal barrel. The Partex CT1.5-16 uses a four-jaw compression mechanism to apply controlled pressure to compatible copper tube terminals, helping produce consistent crimps when used with correctly selected conductors and terminals.
The integrated ratchet mechanism supports completion of the crimping cycle, while the replaceable high-precision jaws help maintain long-term usability. Designed for standard copper tube terminals from 1.5–16 mm², the CT1.5-16 is particularly suitable for repeated smaller-terminal installations up to 6 mm². Its durable steel construction and ergonomic grips make it a practical tool for switchboard wiring, control panel assembly, industrial equipment maintenance and professional electrical installation.
Typical Applications
- Crimping standard copper tube ring terminals.
- Electrical control panel and switchboard assembly.
- Industrial machinery wiring and cable termination.
- Low-voltage electrical distribution equipment.
- Electrical maintenance and repair work.
- Motor control panel and automation equipment wiring.
- Power and control cable termination.
- Commercial and industrial electrical installations.
- Electrical workshop and cable assembly operations.
- OEM equipment manufacturing and panel building.
- Routine crimping of copper tube terminals up to 6 mm².
- Occasional termination of compatible copper tube terminals up to 16 mm².
