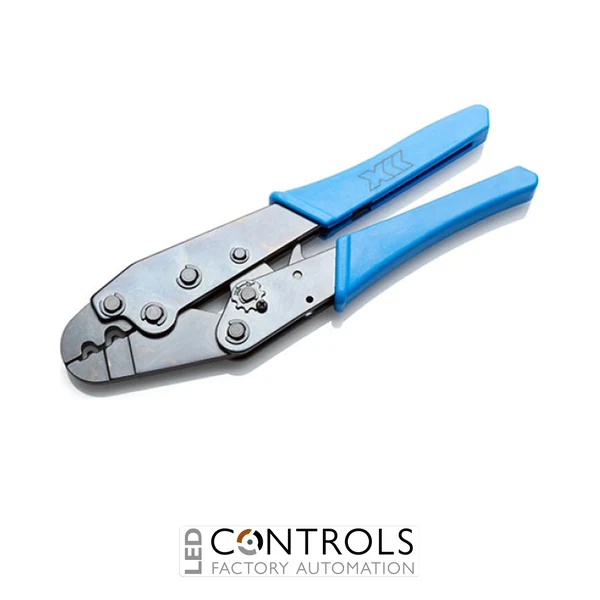

Why Choose the Partex CT10-16 Copper Tube Terminal Crimp Tool?
The Partex CT10-16 is a specialist copper tube terminal crimp tool for 10–16 mm² cable terminations, designed to help electrical installers produce secure and reliable compression connections. Intended for use with compatible copper tube terminals and connectors, this crimping tool provides a practical solution for professional electrical installation, control panel assembly, equipment maintenance and cable termination work.
Correct crimping is essential when terminating copper conductors with tubular cable lugs and connectors. The Partex CT10-16 crimp tool is intended to apply controlled mechanical compression to a compatible terminal barrel, helping establish dependable electrical contact and conductor retention. Using tooling matched to the conductor size and terminal design reduces the risk of poor-quality crimps caused by unsuitable or incorrectly sized equipment.
Designed for the 10 mm² to 16 mm² conductor size range, the CT10-16 is a useful addition to the toolkit of electrical contractors, panel builders, maintenance technicians and industrial electricians. It is particularly suitable for installations involving compatible copper tube ring terminals, cable lugs and butt connectors where a properly formed crimp connection is required.
Key Advantages
- Dedicated copper tube terminal crimp tool for professional electrical cable termination.
- Designed for the 10–16 mm² conductor size range.
- Helps create secure compression connections with compatible copper tube terminals.
- Supports consistent cable termination when used with the correct terminal and conductor combination.
- Suitable for compatible copper tube ring terminals and in-line connectors.
- Helps improve electrical connection quality compared with using unsuitable general-purpose tools.
- Practical for electrical installation, control panel building and industrial maintenance.
- Useful for both new electrical assemblies and cable termination repairs.
- Supports professional installation practices and reliable conductor retention.
- Partex tooling for use with appropriately matched copper tube termination products.
Key Features
- Partex CT10-16 copper tube terminal crimp tool.
- Nominal crimping range: 10–16 mm².
- Designed for compatible copper tube electrical terminals.
- Suitable for compression crimp termination applications.
- Intended for use with correctly prepared copper conductors.
- Supports secure mechanical and electrical connections when correctly used.
- Useful for compatible copper tube ring terminals and butt connectors.
- Dedicated electrical cable termination tooling.
- Suitable for professional electrical installation and maintenance tasks.
- Practical for switchgear, control panel and equipment wiring applications.
- Designed for use with terminal and conductor combinations approved for the tool.
- Manufacturer part number: CT10-16.
Reliable Copper Tube Terminal Crimping for Professional Electrical Installations
The quality of a crimped electrical connection depends on the correct combination of conductor, terminal and crimping tool. The Partex CT10-16 is intended for copper tube terminal applications within its stated 10–16 mm² size range, helping installers create compression connections suitable for professional electrical work. Correctly formed crimps help establish electrical contact between the conductor strands and terminal barrel while providing mechanical retention.
Copper tube terminals are commonly used to connect cables to bolted electrical equipment terminals, busbars and distribution components. Compatible butt connectors are also used to join conductors in-line. When working with these products, the crimping tool must match the terminal barrel dimensions and conductor construction. The CT10-16 should only be used with terminal combinations confirmed as compatible by the manufacturer.
For a dependable termination, the conductor should be stripped to the appropriate length without damaging its strands. The prepared cable is then inserted fully into the compatible terminal barrel before the crimp is made at the specified position. Installers should follow the terminal and tool manufacturer's instructions for the correct crimping procedure, including any required die selection, crimp location and inspection criteria.
After crimping, the finished connection should be visually inspected for correct conductor insertion, crimp formation and mechanical security. Where required, suitable insulation or protective sleeving should be applied to exposed conductive parts. The completed electrical connection must be appropriate for the circuit current, operating voltage and environmental conditions. Crimping tools should not be used on live electrical conductors, and the CT10-16 should not be assumed to provide electrical insulation or live-working protection.
Typical Applications
- Crimping compatible 10 mm² copper tube terminals.
- Crimping compatible 16 mm² copper tube terminals.
- Electrical control panel assembly and wiring.
- Industrial switchgear and electrical distribution equipment installation.
- Compatible copper tube ring terminal installation.
- Compatible copper tube butt connector termination.
- Industrial machinery wiring and equipment maintenance.
- Electrical cable repairs and replacement terminations.
- OEM electrical equipment assembly and workshop applications.
- Professional electrical installation tasks requiring correctly matched copper tube terminal crimping equipment.
