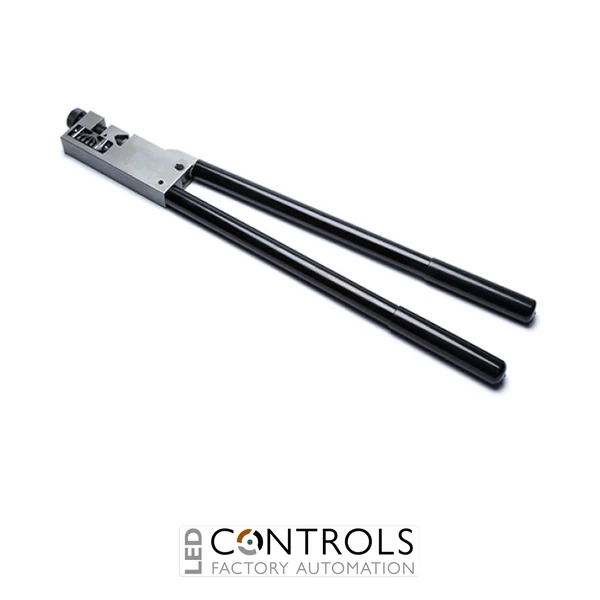

Why Choose the Partex CT120I-CAL Copper Tube Terminal Crimp Tool with Calibration Certificate?
The Partex CT120I-CAL is a professional heavy-duty manual copper tube terminal crimping tool supplied with a calibration certificate, designed for secure and consistent termination of large copper conductors. With a 16–120 mm² crimping capacity, this calibrated tool is suitable for industrial electrical installations, power distribution systems, switchgear assembly and electrical cable termination applications where documented tooling performance is important.
Based on the Partex CT120I indent crimping tool, the CT120I-CAL is designed for use with Partex COL and PXL copper tube terminals. Its manually adjustable indent crimping mechanism allows the operator to select the appropriate crimp size for different conductor cross-sections. The supplied calibration certificate provides documentation of the tool's calibration, supporting quality assurance, inspection and maintenance procedures.
Featuring SCM440 carbon steel crimping jaws, long tubular steel handles and comfortable PVC grips, the CT120I-CAL combines mechanical durability with effective leverage for heavy-duty crimping. With an overall length of 645 mm and a tool weight of approximately 3.5 kg, it offers a practical solution for electrical contractors, panel builders and industrial maintenance engineers requiring a calibrated copper tube terminal crimping tool.
Key Advantages
- Professional copper tube terminal crimping tool supplied with a calibration certificate.
- 16–120 mm² crimping capacity for a wide range of industrial copper cable terminations.
- Indent crimping mechanism provides controlled compression of compatible copper tube terminals.
- Manual screw adjustment enables convenient selection of the required crimp size.
- Compatible with Partex COL and PXL copper tube terminals.
- Supplied with calibration documentation to support quality assurance and tooling records.
- Durable SCM440 carbon steel jaws provide strength for heavy-duty crimping applications.
- Long tubular steel handles deliver mechanical leverage while helping reduce tool weight.
- PVC handle grips support secure and comfortable manual operation.
- No batteries, hydraulic pumps or external electrical power supply required.
- Designed to meet the compression ratio requirements of BS EN 61238-1:2003.
- Suitable for professional installations where documented tool calibration is required.
Key Features
- Partex CT120I-CAL calibrated copper tube terminal crimping tool.
- 16–120 mm² nominal conductor crimping range.
- Calibration certificate included.
- Based on the Partex CT120I heavy-duty manual crimping tool.
- Manual indent crimping mechanism.
- Screw-adjustable crimp size selection.
- Designed for Partex COL copper tube terminals.
- Designed for Partex PXL copper tube terminals.
- SCM440 carbon steel crimping jaw set.
- Long tubular steel handles for increased mechanical leverage.
- PVC handle grips for comfortable handling.
- 645 mm overall tool length.
- Approximately 3.5 kg tool weight.
- Hand-operated design for workshop and on-site installations.
- Designed to meet BS EN 61238-1:2003 compression ratio requirements.
- Calibration documentation supports inspection and quality management procedures.
Reliable Copper Tube Terminal Crimping with Documented Calibration
Correct crimping is essential for establishing secure electrical and mechanical connections between copper conductors and their terminals. The Partex CT120I-CAL uses an adjustable indent crimping mechanism to compress compatible copper tube terminal barrels around conductors from 16–120 mm². The manually selected crimp setting enables the tool to accommodate different terminal sizes while the long handles provide the leverage required for heavy-duty compression.
The inclusion of a calibration certificate distinguishes the CT120I-CAL from the standard CT120I model. Calibration documentation helps electrical contractors, switchboard manufacturers and maintenance teams maintain records of tooling performance as part of their inspection and quality assurance processes. Combined with durable SCM440 steel jaws, tubular steel handles and compatibility with Partex COL and PXL terminals, the CT120I-CAL provides a practical solution for professional electrical installations where repeatable crimping and documented tool verification are important.
Typical Applications
- Crimping Partex COL copper tube ring terminals.
- Crimping compatible Partex PXL copper tube terminals.
- Industrial low-voltage power distribution installations.
- Electrical switchgear and switchboard manufacturing.
- Heavy-duty copper power cable termination.
- Busbar and electrical distribution equipment connections.
- Motor control centres and industrial electrical panels.
- Generator and power distribution equipment wiring.
- Industrial machinery power cable installations.
- Electrical panel building and cable assembly workshops.
- Maintenance operations requiring calibrated crimping equipment.
- Quality-controlled electrical installation and inspection procedures.
- Industrial electrical projects requiring calibration documentation.
