Why Choose the Partex PHCT240KIT-COL Hydraulic Crimp Tool?
The Partex PHCT240KIT-COL is a professional heavy-duty hydraulic crimping tool kit designed for secure and consistent compression of Partex COL copper tube terminals from 10 mm² to 240 mm². Developed for electrical installers, panel builders and industrial maintenance engineers, this hand-operated hydraulic crimper delivers a maximum output force of 5.2 tonnes, making it suitable for terminating a wide range of copper conductors in demanding electrical applications.
As part of the Partex hydraulic copper tube terminal crimping range, the PHCT240KIT-COL features a two-stage hydraulic system that provides rapid ram advancement at low pressure before delivering the compression force required for crimping. This helps reduce the number of pumping cycles needed during operation. Its 180° rotating crimp head improves accessibility and handling when working in confined electrical installation environments.

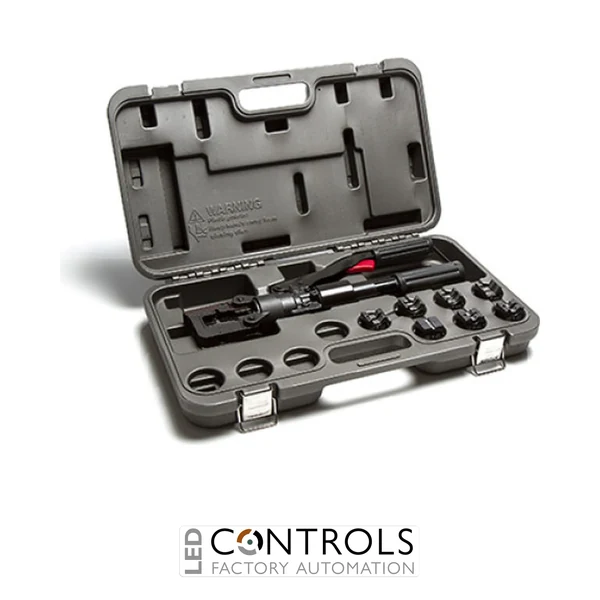

Supplied complete with seven interchangeable hexagonal crimping die sets and a robust, impact-resistant carrying case, the PHCT240KIT-COL provides a versatile solution for professional copper cable termination. The included dies cover conductor cross-sections from 10 mm² to 240 mm² and are specifically selected for compatibility with the Partex COL copper tube terminal range.
Key Advantages
- Professional hydraulic crimping tool designed for Partex COL copper tube terminals.
- 10–240 mm² crimping capacity covers a broad range of copper conductor sizes.
- 5.2 tonnes maximum output force provides powerful terminal compression.
- Two-stage hydraulic operation reduces pumping effort and improves working efficiency.
- Seven interchangeable hexagonal die sets supplied for multiple conductor sizes.
- 180° rotating crimp head improves accessibility in restricted working spaces.
- 550 bar maximum hydraulic pressure supports demanding crimping applications.
- Supplied in a robust, impact-resistant carrying case for convenient transport and storage.
- Designed to meet the compression ratio requirements of BS EN 61238-1:2003.
Key Features
- Partex PHCT240KIT-COL hydraulic crimping kit.
- Hand-operated hydraulic crimping mechanism for copper tube terminals.
- Crimping range: 10–240 mm².
- Maximum output force: 5.2 tonnes.
- Maximum hydraulic pressure: 550 bar.
- Two-stage hydraulic pump for rapid advancement and powerful compression.
- 180° rotating crimp head for flexible positioning.
- Seven interchangeable hexagonal die sets: 10/16, 25/35, 50/70, 95/120, 150, 185 and 240 mm².
- 10–15 mm ram stroke.
- COL-specific crimping dies supplied as part of the kit.
- Impact-resistant carrying case included.
- Suitable for professional electrical cable termination and maintenance work.
Reliable Hydraulic Crimping for Copper Cable Terminations
Hydraulic crimping tools are widely used for creating secure mechanical and electrical connections between copper conductors and compression terminals. The Partex PHCT240KIT-COL applies controlled compression through interchangeable hexagonal dies, helping produce consistent crimps when the correct die, conductor and terminal combination is selected.
The tool's two-stage hydraulic mechanism enables rapid initial movement of the crimping ram before applying the higher pressure needed to compress the terminal. Combined with its 180° rotating head, this design supports efficient operation in electrical workshops, control panel manufacturing facilities and on-site installation environments. The supplied COL-specific dies allow technicians to work across a wide range of copper conductor sizes without requiring separate crimping tools for each terminal size.
Typical Applications
- Crimping Partex COL copper tube cable terminals.
- Industrial electrical cable termination and installation.
- Low-voltage switchgear and distribution panel assembly.
- Electrical control panel manufacturing and maintenance.
- Power distribution and industrial cable connection work.
- Machine building and OEM electrical equipment assembly.
- Electrical infrastructure installation and refurbishment.
- Industrial plant maintenance and cable replacement.
- Workshop preparation of copper cable lugs and terminals.
- Commercial and industrial electrical contracting.
