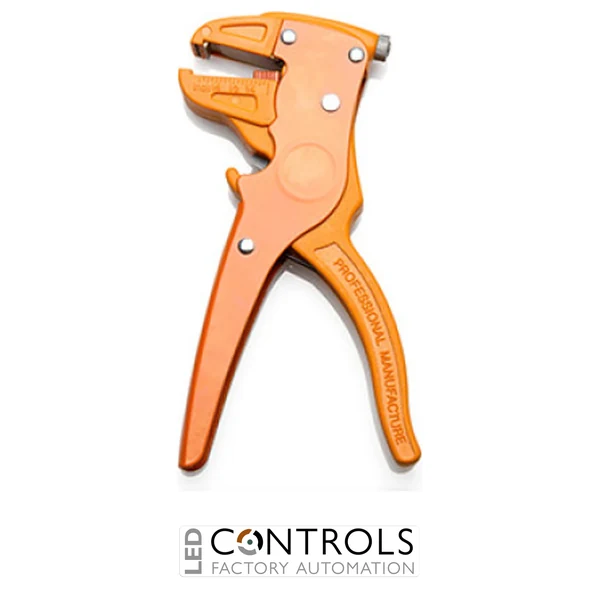

Why Choose the Partex PWS-GUN1 Automatic Wire Stripper and Cutter?
The Partex PWS-GUN1 is a versatile and durable self-adjusting automatic wire stripper and cutter designed for efficient preparation of electrical wires and cables in industrial, commercial and domestic electrical installations. As part of the Partex PWS wire stripping tool range, it combines automatic insulation stripping and integrated wire cutting in a convenient handheld tool, making it ideal for electricians, control panel builders and industrial maintenance engineers.
Featuring a self-adjusting stripping mechanism, the PWS-GUN1 automatically adapts to different wire sizes, allowing insulation to be stripped and removed in a single operation. Its adjustable stripping depth and length provide greater control when preparing conductors for terminal connections, crimping and electrical assembly. The integrated cutting function eliminates the need to switch between separate stripping and cutting tools during routine wiring tasks.
Designed for soft-insulated electrical wires with conductor cross-sections from 0.2–6.0 mm², equivalent to approximately 24–10 AWG, the Partex PWS-GUN1 is suitable for a wide range of electrical installation and automation applications. Its lightweight construction, weighing approximately 230 g, and practical handheld design make it an efficient solution for repetitive wire preparation in workshops, electrical cabinets and on-site installations.
Key Advantages
- Versatile automatic wire stripper and cutter combining two essential electrical preparation functions.
- 0.2–6.0 mm² stripping capacity accommodates a wide range of electrical conductors.
- Self-adjusting stripping mechanism adapts to different wire sizes without manually selecting individual stripping slots.
- Automatically strips and removes insulation in one operation for efficient wire preparation.
- Integrated wire cutter reduces the need for additional cutting tools.
- Adjustable stripping depth and length provide flexibility for different cable preparation requirements.
- Automatic mechanism returns to its starting position after each stripping operation.
- Lightweight 230 g construction supports comfortable handling during repetitive electrical work.
- Durable construction designed for professional electrical installation and maintenance tasks.
Key Features
- Partex PWS-GUN1 self-adjusting automatic wire stripper and cutter.
- 0.2–6.0 mm² conductor stripping range.
- 24–10 AWG compatible wire sizes.
- Suitable for soft-insulated electrical wires, including compatible PVC-insulated conductors.
- Automatic insulation stripping and removal in a single handle operation.
- Integrated cutting jaws for preparing electrical wires to the required length.
- Adjustable stripping length for consistent conductor preparation.
- Adjustable stripping depth to accommodate different insulation requirements.
- ABS moving body for lightweight construction.
- SS41 steel fixed body for structural strength.
- S50C steel cutting jaws for durable cutting performance.
- Approximately 230 g weight for practical handheld operation.
- Automatic return mechanism prepares the tool for the next stripping cycle.
- Manual handheld operation without batteries or an external power supply.
Technical Specifications
- Manufacturer: Partex
- Series: PWS Wire Stripping Tools
- Model: PWS-GUN1
- Product type: Self-adjusting automatic wire stripper and cutter
- Tool operation: Handheld, semi-automatic
- Stripping capacity: 0.2–6.0 mm²
- Compatible wire sizes: 24–10 AWG
- Suitable insulation: Soft electrical cable insulation, including PVC
- Stripping mechanism: Self-adjusting
- Stripping depth: Adjustable
- Stripping length: Adjustable
- Cutting function: Integrated wire cutter
- Moving body material: ABS
- Fixed body material: SS41 steel
- Cutting jaw material: S50C steel
- Overall length: Approximately 180 mm
- Weight: Approximately 230 g
- Power source: Manual operation
- Application: Electrical wire stripping and cutting
- Pack quantity: 1 tool
Efficient Wire Stripping and Cutting for Professional Electrical Work
Accurate wire stripping is essential for producing reliable electrical connections and reducing the risk of conductor damage during installation. The Partex PWS-GUN1 automatic wire stripper simplifies this process by using a self-adjusting mechanism that grips the conductor, cuts through the insulation and removes the insulation section in a single operation. This helps improve consistency and reduces the manual effort associated with traditional stripping tools.
The integrated wire cutting function allows electricians and panel builders to cut and prepare conductors using one compact tool. Its adjustable stripping length and depth enable users to adapt the stripping operation to different cable insulation types and termination requirements, making it particularly useful when preparing wires for terminal blocks, connector assemblies and bootlace ferrules.
The PWS-GUN1 is designed for professional users who regularly prepare electrical conductors during installation, assembly and maintenance work. Its combination of automatic stripping, integrated cutting and durable construction makes it a practical addition to electrical toolkits and industrial wiring workstations.
Typical Applications
- Electrical control panel assembly and wiring.
- Industrial automation and PLC control system installations.
- Preparation of conductors for terminal blocks and connectors.
- Wire preparation before crimping bootlace ferrules and electrical terminals.
- Machine building and OEM electrical equipment manufacturing.
- Electrical maintenance, repair and retrofit projects.
- Commercial and domestic electrical installation work.
- Instrumentation and low-voltage control wiring.
- Electrical workshops and production assembly lines.
- General-purpose cutting and stripping of compatible insulated conductors.
