Why Choose the ABB 831026 ARIA 32 Steel Mounting Plate?

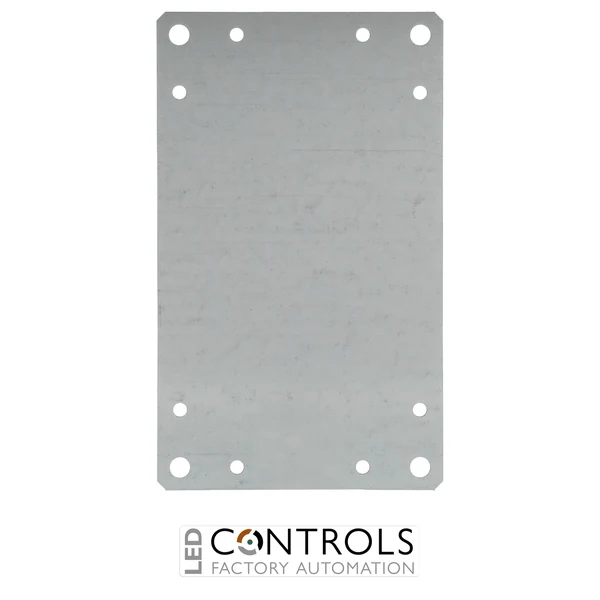

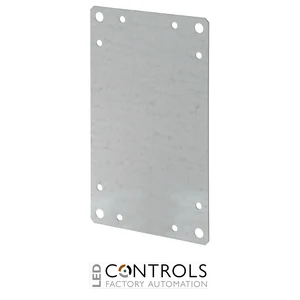

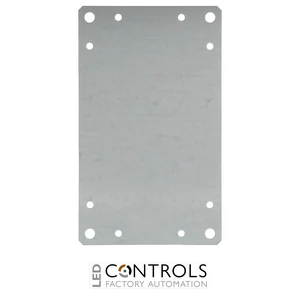

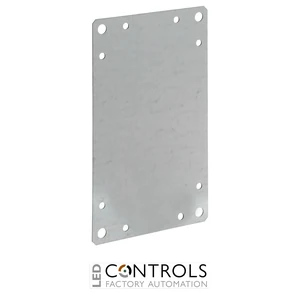

The ABB 831026 ARIA 32 is a durable galvanised steel mounting plate measuring 150 mm wide × 250 mm high × 2 mm thick, designed for installation inside compatible ABB ARIA 32 electrical enclosures. Manufactured from Sendzimir galvanised sheet steel, this mounting plate provides a practical internal mounting surface for electrical distribution, control and switching components.
Part of the ABB ARIA Enclosures product range, the 831026 offers a convenient way to configure an electrical enclosure for its intended application. The 2 mm steel construction provides a rigid mounting surface, while the galvanised finish helps protect the plate against corrosion. Its dimensions are specifically matched to the ARIA 32 enclosure format, supporting organised installation of suitable electrical components.
Identified by manufacturer type AR032M03 and ABB order code 4TBA831026C0100, this mounting plate is a dedicated accessory for the ABB ARIA 32 universal polyester enclosure. It is suitable for panel builders, electrical contractors and maintenance engineers who need a compatible steel mounting surface when assembling or upgrading electrical control and distribution equipment.
Key Advantages
Purpose-designed mounting plate for compatible ABB ARIA 32 electrical enclosures.
150 × 250 mm mounting surface provides space for suitable electrical components.
2 mm steel thickness offers a rigid foundation for equipment installation.
Sendzimir galvanised steel construction provides a protective zinc-coated surface.
Corrosion-resistant finish supports durability within appropriately specified enclosure environments.
Dedicated ARIA 32 compatibility simplifies selection of the correct mounting accessory.
Provides a practical surface for electrical control, switching and distribution components.
Supports organised component layouts within compatible electrical enclosures.
Suitable for new enclosure assemblies and refurbishment projects.
Can be used as part of a custom electrical panel assembly with appropriately selected equipment.
Manufacturer-specific dimensions reduce uncertainty when selecting replacement mounting plates.
Part of the established ABB ARIA electrical enclosure accessory range.
Designed for installation inside compatible ARIA 32 enclosures.
Provides a suitable base for mounting electrical equipment using appropriate fixings.
ABB catalogue accessory for universal polyester electrical enclosures.
Durable Galvanised Steel Mounting for ABB ARIA 32 Enclosures
The ABB AR032M03 mounting plate provides a dedicated internal mounting surface for the ARIA 32 universal polyester enclosure system. Its 250 mm height and 150 mm width correspond to the mounting plate dimensions specified by ABB for this enclosure size. The plate allows installers to position suitable electrical components within the cabinet, helping create an organised arrangement for electrical control and distribution equipment.
The plate is manufactured from 2 mm Sendzimir galvanised sheet steel. Sendzimir galvanising is a continuous hot-dip coating process that applies a protective zinc layer to steel sheet. This finish helps protect the material against corrosion and provides a durable surface for use inside appropriately specified electrical enclosures. The steel construction also offers rigidity for mounting suitable components, subject to the permitted loading and fixing arrangements of the completed assembly.
The ABB 831026 is an accessory rather than a complete electrical enclosure. It is designed for use with the ABB ARIA 32 enclosure, including the AR032P13 enclosure, ABB order code 4TBA831025C0100. The mounting plate does not independently provide an ingress protection or impact resistance rating; these characteristics depend on the complete enclosure assembly. Installers should use appropriate mounting hardware, confirm component clearances and ensure that any modifications or electrical connections comply with the relevant equipment instructions and electrical installation requirements.
Typical Applications
Internal equipment mounting within ABB ARIA 32 electrical enclosures.
Electrical control panel assembly and installation.
Mounting suitable switching and control components.
Electrical distribution cabinet configuration.
Building services control equipment installations.
Industrial automation and control panel projects.
Small electrical equipment assemblies requiring a steel mounting surface.
Electrical enclosure refurbishment and maintenance.
Replacement of existing ABB ARIA 32 mounting plates.
Installation of suitable terminal blocks and associated electrical components.
Custom electrical panel layouts within compatible polyester enclosures.
Professional electrical installation and panel-building applications.
Technical Specifications
Product group
ARIA Enclosures
Product series
ARIA 32
Product model
831026
ABB extended product type
AR032M03
ABB order code
4TBA831026C0100
EAN
5411815233845
Product type
Electrical enclosure mounting plate
Accessory category
Internal mounting plate
Material
Steel
Steel type
Sendzimir galvanised sheet steel
Surface finish
Galvanised
Nominal width
150 mm
Nominal height
250 mm
Nominal thickness
2 mm
Dimensions (W × H × D)
150 × 250 × 2 mm
Compatible enclosure
ABB ARIA 32
Compatible enclosure type
AR032P13
Compatible enclosure order code
4TBA831025C0100
Installation location
Inside compatible electrical enclosures
Application
Mounting electrical distribution, control and switching components
Frequently Asked Questions
What is the ABB 831026 mounting plate used for?
The ABB 831026, also identified as AR032M03, is a galvanised steel mounting plate designed for compatible ABB ARIA 32 electrical enclosures. It provides an internal mounting surface for suitable electrical control, switching and distribution components.
What are the dimensions of the ABB 831026 steel mounting plate?
The ABB 831026 measures 150 mm wide, 250 mm high and 2 mm thick. These are the nominal dimensions of the steel mounting plate, not the external dimensions of the enclosure in which it is installed.
What material is the ABB 831026 mounting plate made from?
The mounting plate is manufactured from 2 mm Sendzimir galvanised sheet steel. Its galvanised surface provides a protective zinc coating that helps resist corrosion in suitable electrical enclosure applications.
Which ABB enclosure is compatible with the 831026 mounting plate?
The ABB 831026 AR032M03 is designed for the ABB ARIA 32 enclosure series. A compatible enclosure is the AR032P13, ABB order code 4TBA831025C0100, which has nominal external dimensions of 215 mm wide, 315 mm high and 170 mm deep.
Does the ABB 831026 include the electrical enclosure?
No. The ABB 831026 is a steel mounting plate accessory, not a complete enclosure. The compatible ABB ARIA 32 enclosure must be obtained separately unless it is explicitly included in a supplier's product bundle.
Trusted ABB Electrical Enclosure Solutions
ABB ARIA enclosure accessories provide practical solutions for professional electrical panel assembly. The ABB 831026 AR032M03 combines a 150 × 250 mm mounting surface with 2 mm Sendzimir galvanised steel construction, offering a durable, purpose-designed mounting plate for compatible ABB ARIA 32 electrical enclosures.
Product group
ARIA Enclosures
Product series
ARIA 32
Product model
831026
ABB extended product type
AR032M03
ABB order code
4TBA831026C0100
EAN
5411815233845
Product type
Electrical enclosure mounting plate
Accessory category
Internal mounting plate
Material
Steel
Steel type
Sendzimir galvanised sheet steel
Surface finish
Galvanised
Nominal width
150 mm
Nominal height
250 mm
Nominal thickness
2 mm
Dimensions (W × H × D)
150 × 250 × 2 mm
Compatible enclosure
ABB ARIA 32
Compatible enclosure type
AR032P13
Compatible enclosure order code
4TBA831025C0100
Installation location
Inside compatible electrical enclosures
Application
Mounting electrical distribution, control and switching components
