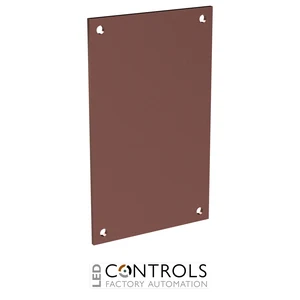

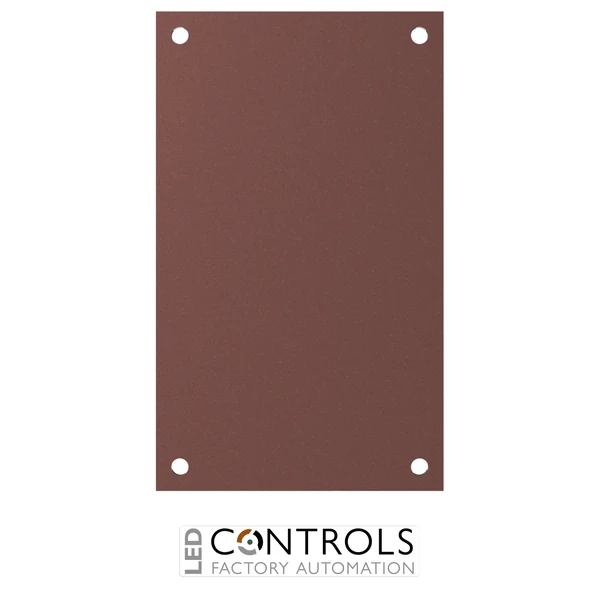

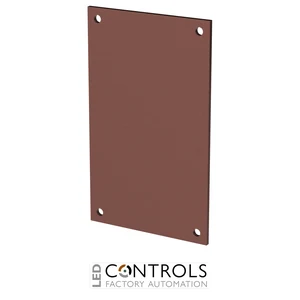

4TBA831027C0100 ABB 831027 Pertinax Mounting Plate 150 x 250 x 5mm
ABB 831027 is a Pertinax insulating mounting plate measuring 150 mm wide, 250 mm high and 5 mm thick, designed to support suitable electrical components within compatible ABB Aria enclosure assemblies.
Why Choose the ABB 831027 Pertinax Mounting Plate?
The ABB 831027 Pertinax Mounting Plate is an electrical enclosure accessory from the ABB Aria Enclosures product range. Designed to provide a mounting surface for suitable electrical components, this Pertinax mounting plate has specified dimensions of 150 mm wide × 250 mm high × 5 mm thick. It is identified by ABB manufacturer order code 4TBA831027C0100.
Manufactured from Pertinax, a resin-bonded laminated insulating material commonly used in electrical engineering, the ABB 831027 provides a non-metallic mounting surface for compatible electrical equipment. Its insulating construction makes it suitable for applications where an electrically insulating support plate is required, subject to the installation's mechanical, electrical and environmental requirements.
As part of the ABB Aria Enclosures accessory family, the 831027 mounting plate supports the organised installation of electrical components inside suitable enclosures. Its compact dimensions make it a practical choice for electrical distribution assemblies, control equipment installations and enclosure maintenance projects requiring a replacement or additional mounting plate.
Key Advantages
Genuine ABB enclosure accessory designed for applications within the Aria Enclosures product family.
Pertinax insulating material provides a non-metallic support surface for suitable electrical components.
150 mm width supports compact equipment mounting arrangements.
250 mm height provides a defined vertical mounting area.
5 mm plate thickness provides a specified material dimension for installation planning.
Suitable for mounting compatible electrical components and accessories.
Designed for professional electrical installation applications.
ABB manufacturer order code: 4TBA831027C0100.
Pertinax Insulating Mounting Plate for ABB Aria Enclosures
The ABB 831027 is designed to provide a defined mounting surface within a compatible electrical enclosure. Mounting plates are important components of electrical assemblies because they support the positioning and installation of devices such as terminal blocks, small control components, connection accessories and other suitable equipment.
Unlike conventional metallic mounting plates, this model uses Pertinax, a laminated insulating material traditionally associated with electrical engineering applications. Pertinax is commonly produced using resin-bonded paper layers and is valued for its electrically insulating properties and machinability. Its suitability for a particular application depends on the specific material grade and operating conditions.
The specified 150 mm width and 250 mm height provide a compact rectangular mounting area. These dimensions are particularly relevant when selecting a plate for an enclosure with limited internal space or when replacing an existing plate with a manufacturer-matched component.
The 5 mm thickness is another important installation characteristic. It should be considered when selecting mounting hardware, determining fixing methods and assessing the mechanical support required by the installed equipment. The permissible load and fixing arrangement must be established from the relevant enclosure and mounting plate documentation.
A non-metallic mounting plate can be useful where an insulating support surface is desirable. However, the presence of an insulating mounting plate does not replace the need for appropriate electrical clearances, protective insulation, earthing or other safety measures required by the complete electrical assembly.
The ABB 831027 can support organised panel layouts by providing a dedicated surface for electrical components. Proper component positioning helps maintain access for wiring, inspection and servicing while allowing installers to plan conductor routing and spacing around the mounted equipment.
For enclosure refurbishment or maintenance, selecting the correct replacement mounting plate is essential. The ABB manufacturer order code 4TBA831027C0100 identifies this specific Pertinax plate and helps distinguish it from alternative Aria mounting plates with different dimensions or materials.
Before installation, verify the mounting plate's compatibility with the intended ABB Aria enclosure, including the fixing arrangement, available internal dimensions, component loads and environmental conditions. Any drilling or machining should follow the manufacturer's guidance and must not compromise the safety or performance of the finished electrical assembly.
Typical Applications
Compatible ABB Aria electrical enclosures.
Electrical distribution enclosure assembly.
Internal mounting of suitable electrical components.
Electrical control panel construction.
Terminal block and connection accessory mounting.
Low-voltage electrical equipment installations.
Electrical enclosure refurbishment and modification.
Applications requiring a non-metallic mounting surface.
Professional switchboard and panel-building projects.
Electrical maintenance and spare-part replacement programmes.
Technical Specifications
Product range
Aria Enclosures
Manufacturer description
831027 Pertinax MP 150w x 250h x 5d
Product type
Electrical enclosure mounting plate
Mounting plate designation
Pertinax MP
ABB order code
4TBA831027C0100
Product group
Aria Enclosures
Material
Pertinax
Material category
Laminated electrical insulating material
Nominal width
150 mm
Nominal height
250 mm
Nominal thickness
5 mm
Nominal dimensions (W × H × D)
150 × 250 × 5 mm
Mounting surface
Non-metallic insulating plate
Primary function
Supporting suitable electrical components inside an enclosure
Application
Electrical enclosure assembly and component mounting
Compatibility
Suitable ABB Aria enclosure configurations, subject to dimensional and mounting verification
Equipment category
Electrical enclosure accessories
Installation
Professional electrical panel assembly
Frequently Asked Questions
What is the ABB 831027 Pertinax mounting plate?
The ABB 831027 is a Pertinax insulating mounting plate from the ABB Aria Enclosures range. It provides a non-metallic surface for mounting suitable electrical components inside compatible electrical enclosures.
What are the dimensions of the ABB 831027 mounting plate?
The ABB 831027 has specified dimensions of 150 mm wide × 250 mm high × 5 mm thick. These dimensions should be checked against the available mounting space and fixing arrangement of the intended enclosure.
What material is the ABB 831027 mounting plate made from?
The ABB 831027 is made from Pertinax, a laminated insulating material commonly used in electrical engineering. It provides a non-metallic mounting surface, although its suitability for specific electrical and mechanical conditions must be verified.
Is the ABB 831027 compatible with all ABB Aria enclosures?
The ABB 831027 belongs to the ABB Aria Enclosures product group, but compatibility with every enclosure size or configuration should not be assumed. Check the enclosure's internal dimensions, mounting points and ABB accessory compatibility information before installation.
What is the ABB order code for the 831027 Pertinax mounting plate?
The ABB manufacturer order code is 4TBA831027C0100. This identifies the 831027 Pertinax mounting plate with dimensions of 150 × 250 × 5 mm within the ABB Aria Enclosures product group.
Trusted ABB Aria Enclosure Accessories
ABB Aria enclosure accessories support professional electrical installations through practical component mounting and enclosure assembly solutions. The ABB 831027 Pertinax mounting plate provides a defined 150 × 250 × 5 mm insulating support surface, helping electrical professionals organise suitable equipment within compatible ABB Aria enclosures.
Product range
Aria Enclosures
Manufacturer description
831027 Pertinax MP 150w x 250h x 5d
Product type
Electrical enclosure mounting plate
Mounting plate designation
Pertinax MP
ABB order code
4TBA831027C0100
Product group
Aria Enclosures
Material
Pertinax
Material category
Laminated electrical insulating material
Nominal width
150 mm
Nominal height
250 mm
Nominal thickness
5 mm
Nominal dimensions (W × H × D)
150 × 250 × 5 mm
Mounting surface
Non-metallic insulating plate
Primary function
Supporting suitable electrical components inside an enclosure
Application
Electrical enclosure assembly and component mounting
Compatibility
Suitable ABB Aria enclosure configurations, subject to dimensional and mounting verification
