Why Choose the ABB 831083 Aria Pertinax Mounting Plate?

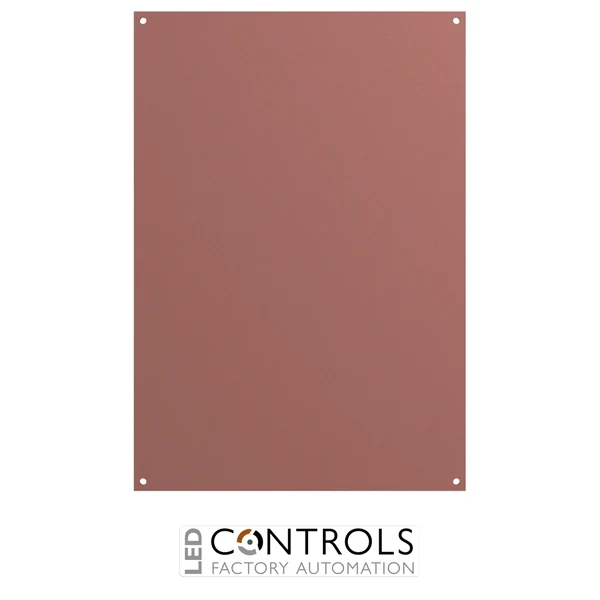

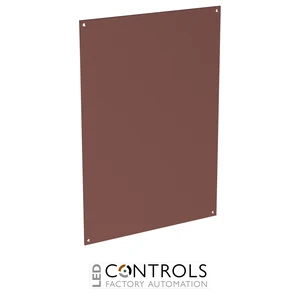

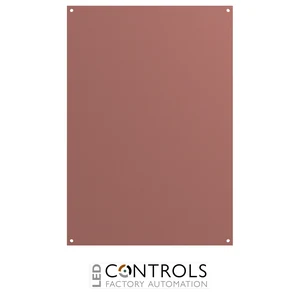

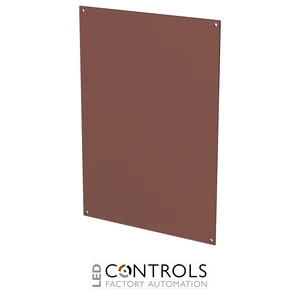

The ABB 831083 is a 450 mm wide × 650 mm high × 5 mm thick Pertinax mounting plate designed for internal equipment mounting within compatible ABB Aria electrical enclosures. Part of the ABB Aria Enclosures accessory range, this non-metallic mounting plate provides a practical support surface for suitable electrical components in distribution boards, industrial control panels and electrical cabinet assemblies.
Manufactured from Pertinax insulating material, the ABB 831083 offers an alternative to conventional steel mounting plates. Pertinax is a rigid, electrically insulating laminate commonly used in electrical engineering applications where a non-metallic mounting substrate is required. Its 5 mm thickness provides a substantial mounting surface for appropriately selected components and fixing arrangements.
With nominal dimensions of 450 × 650 × 5 mm, the ABB 831083 supports organised component positioning within compatible enclosure assemblies. Identified by ABB order code 4TBA831083C0100, it is suitable for professional panel-building, electrical installation, enclosure refurbishment and maintenance projects where an insulating mounting plate is specified.
Key Advantages
- 5 mm thick Pertinax construction provides a rigid internal mounting surface.
- Electrically insulating material offers a non-metallic alternative to steel mounting plates.
- 450 × 650 mm nominal dimensions provide a substantial surface for component arrangement.
- Designed for use with compatible ABB Aria electrical enclosures.
- Supports organised positioning of electrical control and distribution components.
- Suitable for panel designs requiring an insulating mounting substrate.
- Provides a dedicated internal mounting accessory within the ABB Aria range.
- Can accommodate appropriately selected component fixing arrangements.
- Useful for electrical cabinet assembly and compatible replacement applications.
- Supports professional installation and maintenance of electrical equipment.
- ABB order code 4TBA831083C0100 enables accurate product identification and procurement.
Key Features
- ABB Aria Enclosures accessory.
- 831083 model designation.
- Internal electrical enclosure mounting plate.
- Pertinax insulating material.
- Non-metallic construction.
- 450 mm nominal width.
- 650 mm nominal height.
- 5 mm material thickness.
- Provides a mounting surface for suitable electrical components.
- Designed for compatible ABB Aria enclosure assemblies.
- Supports customised electrical equipment layouts.
- Suitable for electrical distribution and control panel applications.
- Useful for new enclosure installations and compatible refurbishment projects.
Insulating Mounting Solutions for Electrical Control and Distribution Panels
Electrical enclosures frequently require a dedicated internal mounting surface for equipment such as terminal blocks, control relays, switching devices, monitoring components and associated accessories. The ABB 831083 Pertinax mounting plate provides a non-metallic substrate for arranging suitable equipment within compatible ABB Aria enclosure assemblies.
The 450 × 650 mm mounting format offers space for planning electrical component layouts, while the 5 mm thick Pertinax material provides a rigid insulating base. This can be useful in panel designs where a metallic mounting surface is not preferred. The suitability of individual components and fastening methods must nevertheless be assessed against the mechanical and electrical requirements of the installation.
During panel construction, installers should consider component dimensions, total equipment weight, mounting hardware, operating temperatures, ventilation, cable routing and electrical clearances. Any required drilling or machining must be carried out using appropriate methods and in accordance with the manufacturer's instructions. The insulating properties of the mounting plate do not eliminate the need for suitable electrical protection, insulation coordination or compliance with applicable installation standards.
Typical Applications
- Internal component mounting within compatible ABB Aria enclosures.
- Industrial electrical control panel construction.
- Electrical distribution cabinet assembly.
- Mounting suitable terminal blocks and control accessories.
- Electrical installations requiring a non-metallic mounting surface.
- Commercial building electrical control cabinets.
- Electrical switchgear and control equipment assemblies.
- Panel-building and electrical equipment integration projects.
- Replacement of compatible enclosure mounting plates.
- Electrical cabinet refurbishment and maintenance.
