Why Choose the ABB 831101 ARIA 86 Solid Inner Cover Plate?

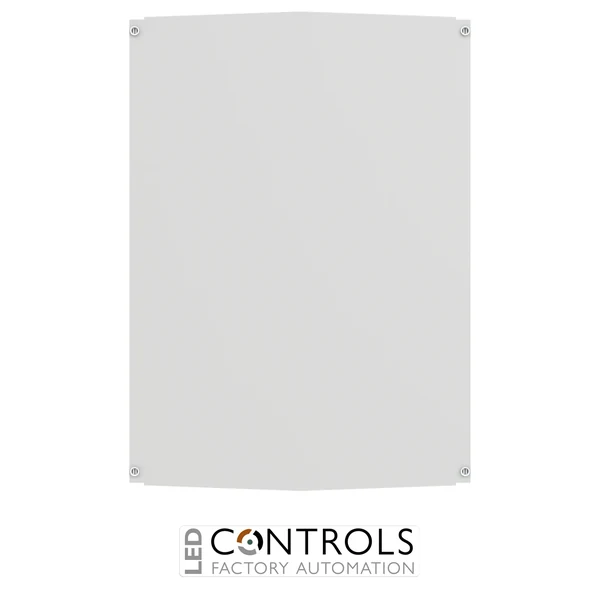

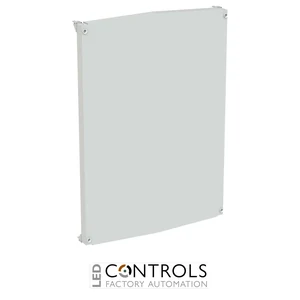

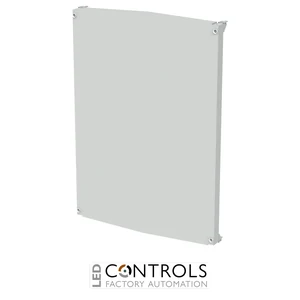

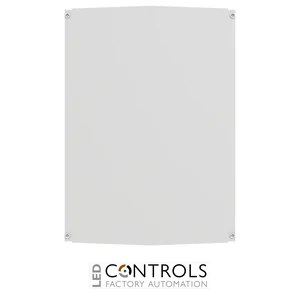

The ABB 831101 ARIA 86 Solid Inner Cover Plate is a purpose-designed electrical enclosure accessory for compatible ABB ARIA 86 universal polyester enclosures. Designed to provide a continuous internal front covering, this solid plate helps separate the accessible front area of an enclosure from equipment installed behind it. It is an ideal choice for professional electrical panel builders, contractors and maintenance engineers who require a plain inner cover without preformed openings for modular electrical devices.
Identified by manufacturer type AR086C03 and ABB order code 4TBA831101C0100, this cover plate is part of ABB's coordinated ARIA enclosure accessory system. Manufactured from grey plastic, the plate features a solid, non-transparent design and is intended to fit the ARIA 86 enclosure format. Its manufacturer-listed dimensions are 561.8 mm wide × 790 mm high × 79.4 mm deep.
Unlike an equipment mounting plate, the ABB 831101 serves as an internal front cover rather than the main structural surface for mounting electrical components. Its closed design is useful for enclosure arrangements where a plain protective front is preferred, while the corresponding ARIA 86 cover plate with modular equipment openings is available as a separate accessory. This makes the 831101 a practical option for new cabinet assemblies, refurbishment work and replacement of existing solid inner covers.
Key Advantages
- Designed for ABB ARIA 86 enclosures, providing a dedicated internal cover solution for the matching cabinet format.
- Solid, closed front design provides a continuous covering without preformed modular equipment openings.
- Grey plastic construction offers a non-metallic enclosure accessory with a coordinated appearance.
- Non-transparent surface conceals the equipment and wiring positioned behind the inner cover.
- Manufacturer-matched dimensions help installers select the correct accessory for the ARIA 86 enclosure series.
- Internal front covering supports organised separation between the enclosure's front access area and equipment behind the plate.
- Suitable for custom electrical assemblies where a closed inner front is required.
- Compatible with the ABB ARIA accessory system for coordinated enclosure configurations.
- Replacement accessory format supports refurbishment of existing ARIA 86 installations.
- Dedicated manufacturer reference simplifies accurate ordering and identification.
- Alternative to a slotted inner cover when openings for DIN-rail devices are not required.
- Part of the established ABB ARIA electrical enclosure range.
Key Features
- ABB ARIA 86 solid inner cover plate.
- Product reference: 831101.
- ABB extended product type: AR086C03.
- ABB order code: 4TBA831101C0100.
- Product group: ARIA Enclosures.
- Compatible enclosure series: ABB ARIA 86.
- Cover configuration: Solid, closed front.
- Material: Plastic.
- Colour: Grey.
- Transparency: Non-transparent.
- Product width: 561.8 mm.
- Product height: 790 mm.
- Product depth: 79.4 mm.
- Mounting plate type: Plain.
- Accessory category: Internal enclosure front cover.
- Modular equipment openings: None in the standard solid cover design.
- Intended location: Inside a compatible ABB ARIA 86 enclosure.
- Product supplied: Solid inner cover plate.
Understanding Solid Inner Cover Plates for ABB ARIA Electrical Enclosures
The ABB 831101 AR086C03 is a full internal cover plate intended for the ARIA 86 enclosure format. In a typical electrical enclosure assembly, the internal front cover provides a covering between the front access area and components positioned further inside the cabinet. The 831101 features a solid, closed design, making it appropriate where an uninterrupted front panel is required rather than a cover with openings for modular circuit breakers or other DIN-rail equipment.
ABB's ARIA system provides several alternative internal front arrangements for different electrical assembly requirements. The AR086C03 is the solid full-cover option, while the AR086S03, order code 4TBA831102C0100, provides a front cover with openings for modular equipment. ABB also lists the AR086D03 mounting frame, order code 4TBA831103C0100, for the ARIA 86 internal system. Selecting the correct combination of cover, frame and mounting accessories helps achieve an appropriate equipment layout.
The ABB 831101 is an enclosure accessory rather than a complete protective enclosure. Its plastic construction and closed front should not be interpreted as an independent IP rating, electrical insulation classification or guarantee of protection against contact with live parts. Those characteristics depend on the completed assembly, including the outer cabinet, equipment arrangement, fixings, access provisions and installation method. Any modifications to the cover should be checked against ABB's instructions and the applicable electrical assembly requirements.
Typical Applications
- Solid internal front covering within ABB ARIA 86 electrical enclosures.
- Electrical distribution cabinets requiring a plain inner cover.
- Industrial control panels with equipment mounted behind a closed front plate.
- Commercial electrical enclosure assemblies.
- Building services electrical control equipment.
- Custom electrical panel layouts using ABB ARIA accessories.
- Electrical cabinet refurbishment and maintenance projects.
- Replacement of existing ABB AR086C03 solid cover plates.
- Enclosure configurations without front openings for modular electrical devices.
- Professional electrical panel-building applications.
- Equipment housing where a non-transparent internal front is preferred.
- Coordinated ABB ARIA 86 enclosure accessory installations.
