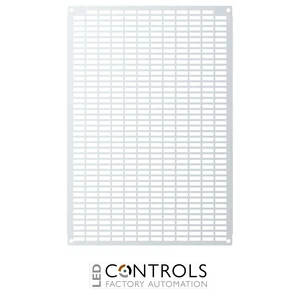

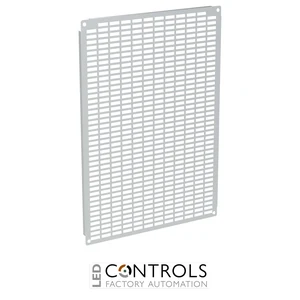

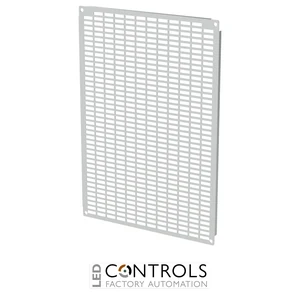

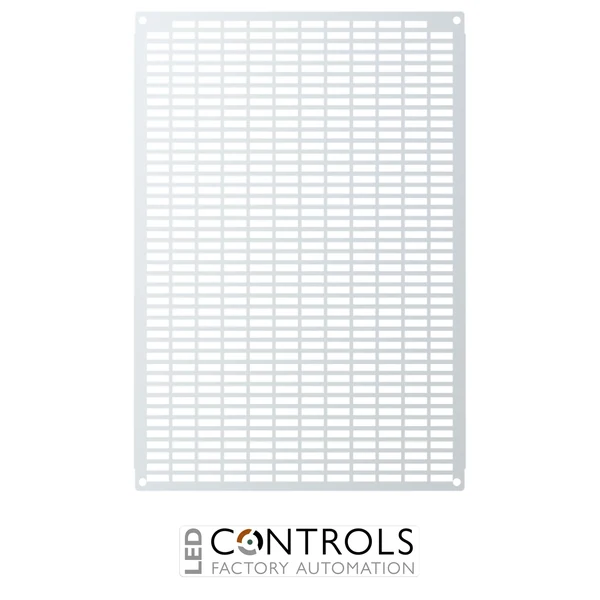

Why Choose the ABB 831336 Perforated Mounting Plate?
The ABB 831336, manufacturer order code 4TBA831336C0100, is a durable perforated mounting plate designed for compatible electrical enclosures within the ABB Aria Enclosures product group. With dimensions of 450 mm wide × 650 mm high × 1.5 mm thick, this mounting accessory provides a practical solution for installing and organising electrical components inside industrial distribution and control enclosures.
As part of the ABB Aria enclosure range, the 831336 perforated mounting plate is intended to support efficient electrical panel assembly and equipment installation. Its perforated design provides multiple fixing positions, helping installers arrange compatible electrical components and accessories while maintaining an organised enclosure layout.
The ABB 831336 Perforated Mounting Plate combines a generous 450 × 650 mm mounting surface with a 1.5 mm plate thickness. It is suitable for electrical panel builders, automation engineers and installation professionals requiring a dedicated mounting accessory for compatible ABB Aria enclosures.
Key Advantages
- Genuine ABB Aria enclosure mounting accessory designed for compatible electrical installations.
- Perforated mounting plate design provides multiple equipment fixing positions.
- 450 mm width × 650 mm height offers a substantial mounting surface.
- 1.5 mm plate thickness provides a defined mechanical mounting structure.
- Supports organised installation of compatible electrical and control components.
- Pre-perforated construction can reduce the need for additional drilling where the existing fixing positions are suitable.
- Designed for integration into compatible ABB Aria electrical enclosures.
- Suitable for new electrical panel assemblies, enclosure modifications and replacement applications.
Key Features
- ABB Aria Enclosures product group.
- ABB 831336 perforated mounting plate.
- ABB order code 4TBA831336C0100.
- 450 mm nominal plate width.
- 650 mm nominal plate height.
- 1.5 mm plate thickness.
- Perforated mounting surface for flexible equipment positioning.
- Designed for mechanical mounting of compatible electrical components.
- Suitable for internal installation within compatible electrical enclosures.
- Supports electrical distribution and industrial control panel assembly.
- Dedicated ABB accessory for professional enclosure installations.
Technical Specifications
- Manufacturer: ABB
- Series: Aria Enclosures
- Product group: Aria Enclosures
- Model: 831336
- Product designation: 831336 Perforated MP 450w x 650h x 1.5d
- Manufacturer order code: 4TBA831336C0100
- Product type: Perforated mounting plate
- Product category: Electrical enclosure accessories
- Width: 450 mm
- Height: 650 mm
- Plate thickness: 1.5 mm
- Dimensions (W × H × T): 450 × 650 × 1.5 mm
- Mounting surface: Perforated
- Mounting application: Internal enclosure equipment mounting
- Compatibility: Suitable ABB Aria enclosure configurations
- Application: Electrical distribution and control panel assemblies
Flexible Equipment Mounting for ABB Aria Enclosures
Mounting plates provide an essential mechanical foundation within electrical distribution and industrial control enclosures. They allow electrical components, mounting accessories and suitable equipment to be positioned securely within the enclosure, helping maintain an organised installation and supporting convenient access during assembly and maintenance.
The ABB 831336 perforated mounting plate is designed for use within compatible ABB Aria enclosure systems. Its perforated construction offers multiple potential fixing locations, allowing panel builders to plan equipment layouts around the mounting requirements of the components being installed. The existing perforations may also simplify installation by reducing the need for additional machining when compatible fixing points are available.
With its 450 × 650 mm dimensions and 1.5 mm thickness, the plate provides a dedicated mounting surface for suitable enclosure equipment. Component weight, fixing methods, electrical clearances and enclosure compatibility must be considered during installation to ensure the completed assembly meets the relevant mechanical and electrical requirements.
Typical Applications
- Compatible ABB Aria electrical enclosure assemblies.
- Industrial electrical control panels.
- Electrical distribution board assembly.
- Mounting compatible electrical control and automation components.
- Industrial machinery control enclosures.
- Electrical panel building and enclosure customisation.
- Commercial and industrial electrical installations.
- Replacement and refurbishment of compatible enclosure mounting plates.
