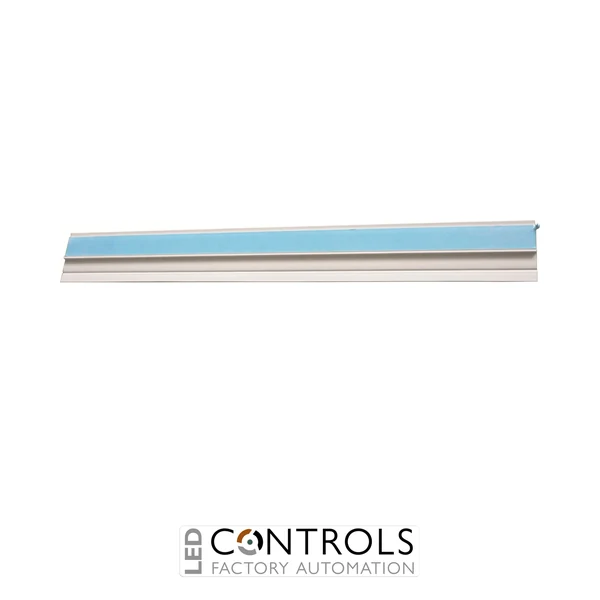

ABB 831530 AR831530 self-adhesive 415 mm drip moulding profile for ABB ARIA 54 and ARIA 64 electrical enclosures, also suitable for ARIA 32 and ARIA 43 after cutting to length, providing supplementary rainwater run-off management.
The ABB 831530 ARIA Drip Moulding Profile is a purpose-designed rain protection accessory for compatible ABB ARIA electrical enclosures. Measuring 415 mm in length, this self-adhesive profile is designed to help direct rainwater away from the enclosure's upper door area. It provides a practical additional water-management feature for electrical cabinet installations where exposure to rainfall or water run-off must be considered.
Identified by ABB manufacturer type AR831530 and order code 4TBA831530C0100, the drip moulding profile is specified for the ABB ARIA 54 and ARIA 64 enclosure series. ABB also confirms that the same accessory can be used with ARIA 32 and ARIA 43 enclosures after cutting to the appropriate length. This versatility makes it a useful component for electrical contractors, panel builders and maintenance engineers working with several enclosure sizes within the ARIA range.
The profile features a self-adhesive installation arrangement, allowing it to be fitted without relying on additional mechanical fixing holes in the enclosure body. Its compact design offers an unobtrusive way to supplement the cabinet's existing water-shedding arrangement. The ABB 831530 is supplied as a single drip moulding profile and is intended to be used alongside a correctly installed, appropriately rated electrical enclosure rather than as a replacement for the enclosure's door seals or ingress protection features.
How the ABB AR831530 Drip Moulding Profile Supports Enclosure Rain Protection
Electrical enclosures installed in locations exposed to rainfall may experience water running down the front of the cabinet, particularly around the upper door area. The ABB AR831530 drip moulding profile is designed to provide an additional water-shedding feature by helping direct run-off away from the enclosure opening. This can be useful for installations where water management is an important part of the overall enclosure design. The accessory supplements the enclosure's protective construction but does not independently make an enclosure waterproof.
ABB specifies the 415 mm self-adhesive profile for ARIA 54 and ARIA 64 enclosures. For smaller cabinets, the same profile can be shortened for use with ARIA 32 and ARIA 43 models. This cut-to-length compatibility is explicitly identified in ABB's ARIA accessory catalogue. Installers should measure the intended location carefully before trimming the profile and ensure that the cut section remains suitable for its intended water-shedding function.
The self-adhesive fixing method allows the profile to be installed without drilling extra mounting holes for the accessory. For reliable attachment, the installation surface should be clean, dry and suitable for the adhesive, and the product should be positioned according to the applicable ABB instructions. Importantly, the ABB 831530 does not carry a separate enclosure IP rating. The protection of the completed electrical installation depends on the cabinet's specified rating, door seals, cable entries, mounting arrangements and any modifications made during installation.
Typical Applications
Additional rainwater management for ABB ARIA 54 electrical enclosures.
Drip protection accessories for ABB ARIA 64 electrical cabinets.
Cut-to-length rain guard installations on compatible ARIA 32 enclosures.
Cut-to-length rain guard installations on compatible ARIA 43 enclosures.
Electrical distribution cabinets exposed to rainwater run-off.
Industrial control panel enclosures requiring additional water-shedding measures.
Commercial building services electrical installations.
Outdoor electrical cabinet projects where the complete enclosure is appropriately specified.
Replacement of existing drip moulding or rain guard profiles.
Refurbishment of compatible ABB ARIA enclosure installations.
Professional electrical panel-building and enclosure accessory installations.
Yes, for the smaller compatible enclosure formats specified by ABB
ABB catalogue pack quantity
1
Net weight
Approximately 0.2 kg
Country of origin
Belgium
Product category
Electrical enclosure accessory
Application
Additional rainwater management for compatible ABB ARIA enclosures
Frequently Asked Questions
What is the ABB 831530 drip moulding profile used for?
The ABB 831530, also known as AR831530, is a self-adhesive rain guard accessory for compatible ABB ARIA electrical enclosures. It is designed to help direct rainwater run-off away from the upper door area and supplement the enclosure's existing water protection features.
How long is the ABB 831530 drip moulding profile?
The ABB 831530 has a nominal length of 415 mm. Product listings also describe approximate overall dimensions of 415 × 50 × 6 mm. The 415 mm length is the key dimension used by ABB to identify this ARIA drip moulding accessory.
Which ABB ARIA enclosures are compatible with the 831530 profile?
ABB specifies the AR831530 for ARIA 54 and ARIA 64 enclosures. The manufacturer also confirms that it can be used with ARIA 32 and ARIA 43 enclosures after cutting the profile to the required length.
How is the ABB 831530 drip moulding profile installed?
The ABB 831530 is self-adhesive, allowing it to be attached to a suitable enclosure surface without additional fixing holes for the profile. The mounting surface should be properly prepared, and the profile should be positioned in accordance with ABB's installation guidance to support effective adhesion and water run-off.
Does fitting the ABB 831530 increase an enclosure's IP rating?
No. The ABB 831530 is an additional rainwater management accessory and does not independently increase or certify an enclosure's IP rating. The ingress protection of the completed installation depends on the enclosure model, its seals, cable entries and correct assembly. The drip moulding profile should be treated as a supplementary water-shedding feature.
Trusted ABB Electrical Enclosure Accessories
ABB ARIA enclosure accessories provide coordinated solutions for professional electrical installations. The ABB 831530 AR831530 Self-Adhesive Drip Moulding Profile offers a practical 415 mm rainwater management accessory for ARIA 54 and ARIA 64 enclosures, with cut-to-length compatibility for ARIA 32 and ARIA 43 models. Its simple adhesive fixing and manufacturer-defined compatibility make it a useful addition to suitable electrical cabinet installations.
Yes, for the smaller compatible enclosure formats specified by ABB
ABB catalogue pack quantity
1
Net weight
Approximately 0.2 kg
Country of origin
Belgium
Product category
Electrical enclosure accessory
Application
Additional rainwater management for compatible ABB ARIA enclosures
