Why Choose the Rittal AX2830.061 Base/Plinth Trim Panels?

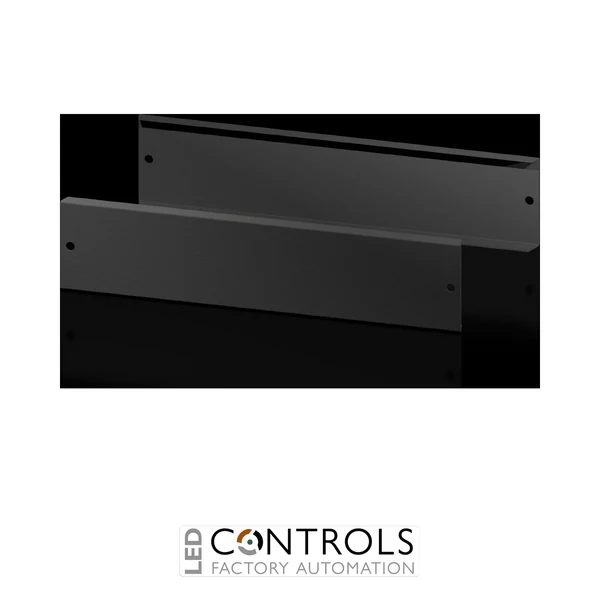

The Rittal AX2830.061 is a set of front and rear base/plinth trim panels designed for Rittal AX enclosures with a width of 600 mm. Manufactured from robust sheet steel, these trim panels form part of the Rittal AX base/plinth system and provide a clean, durable enclosure base solution for industrial control and automation installations.
The front and rear panels are designed to provide a wide opening for convenient access to screw connections while also simplifying cable entry into the enclosure. This helps installers route power, control and communication cabling efficiently while maintaining an organised and professional enclosure installation.
With a height of 100 mm and a durable RAL 9005 black finish, the AX2830.061 is specifically intended for 600 mm wide Rittal AX enclosures. Each pack includes two front/rear base/plinth trim panels, with corresponding side base/plinth elements required to complete the full plinth assembly.
Key Advantages
- Designed specifically for Rittal AX compact enclosures.
- Suitable for enclosures with a width of 600 mm.
- 100 mm base/plinth height provides useful clearance beneath the enclosure.
- Wide opening provides convenient access to enclosure screw connections.
- Helps simplify cable entry and cable routing.
- Durable sheet steel construction for industrial environments.
- Finished in RAL 9005 black for compatibility with the AX base/plinth system.
Key Features
- Rittal AX base/plinth accessory system.
- Front and rear base/plinth trim panel design.
- 100 mm panel height.
- Designed for 600 mm wide AX enclosures.
- Manufactured from robust sheet steel.
- RAL 9005 surface colour.
- Pack contains 2 panels.
- Designed to improve access for fastening and cable installation.
Reliable Base/Plinth Integration for AX Enclosures
A correctly configured enclosure plinth provides additional clearance for cable routing, improves accessibility during installation and helps create a more practical mounting arrangement for industrial control cabinets. The Rittal AX base/plinth system is designed to integrate directly with compatible AX enclosures for a consistent and secure installation.
The AX2830.061 front and rear trim panels create a wide access opening that allows installers to reach fastening points and introduce cables from beneath the enclosure. Side base/plinth elements are used alongside these panels to complete the plinth unit, helping create a robust enclosure foundation for industrial applications.
Typical Applications
- Rittal AX compact enclosure installations.
- Industrial electrical control cabinets.
- Automation and PLC control panels.
- Machine-building enclosure systems.
- Power distribution and control equipment.
- Applications requiring organised cable entry beneath an enclosure.
