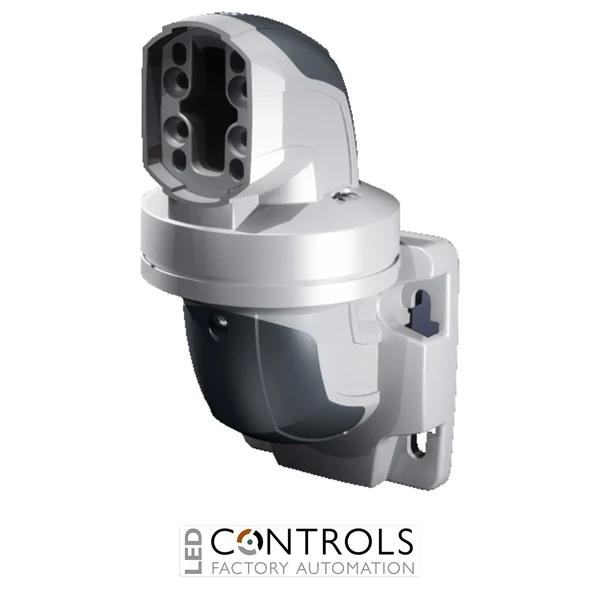

Rittal CP6206.740 wall-mounted hinge for CP 60 support arm systems with horizontal outlet, swivel functionality and cast aluminium construction.
£294.71
The Rittal CP6206.740 is a robust wall-mounted hinge for the CP 60 support arm system designed for secure swivel mounting of industrial operating housings and support arms on vertical surfaces. As part of the trusted Rittal CP 60 support arm system, this horizontal outlet hinge provides flexible positioning and reliable cable routing for industrial automation and machine control applications.
This wall-mounted hinge features a removable cover for simple cable entry and a rotating design that allows operators to position control panels ergonomically. Its strong cast aluminium construction provides dependable mechanical support for demanding industrial environments.
With an integrated swivel and tilting function and an approximate 330° rotation range, the CP6206.740 allows flexible adjustment of support arm systems while maintaining a secure connection between the wall mounting surface and operating enclosure.
The Rittal CP6206.740 wall-mounted hinge provides a reliable interface between CP 60 support arms and vertical mounting surfaces. Its swivel capability allows machine operators to adjust control panels into convenient working positions, improving accessibility and operational efficiency.
Designed for professional machine building and automation environments, the CP 60 support arm system combines mechanical stability with practical installation features, including integrated cable management and adjustable rotation limits.
| Manufacturer | Rittal |
|---|---|
| Series | CP 60 Support Arm System |
| Model | CP6206.740 |
| Product type | Wall-mounted hinge |
| Outlet type | Horizontal outlet |
| Material | Cast aluminium |
| Cover material | Plastic |
| Colour | RAL 7035 (hinge), RAL 7024 (cover) |
| Rotating/tilting | Yes |
| Rotation angle/swivel area | Approx. 330° |
| Weight | Approx. 3.8 kg |
| Packaging unit | 1 pc |
| EAN | 4028177684300 |
| ETIM classification | EC000882 |
The CP6206.740 is a wall-mounted hinge used to connect CP 60 support arm systems to vertical surfaces while allowing swivel adjustment of operating enclosures.
The CP6206.740 features a horizontal outlet design for CP 60 support arm system installations.
The hinge provides an approximate 330° swivel range, with rotation limitation possible using the supplied screws.
The wall-mounted hinge is manufactured from cast aluminium with a removable plastic cover for cable entry access.
The CP6206.740 is designed for use with the Rittal CP 60 support arm system.
Rittal CP support arm system components are widely used by machine builders and automation engineers to create reliable, ergonomic and flexible operator control solutions for modern industrial equipment.
