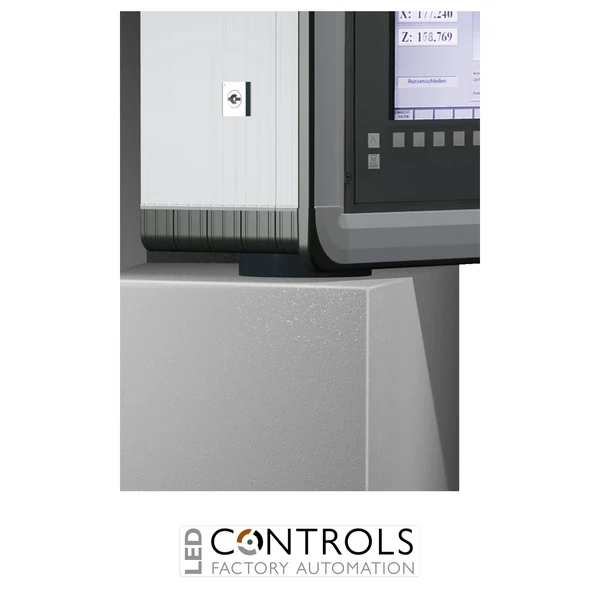

Rittal CP6206.870 pivot without jib for machine-integrated installation with Ø 130 mm support arm connection for industrial operator enclosures.
£115.38
The Rittal CP6206.870 is a robust pivot without jib for machine-integrated installation designed for direct integration of industrial command panels and operator enclosures into machines and systems. It provides a reliable pivoting connection for Rittal CP support arm applications where a compact, machine-mounted solution is required.
As part of the Rittal CP support arm system, this pivot enables vertically hinged installation of operating housings while maintaining smooth movement and secure mechanical support. Its integrated rotation range restriction allows the swivel area to be adjusted to suit specific installation requirements.
The CP6206.870 is suitable for suspended or top-mounted enclosures with a Ø 130 mm support arm connection. With a static load capacity of 700 N and an approximate 310° swivel range, it provides a dependable mounting solution for industrial automation environments.
The Rittal CP6206.870 pivot provides machine builders and automation engineers with a reliable method of integrating operator housings directly into machinery. Its pivoting function allows control panels to be positioned conveniently while maintaining a secure mechanical connection.
Designed for use within the modular Rittal CP support arm range, this accessory helps create ergonomic and efficient operator stations for production equipment, machine tools and industrial automation systems.
| Manufacturer | Rittal |
|---|---|
| Series | CP Support Arm System |
| Model | CP6206.870 |
| Article number | 6206.870 |
| Product type | Pivot without jib |
| Application | Machine-integrated installation |
| Installation type | Direct vertically hinged integration into machines and systems |
| Support arm connection | Ø 130 mm |
| Load capacity (static) | 700 N |
| Rotation angle / swivel range | Approx. 310° |
| Rotation restriction | Adjustable using supplied grub screws |
| Colour | RAL 7035 |
| Packaging unit | 1 pc |
| Net weight | 1.36 kg |
| Gross weight | 1.46 kg |
| EAN | 4028177707948 |
The CP6206.870 is a pivot without jib designed for direct machine-integrated installation of industrial command panels and operating housings.
The pivot is designed for enclosures with a Ø 130 mm support arm connection.
The Rittal CP6206.870 has a static load capacity of 700 N.
The pivot provides an approximate 310° swivel range, which can be limited using the supplied grub screws.
The CP6206.870 is typically installed in machine-integrated automation systems with suspended or top-mounted operator enclosures.
Rittal CP support arm accessories provide modular, reliable and ergonomic solutions for integrating operator interfaces and industrial control panels into modern machinery.
