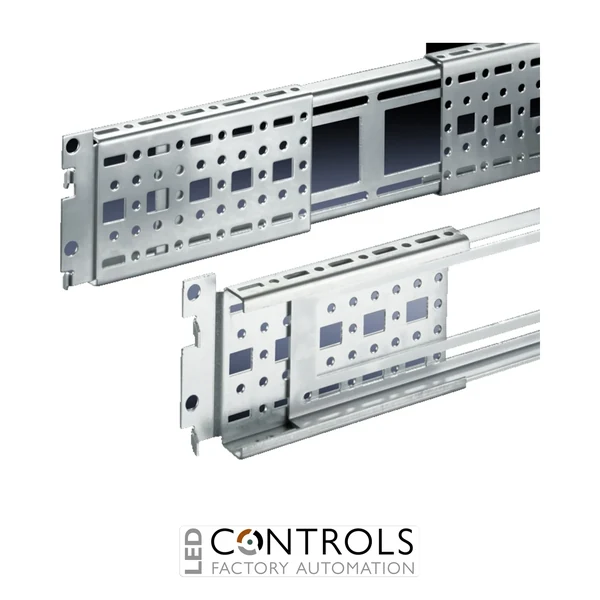

Why Choose the Rittal DK 7000.678 Punched Section with Mounting Flange?
The Rittal DK 7000.678 is a depth-variable punched section with mounting flange designed for flexible interior installation in compatible Rittal enclosure and network cabinet systems. Featuring a 17 × 73 mm section profile, it provides a robust support structure for mounting additional components between two 482.6 mm (19") mounting frames.
With an adjustable length of 530–700 mm, the DK 7000.678 can be adapted to suit the existing attachment distance within the enclosure. The system is designed for mounting frames with a 650–820 mm distance between 19-inch levels, while additional screw fastening secures the assembly once positioned.
Manufactured from zinc-plated sheet steel, the punched section combines mechanical strength with flexible installation. It is suitable for Rittal TS, TE and TX CableNet systems and is supplied as a pack of two sections with the required assembly screws.
Key Advantages
- Depth-variable 530–700 mm design enables flexible adaptation to the available mounting distance.
- Robust 17 × 73 mm punched section profile for supporting additional enclosure components.
- Designed for installation between two 482.6 mm (19") mounting frames.
- Suitable for a 650–820 mm distance between 19-inch mounting levels.
- Movable centre section provides flexible attachment positions along the enclosure depth.
- Durable zinc-plated sheet steel construction.
- Compatible with selected Rittal TS, TE and TX CableNet systems.
Key Features
- Rittal DK punched section with mounting flange.
- 17 × 73 mm profile dimensions.
- 530–700 mm adjustable length.
- Depth-variable configuration for flexible interior installation.
- Designed for 482.6 mm (19") mounting frame systems.
- 650–820 mm spacing between 19-inch levels.
- Sliding centre section enables flexible component attachment.
- Additional screw fastening provides secure installation.
- Manufactured from sheet steel.
- Zinc-plated surface finish.
- Supplied in a pack of 2 with assembly screws.
Flexible Interior Installation for Rittal Enclosures
The Rittal DK 7000.678 is designed to create additional mounting possibilities within enclosure and network cabinet systems. The punched sections can be suspended between two mounting frames, while their variable depth allows the assembly to be adjusted to the required attachment distance before being secured with additional screw fastening.
A movable centre section can be positioned along the rail and secured within the available slots, providing an additional attachment point at different positions between the mounting frames. This makes the DK 7000.678 particularly useful for customised interior layouts and installations requiring support for additional components outside the standard 19-inch mounting planes.
Typical Applications
- Rittal TS enclosure interior installation.
- Rittal TE network and IT cabinet systems.
- Rittal TX CableNet installations.
- Supporting additional components between 19-inch mounting frames.
- Custom network cabinet interior configurations.
- Industrial control and communications enclosures.
- Depth-variable mounting structures for IT and electrical equipment.
