Why Choose the Rittal DK 7824.525 180° Hinge?

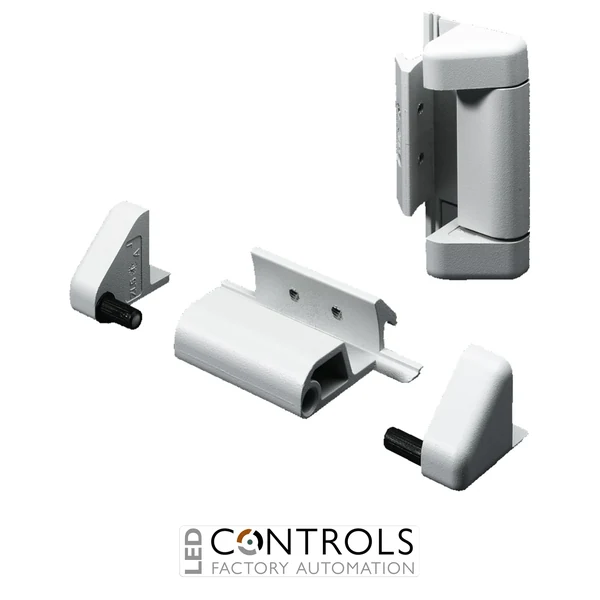

The Rittal DK 7824.525 is a robust hinge set for glazed and vented enclosure doors, designed to increase the available door opening angle on compatible Rittal TS 8 and TS IT enclosure systems. It is particularly suited to installations where improved access to equipment inside an IT rack or industrial enclosure is required for installation, servicing and maintenance.
Manufactured from durable die-cast zinc and finished in RAL 7035, the hinge set is engineered for dependable mechanical performance within Rittal enclosure systems. Although designated by Rittal as a 180° hinge, the manufacturer specifies a maximum 140° door opening angle for glazed-door applications.
The DK 7824.525 is supplied as a set of four hinges including assembly components. It is suitable for aluminium glazed doors and vented aluminium/sheet-steel doors on compatible TS 8 bayed enclosure suites with comfort handles and TS IT enclosures.
Key Advantages
- Designed to increase the door opening angle on compatible Rittal enclosures.
- Provides up to a 140° opening angle for glazed doors.
- Suitable for Rittal TS 8 and TS IT enclosure systems.
- Compatible with aluminium glazed and vented aluminium/sheet-steel door variants.
- Strong die-cast zinc construction for reliable industrial use.
- RAL 7035 finish complements compatible Rittal enclosure hardware.
- Supplied with the required assembly components for installation.
- Pack contains four hinge components.
Key Features
- Rittal DK / SZ enclosure hinge accessory.
- Model 7824.525.
- Manufacturer designation: 180° hinge.
- 140° maximum door opening angle for the specified glazed-door application.
- Die-cast zinc construction.
- RAL 7035 colour.
- Suitable for aluminium glazed doors.
- Suitable for vented aluminium/sheet-steel doors.
- Compatible with TS 8 bayed enclosure suites with comfort handles.
- Compatible with TS IT enclosures.
- Supplied in a pack of 4 pieces.
Improved Door Access for Rittal Enclosures
Increasing an enclosure door's opening angle can provide significantly better access when installing, connecting or maintaining equipment inside a cabinet. The Rittal DK 7824.525 replaces the appropriate existing hinge arrangement to provide an enlarged opening angle for compatible glazed and vented doors, making maintenance and equipment installation more convenient.
For glazed-door applications, Rittal specifies a maximum opening angle of 140°. The enclosure protection category may be reduced when these hinges are fitted, and the product is not intended for divided doors. When used within a bayed enclosure suite, the doors must also remain hinged on the same side.
Typical Applications
- Rittal TS 8 bayed enclosure suites.
- Rittal TS IT server and network enclosures.
- Aluminium glazed enclosure doors.
- Vented aluminium/sheet-steel enclosure doors.
- Industrial IT and communications cabinets.
- Data centre and network infrastructure installations.
- Control and automation enclosures requiring improved service access.
