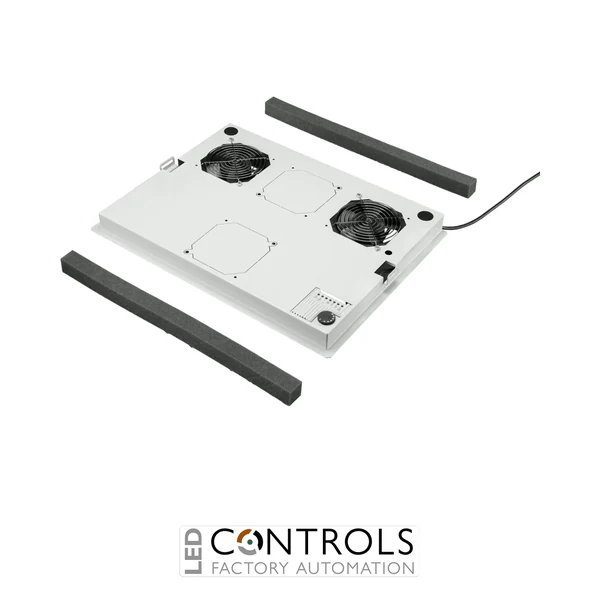

Rittal DK 7966.035 is a 230 V single-phase fan mounting plate for 600 x 600 mm TS 8 network enclosures, supplied with two fans, thermostat and 3.5 m connection cable and expandable to a maximum of four fans.
£286.72
The Rittal DK 7966.035 is a purpose-designed fan mounting plate for TS 8 network enclosures, providing an effective solution for upgrading existing DK-TS installations with active enclosure ventilation. Designed for retrofitting from above, the plate is installed towards the front of the enclosure while leaving the rear section available for cable entry.
Supplied with 2 fans as standard, the DK 7966.035 delivers an unimpeded airflow of 160/180 m³/h per fan at 50/60 Hz. Additional fan cut-outs allow the installation to be expanded to a maximum of 4 fans, providing additional cooling capacity when required. An integrated thermostat enables temperature-dependent fan operation, helping maintain suitable conditions for installed IT and network equipment.
Designed for 600 × 600 mm TS 8 enclosures, the fan mounting plate operates from a 230 V, single-phase, 50/60 Hz supply. The assembly includes two fans, a thermostat, foam rubber cable clamp strip and a 3.5 m connection cable, with the thermostat and fans supplied fully wired for straightforward installation.
Active ventilation helps remove heat generated by servers, networking equipment and other electronic components installed inside an enclosure. The Rittal DK 7966.035 creates a controlled airflow through compatible TS 8 network enclosures, helping maintain suitable operating temperatures and supporting dependable equipment performance.
The mounting plate is particularly useful when upgrading existing installations because it can be retrofitted from above without occupying the rear cable-entry area. For applications requiring greater airflow, additional fans can be installed using the available cut-outs and the compatible Rittal fan expansion kit.
| Manufacturer | Rittal |
|---|---|
| Series | DK |
| Model | DK 7966.035 |
| Product type | Fan mounting plate |
| Compatible enclosure | TS 8 network enclosure |
| Enclosure width | 600 mm |
| Enclosure depth | 600 mm |
| Dimensions / enclosure size (W × D) | 600 × 600 mm |
| Rated operating voltage | 230 V AC |
| Phase | 1-phase |
| Frequency | 50/60 Hz |
| Fans supplied | 2 |
| Maximum number of fans | 4 |
| Airflow per fan | 160/180 m³/h at 50/60 Hz |
| Noise level per fan | 37 dB(A) |
| Operating temperature | 5–55 °C |
| Connection cable length | 3.5 m |
| Colour | RAL 7035 |
| Net weight | 3.864 kg |
| Gross weight | 4.064 kg |
| Pack quantity | 1 pc(s) |
| EAN | 4028177168923 |
| Customs tariff number | 84145915 |
| ETIM 9 | EC000331 |
| ECLASS 8.0 | 27189272 |
The Rittal DK 7966.035 is a fan mounting plate for TS 8 network enclosures, designed to provide active ventilation and help remove heat generated by installed IT and network equipment.
The fan mounting plate is supplied with 2 fans as standard and includes additional cut-outs allowing expansion to a maximum of 4 fans.
Each fan provides an unimpeded airflow of approximately 160/180 m³/h at 50/60 Hz.
The DK 7966.035 operates from a 230 V AC, single-phase, 50/60 Hz supply.
Yes. The fan mounting plate is supplied with a thermostat, two fans and a foam rubber cable clamp strip, with the thermostat and fans fully wired to a 3.5 m connection cable.
Rittal fan mounting solutions provide effective active ventilation for professional IT and network enclosures, helping control internal temperatures and support reliable operation of heat-generating electronic equipment.
