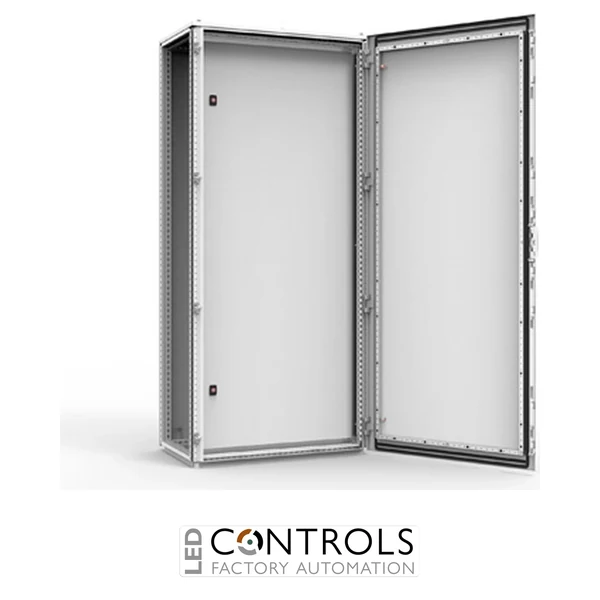

nVent HOFFMAN DI2006R5 is a RAL 7035 mild steel inner door for 2000 x 600 mm floor-standing electrical enclosures, providing an adjustable hinged mounting surface and controlled access to internal equipment.
£295.00
The nVent HOFFMAN DI2006R5 is a robust mild steel inner door for floor-standing electrical enclosures, designed to provide an additional hinged mounting surface behind a standard or glazed front door. As part of the nVent HOFFMAN DI inner door series, it allows displays, indicators and control equipment to remain accessible while covering other components and helping prevent unauthorised access.
The DI2006R5 provides a practical way to create two levels of access within an industrial enclosure. When installed in its most forward position, up to 80 mm of mounting space is available between the inner and outer doors. The inner door can also be adjusted in depth in 25 mm increments, allowing the installation to be configured around the equipment mounted inside the enclosure.
Designed for 2000 × 600 mm floor-standing enclosures, the DI2006R5 has actual dimensions of approximately 1953 × 565 × 53 mm. It is manufactured from 1.5 mm mild steel and finished with a durable RAL 7035 light grey structured powder coating. Two 3 mm double-bit locks provide controlled access to equipment installed behind the inner door.
Inner doors provide a useful secondary mounting plane inside industrial electrical enclosures. The nVent HOFFMAN DI2006R5 enables switches, indicators, displays and other operator-accessible equipment to be positioned behind the main enclosure door while components requiring restricted access remain concealed behind the inner door.
The adjustable mounting depth provides flexibility when arranging equipment, while the enclosure mounting plate remains available behind the inner door for additional components. This makes the DI2006R5 particularly useful for panel builders and automation engineers designing control systems that require separate levels of operator and maintenance access.
| Country of Manufacture | Romania |
|---|---|
| Manufacturer | nVent HOFFMAN |
| Series | DI Inner Doors |
| Model | DI2006R5 |
| Product type | Inner door for floor-standing enclosure |
| Nominal enclosure size (H × W) | 2000 × 600 mm |
| Actual height | 1953 mm |
| Actual width | 565 mm |
| Depth | approx. 53 mm |
| Material | Mild steel |
| Material thickness | 1.5 mm |
| Finish | Structured powder coating |
| Colour | Light grey |
| RAL colour | RAL 7035 |
| Depth adjustment | 25 mm increments |
| Maximum space between doors | 80 mm in the most forward position |
| Locking | Two 3 mm double-bit locks |
| Mounting | Hinged internal mounting |
| Pack quantity | 1 door with mounting accessories |
The DI2006R5 provides a hinged internal mounting surface for displays, indicators, controls and other equipment inside a compatible floor-standing electrical enclosure while helping restrict access to components mounted behind it.
The DI2006R5 is designed for compatible floor-standing enclosures with a nominal size of 2000 × 600 mm.
Yes. The inner door can be adjusted in depth in 25 mm increments, with up to 80 mm of mounting space available between the inner and outer doors when positioned fully forward.
The inner door is manufactured from 1.5 mm mild steel and has a RAL 7035 light grey structured powder-coated finish.
Yes. The DI2006R5 is equipped with two 3 mm double-bit locks, helping control access to equipment installed behind the inner door.
nVent HOFFMAN DI inner doors provide panel builders, electrical engineers and automation professionals with a flexible secondary mounting surface that supports organised equipment installation and controlled access within industrial floor-standing enclosures.
