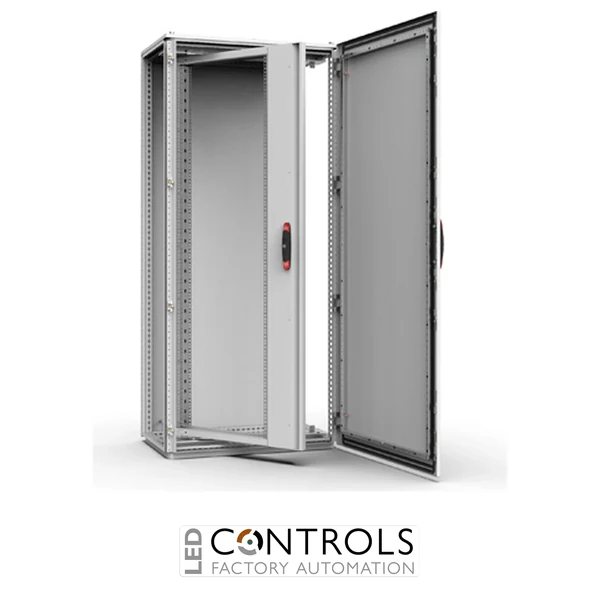

Why Choose the nVent HOFFMAN ESFS318 Swing Frame Side?
The nVent HOFFMAN ESFS318 is a side-mounted swing frame designed to provide convenient access to equipment installed within compatible industrial enclosures. With a nominal 1600 mm height, it creates a practical hinged mounting arrangement for components that need to be accessed, inspected or serviced without removing the complete internal assembly.
The swing-frame design allows installed equipment to be moved away from its normal operating position, improving access to wiring, terminals and components positioned behind the frame. This makes the ESFS318 particularly useful for control and automation installations where efficient maintenance access and effective use of enclosure space are important.
With overall dimensions of approximately 700 × 1600 × 80 mm (W × H × D), the ESFS318 provides a substantial mounting area while adding relatively little depth to the enclosure installation. As part of the nVent HOFFMAN enclosure accessory system, it is intended for professional panel-building, machine-control and industrial electrical applications requiring a hinged internal equipment mounting solution.
Key Advantages
- Provides a hinged internal mounting surface for electrical and electronic equipment.
- Improves access to components, terminals and wiring located behind the installed frame.
- 1600 mm nominal height provides substantial mounting capacity for larger enclosure installations.
- Side-mounted swing arrangement supports efficient inspection, commissioning and maintenance.
- Helps make effective use of available enclosure depth by creating an additional accessible mounting level.
- Designed as part of the nVent HOFFMAN industrial enclosure accessory system.
Key Features
- nVent HOFFMAN ESFS swing frame.
- Manufacturer model ESFS318.
- Side-mounted swinging design.
- Nominal frame height of 1600 mm.
- Overall width of approximately 700 mm.
- Overall depth of approximately 80 mm.
- Provides an additional mounting level inside compatible enclosures.
- Allows equipment to swing out for improved rear access.
- Suitable for electrical and electronic component mounting.
- Supports organised wiring and component layouts.
- Useful where frequent servicing or commissioning access is required.
- Designed for professional industrial enclosure installations.
Accessible Equipment Mounting with an Internal Swing Frame
Industrial control enclosures frequently contain several layers of equipment, making components and wiring located towards the rear difficult to reach. A swing frame provides an additional hinged mounting level that can be moved aside when access behind the installed equipment is required, simplifying commissioning, troubleshooting and routine maintenance.
The nVent HOFFMAN ESFS318 provides this functionality for compatible large enclosure installations. Its 1600 mm-high side-mounted format offers substantial mounting capacity while allowing technicians to swing the installed assembly away from the enclosure interior, improving accessibility without requiring components to be dismantled from the frame.
Typical Applications
- Industrial control and automation enclosures.
- PLC and instrumentation installations.
- Electrical distribution and control panels.
- Machine-building enclosure systems.
- Communication and electronic equipment mounting.
- Applications requiring frequent access to rear wiring and terminals.
