nVent HOFFMAN MM2005 is a 2 mm zinc-plated steel marshalling plate for 2000 mm high and 500 mm deep enclosure configurations with pre-machined openings for 24-pin connectors and compatibility with MMG plates for 16-pin connector arrangements.
£151.00

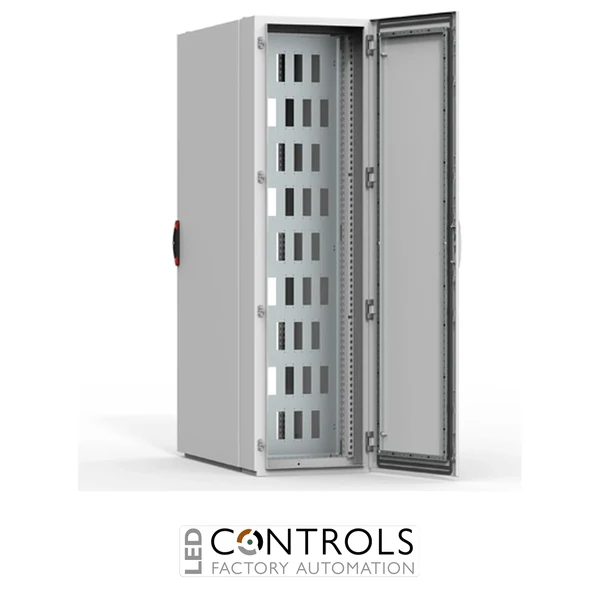

The nVent HOFFMAN MM2005 is a pre-machined zinc-plated steel marshalling plate designed for connector installation and segregation between compatible floor standing enclosures. It provides a practical way to create an organised connection interface between adjacent enclosures while keeping connector installation accessible and straightforward.
Manufactured from 2 mm zinc-plated steel, the MM2005 is designed for 2000 mm high, 500 mm deep enclosure configurations. The plate incorporates pre-machined openings for 24-pin connectors, reducing the fabrication work normally required when installing multiple industrial connectors between enclosure sections.
The MM2005 can also be used in combination with a compatible DNSR raised side door, allowing connections to be covered and protected. nVent HOFFMAN MMG cover plates can cover unused connector openings or adapt them for 16-pin connectors, providing additional flexibility when creating mixed connector arrangements.
Industrial control and power systems frequently require cables and multi-pin connectors to pass between adjacent floor standing enclosures. The nVent HOFFMAN MM2005 provides a dedicated connection interface for these installations, helping keep connectors organised while providing physical segregation between enclosure sections.
The pre-machined 24-pin connector openings can significantly reduce panel-building labour compared with fabricating individual connector cut-outs. Where different connector arrangements are required, compatible MMG components can cover unused openings or adapt the marshalling plate for 16-pin connectors. For installations requiring additional protection around the connection area, the plate can be combined with a compatible DNSR raised side door.
| Country of Manufacture | Romania |
|---|---|
| Manufacturer | nVent HOFFMAN |
| Series | MM |
| Model | MM2005 |
| Product type | Marshalling plate / connector plate |
| Application | Enclosure segregation and connector installation |
| For enclosure height | 2000 mm |
| For enclosure depth | 500 mm |
| Material | Steel |
| Surface treatment | Zinc plated |
| Material thickness | 2 mm |
| Connector openings | Yes |
| Standard connector configuration | 24-pin |
| 16-pin connector compatibility | With suitable MMG cover/adapter plates |
| Required mounting bracket set | CCJ06 |
| Compatible protective side door | DNSR raised side door |
| Compatible cover plates | MMG series |
| Pack quantity | 1 piece |
| EAN | 8713574075740 |
| UPC | 783510506841 |
The MM2005 is a marshalling plate designed to provide segregation and a convenient connector interface between compatible industrial enclosures. It can also be used with a raised side door where the connection area requires additional covering and protection.
The MM2005 is designed for compatible floor standing enclosure configurations measuring 2000 mm high and 500 mm deep.
The marshalling plate is manufactured from 2 mm zinc-plated steel, providing a robust mounting surface for industrial connector installations.
The MM2005 has a pre-machined hole pattern for 24-pin connectors. Compatible nVent HOFFMAN MMG plates can be used to adapt openings for 16-pin connectors or to cover unused cut-outs.
The MM2005 requires the CCJ06 bracket set for mounting. A compatible DNSR raised side door can be added to cover and protect the connection area, while MMG cover plates can be used for unused or adapted connector openings.
nVent HOFFMAN MM marshalling plates provide panel builders, machine manufacturers and automation engineers with a practical pre-machined solution for installing industrial connectors, segregating adjacent enclosures and reducing fabrication time in multi-enclosure control systems.
