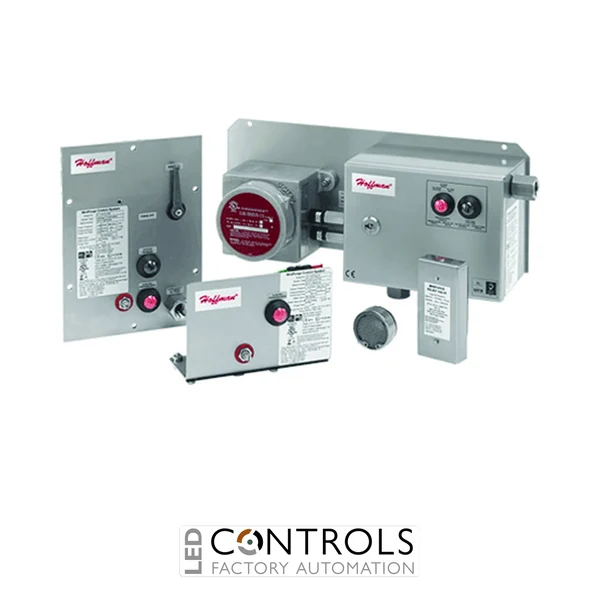

nVent HOFFMAN PLCS1X2 is an exterior-mounted Type X 230 VAC leak compensation purge and pressurization system designed to maintain positive pressure and provide automatic purging and power-disconnection protection for electrical enclosures in hazardous locations.
£11,099.00
The nVent HOFFMAN PLCS1X2 is a Type X leak compensation purge and pressurization system designed for exterior mounting on electrical enclosures installed in hazardous locations. Operating with a 230 V AC electrical interface, the system helps protect general-purpose electrical and electronic equipment by establishing and maintaining positive pressure inside the enclosure.
The PLCS1X2 initially purges the protected enclosure with clean air or inert gas to remove potentially hazardous gases or dust before maintaining positive internal pressure through leak compensation. The system consists of a control unit and relief valve, with an automatic purge cycle, rapid purge valve, visual purge status indication and local system-status indication. Type X operation also provides power disconnection when adequate pressurisation is lost or has not been established.
Designed for enclosures with a volume of typically 60 ft³ or less, the PLCS1X2 uses a dry, clean protective air or inert gas supply between 60–115 psi (4–8 bar). Exterior components are manufactured from 316L stainless steel or corrosion-resistant composite materials, while the system operates across an ambient temperature range of -20 to +55 °C, making it suitable for demanding industrial hazardous-area applications.
Purge and pressurization provides a practical method of protecting electrical equipment installed in hazardous locations. Before equipment is energised, the enclosure is purged to remove potentially explosive gases or dust and is then maintained at a positive internal pressure using clean air or an inert protective gas. This positive pressure helps prevent the surrounding hazardous atmosphere from entering the enclosure.
The nVent HOFFMAN PLCS1X2 uses the leak compensation method to maintain the required positive pressure by replacing gas lost through normal enclosure leakage. Its Type X configuration incorporates an automatic purge process and power-disconnection functionality, helping enable general-purpose electrical equipment to be installed within an appropriately integrated and certified pressurised enclosure system.
| Country of Manufacture | United States |
|---|---|
| Manufacturer | nVent HOFFMAN |
| Series | HLP |
| Model / Catalogue number | PLCS1X2 |
| Article number | 27326 |
| Product type | Purge and pressurization system |
| Operation type | Leak Compensation |
| Protection / certification type | Type X |
| Mounting | Exterior |
| Electrical rating | 230 V AC |
| Power contactor | 4PNO / 20 A / 440 V AC |
| Contactor coil voltage | 230 V AC |
| Protective gas supply | Dry, clean air or inert gas |
| Supply pressure | 60–115 psi (4–8 bar) |
| Recommended enclosure volume | Up to 60 ft³ |
| Ambient operating temperature | -20 to +55 °C |
| Material | 316L stainless steel |
| Finish | Brushed |
| Colour | Unpainted |
| Material thickness | 3.18 mm / 11 ga |
| Automatic purge cycle | Yes |
| Leak compensation | Yes |
| Rapid purge valve | Yes |
| Local visual status indication | Yes |
| Remote alarm output | Dry contact |
| Power disconnect on pressure loss | Yes |
| Nominal purge flow rate | 8 scfm / 225 Nl/min |
| Weight | 26.6 lb |
| UPC | 783510273262 |
| ETIM | EC000243 |
| IECEx certification | IECEx SIR14.0019X |
| ATEX certification | Sira 14ATEX1045X |
| North American approval | UL E466718 |
| Hazardous-location classification | Class I, Division 1, Groups A, B, C & D |
The nVent HOFFMAN PLCS1X2 is a Type X leak compensation purge and pressurization system used to maintain positive pressure inside electrical enclosures installed in hazardous locations, helping prevent potentially explosive gases or dust from entering the enclosure.
The PLCS1X2 is the 230 V AC version of the nVent HOFFMAN Type X leak compensation purge and pressurization system.
The system uses a dry, clean air or inert gas supply between 60–115 psi (4–8 bar).
As a Type X system, the PLCS1X2 provides power-disconnection functionality when the required pressurisation is lost or has not been attained, helping maintain the intended hazardous-location protection strategy.
The PLCS1X2 is typically recommended for protected enclosures with an internal volume of 60 ft³ or less.
nVent HOFFMAN purge and pressurization systems provide industrial engineers, panel builders and system integrators with purpose-designed solutions for protecting electrical equipment in hazardous locations, with the PLCS1X2 combining Type X protection, automatic purging and leak compensation in an exterior-mounted 230 V AC system.
