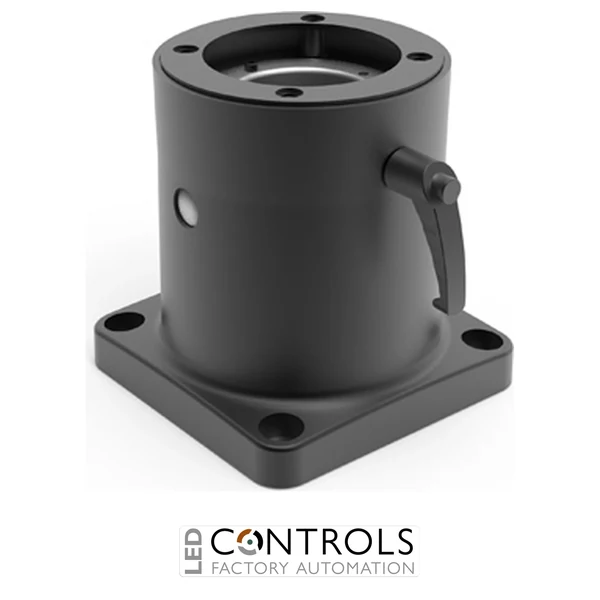

nVent HOFFMAN S2MBC is a die-cast aluminium SYSPEND 281-MAX base coupling for mounting an HMI enclosure directly to a horizontal surface with 300-degree rotation, lockable positioning, a safety stop and maintenance-free bearing.
£310.00
The nVent HOFFMAN S2MBC is a robust base coupling for the SYSPEND 281-MAX suspension system, designed to attach an HMI or control enclosure directly to a horizontal surface. It provides a secure mounting point while allowing the enclosure to rotate through 300 degrees for flexible positioning in industrial machinery and automation applications.
Manufactured from durable die-cast aluminium with a RAL 9005 black finish, the S2MBC is engineered for reliable operation in demanding industrial environments. An integrated safety stop helps control enclosure movement, while the maintenance-free bearing provides smooth rotation without requiring routine bearing maintenance.
With overall dimensions of approximately 130 mm high × 125 mm wide × 125 mm deep and a weight of approximately 2.13 kg, the S2MBC provides a substantial mounting solution for operator-interface installations. Installation instructions, gaskets and enclosure mounting hardware are included, while hardware for fixing the coupling itself to the horizontal mounting surface is supplied separately.
Industrial HMI mounting systems need to provide both secure support and convenient operator access. The nVent HOFFMAN S2MBC enables a compatible enclosure to be installed directly onto a horizontal surface while retaining rotational adjustment, making it easier to position displays and controls according to machine layout and operator requirements.
The coupling's 300-degree rotation, lockable positioning, safety stop and maintenance-free bearing make it well suited to frequently accessed operator stations. As part of the SYSPEND 281-MAX range, the S2MBC provides a purpose-designed mounting solution for industrial HMI enclosures and machine-control equipment.
| Manufacturer | nVent HOFFMAN |
|---|---|
| Series | SYSPEND 281-MAX |
| Model | S2MBC |
| Product type | Base coupling |
| Application | Direct enclosure mounting to horizontal surfaces |
| Rotation | 300 degrees |
| Position locking | Yes |
| Bearing | Maintenance-free |
| Safety stop | Included |
| Material | Die-cast aluminium |
| Colour | RAL 9005 black |
| Height | approx. 130 mm |
| Width | approx. 125 mm |
| Depth | approx. 125 mm |
| Enclosure interface diameter | approx. 108 mm |
| Weight | approx. 2.13 kg |
| Bulletin number | CS4 |
| Supplied accessories | Installation instructions, gaskets and enclosure mounting hardware |
| Surface mounting hardware | Not supplied |
The S2MBC is a base coupling used to attach a compatible industrial HMI or control enclosure directly to a horizontal surface as part of the SYSPEND 281-MAX system.
Yes. The S2MBC allows the enclosure to rotate through 300 degrees and enables it to be locked in the required position.
Yes. The coupling incorporates a maintenance-free bearing to provide smooth rotational movement without routine bearing maintenance.
The S2MBC is manufactured from durable die-cast aluminium and has a RAL 9005 black finish.
The S2MBC includes installation instructions, gaskets and enclosure mounting hardware. Hardware required to secure the base coupling to the horizontal mounting surface is not supplied.
nVent HOFFMAN SYSPEND 281-MAX suspension components provide robust and flexible mounting solutions for industrial HMI enclosures, operator interfaces and machine-control equipment.
