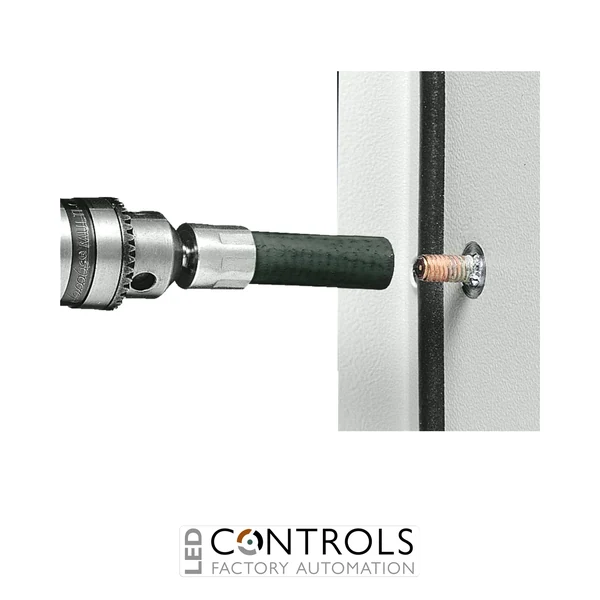

Why Choose the Rittal SM2414.500 Contact Cutter?
The Rittal SM2414.500 is a specialist contact cutter for earthing bolts, designed to prepare reliable electrical contact points on painted or coated enclosure surfaces. It enables EMC-compatible preparation of the contact area for components such as earthing straps, helping establish a dependable conductive connection to the enclosure.
The cutter uses a plastic-bound abrasive with an integrated guide pin for accurate positioning in Rittal round system punchings. By locally removing the insulating surface coating around the earthing point, the tool exposes the underlying conductive metal without requiring unnecessary removal of coating from a larger area.
Designed for use with a drill, grinder or similar powered tool, the SM2414.500 provides panel builders and electrical engineers with a quick and repeatable method of preparing earthing contact surfaces. The tool is specifically designed for earthing bolts and is supplied individually for professional enclosure assembly and electrical installation work.
Key Advantages
- Designed specifically for preparing contact points around earthing bolts.
- Supports EMC-compatible preparation of enclosure contact surfaces.
- Removes paint or coating locally to expose a conductive metal contact area.
- Integrated guide pin supports accurate positioning in round system punchings.
- Suitable for preparing connections for earthing straps.
- Can be driven using a drill, grinder or similar suitable tool.
- Compact specialist tool for panel building and enclosure assembly.
- Provides a controlled and repeatable alternative to manually removing surface coatings.
Key Features
- Rittal SM contact cutter.
- Design specifically for earthing bolts.
- Plastic-bound abrasive construction.
- Guide pin for Rittal round system punchings.
- Location point for connection to a drill, grinder or similar tool.
- Designed for EMC-compatible preparation of electrical contact areas.
- Suitable for earthing strap connection points.
- Supplied as 1 piece.
- Lightweight design with a net weight of approximately 0.039 kg.
Reliable Preparation of Earthing and EMC Contact Points
Paint and powder coatings provide valuable corrosion protection for electrical enclosures, but they can also act as electrical insulators. Where an earthing strap or similar bonding connection must make conductive contact with the enclosure, the coating around the connection point needs to be prepared correctly. The Rittal SM2414.500 provides a purpose-designed method for exposing the required contact surface around an earthing bolt.
The integrated guide pin helps centre the cutter in compatible round system punchings, while the abrasive surface removes the coating from the contact area. This makes the tool particularly useful during enclosure assembly, modification and electrical installation work where repeatable earthing and EMC bonding points are required. Rittal notes that this contact cutter is not necessary with VX and TS enclosure systems.
Typical Applications
- Preparation of earthing bolt contact points.
- Installation of enclosure earthing straps.
- EMC-compatible enclosure bonding.
- Electrical control panel assembly.
- Industrial enclosure modification and preparation.
- Machine-building and OEM electrical installations.
- Switchgear and controlgear panel manufacturing.
- Maintenance and refurbishment of industrial enclosures.
