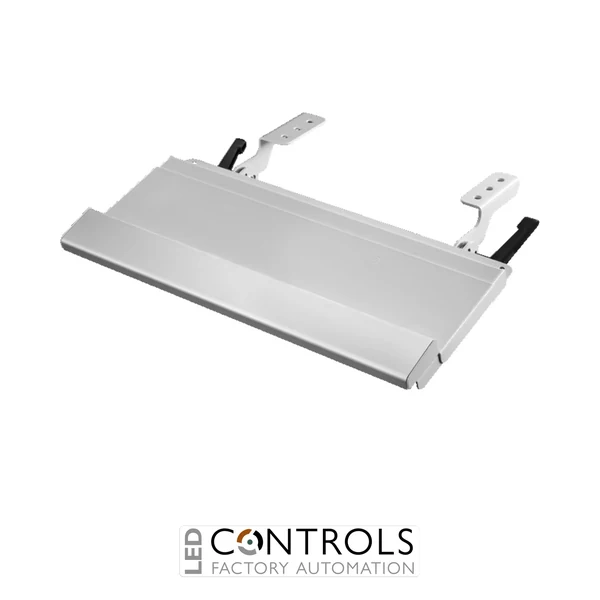

Why Choose the Rittal SM6321.010 Keyboard Support?
The Rittal SM6321.010 is a versatile industrial keyboard support for command panels and mounting surfaces, designed to provide a secure and ergonomic keyboard platform for machinery, automation systems and operator workstations. As part of the Rittal SM human-machine interface accessory range, it combines adjustable positioning with robust construction for professional industrial installations.
The keyboard support features a simple sliding mechanism that allows the support surface to be continuously adjusted in depth from 128–228 mm, accommodating keyboards of different depths. Its tilt angle can also be adjusted easily, helping operators achieve a practical working position, while the open-sided design helps prevent dirt from accumulating on the support.
With a 430 mm width, sheet steel construction and an extruded aluminium handrest, the SM6321.010 provides a durable platform for industrial keyboards. It can be fitted to command panels with handle strips, operating housings for desktop TFT displays up to 24 inches, vertical surfaces or beneath horizontal surfaces.
Key Advantages
- Versatile keyboard support for command panels and mounting surfaces.
- Support surface continuously adjustable in depth from 128–228 mm.
- Simple sliding mechanism accommodates different keyboard depths.
- Easily adjustable tilt angle supports ergonomic keyboard positioning.
- Open-sided support design helps prevent dirt accumulation.
- Suitable for operating housings with support arm connections at the top or bottom.
- Robust sheet steel construction with an extruded aluminium handrest.
- Supplied fully preassembled for straightforward installation.
Key Features
- Rittal SM keyboard support.
- 430 mm support width.
- 128–228 mm continuously adjustable support depth.
- Simple slide adjustment for different keyboard sizes.
- Adjustable inclination for comfortable operation.
- Sheet steel main construction.
- Extruded aluminium handrest.
- Textured painted surface in RAL 7035.
- Natural anodised handrest finish.
- Nylon fastening strap secures the keyboard to the support.
Flexible Keyboard Positioning for Industrial Operator Interfaces
Industrial operator stations require keyboards to remain securely positioned while also providing comfortable access for machine operators. The Rittal SM6321.010 addresses these requirements with an adjustable support surface that can be adapted to keyboard depths between 128 mm and 228 mm, together with an easily adjustable tilt angle.
The support can be connected to compatible operating housings with support arm connections at either the top or bottom. Its ability to mount on vertical surfaces and beneath horizontal surfaces also makes it a flexible solution for custom machinery and control workstation configurations, while the open-sided design minimises areas where dirt can accumulate.
Typical Applications
- Industrial command panels and operator stations.
- Machine control interfaces.
- Human-machine interface installations.
- Operating housings with handle strips.
- Desktop TFT operating housings up to 24 inches.
- Industrial PC and keyboard installations.
- Manufacturing and production machinery.
- Process automation workstations.
