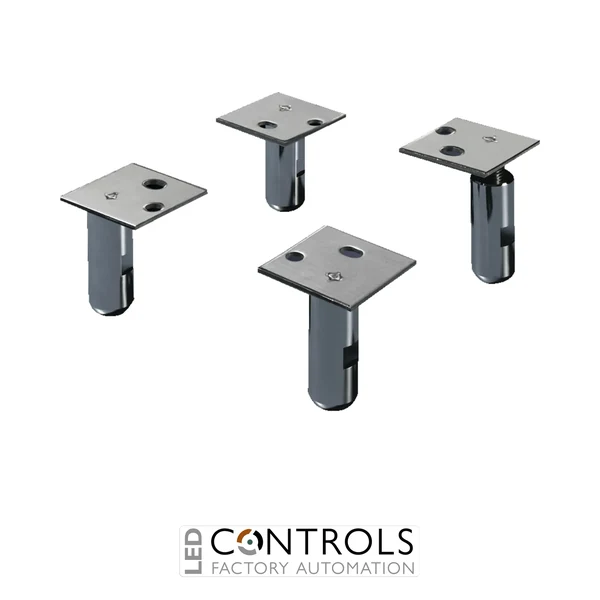

Why Choose the Rittal SO2859.000 Stainless Steel Levelling Feet?
The Rittal SO2859.000 is a set of robust stainless steel levelling feet for industrial enclosures, designed to provide stable installation while compensating for uneven floors. Suitable for Rittal VX, TS, VX SE and PC enclosures, the levelling feet provide an adjustable height range of 85–115 mm.
Designed for direct mounting on compatible enclosures, the SO2859.000 allows installers to compensate for floor irregularities of up to ±15 mm. Raising the enclosure above floor level also provides unobstructed access beneath the cabinet, making routine floor cleaning and maintenance easier.
Manufactured from corrosion-resistant stainless steel 1.4301 (AISI 304), each levelling foot supports a maximum static load of 350 kg. The SO2859.000 is supplied in a pack of four complete with assembly parts, providing a durable levelling solution for industrial enclosure installations.
Key Advantages
- Provides 85–115 mm adjustable enclosure height.
- Compensates for floor irregularities of up to ±15 mm.
- High 350 kg maximum static load capacity per levelling foot.
- Manufactured from corrosion-resistant stainless steel 1.4301 (AISI 304).
- Raises the enclosure to provide easier access for floor cleaning and maintenance.
- Suitable for Rittal VX, TS, VX SE and PC enclosures.
- Designed for direct mounting to compatible industrial enclosures.
- Supplied as a pack of four with assembly parts.
Key Features
- Rittal SO stainless steel levelling feet.
- 85–115 mm levelling range.
- Adjustment compensates for up to 15 mm floor unevenness.
- 350 kg maximum static load capacity per component.
- Stainless steel 1.4301 (AISI 304) construction.
- Compatible with VX, TS, VX SE and PC enclosure types.
- Provides additional clearance beneath the enclosure.
- Assembly parts included.
- 4 pieces per packaging unit.
Stable and Adjustable Support for Industrial Enclosures
Industrial enclosure installations require a stable and level foundation, particularly where floors are not completely even. The Rittal SO2859.000 levelling feet allow compatible enclosures to be adjusted individually at their mounting points, compensating for installation-site floor irregularities and helping the cabinet remain securely positioned.
The 85–115 mm levelling range also raises the enclosure above the floor, providing convenient clearance for cleaning beneath the cabinet. Stainless steel construction makes the feet a durable choice for industrial installations, while their 350 kg static load capacity per component supports demanding enclosure applications.
Typical Applications
- Rittal VX industrial enclosure installations.
- Rittal TS enclosure systems.
- Rittal VX SE standalone enclosures.
- Rittal PC enclosure installations.
- Industrial automation and control cabinets.
- Electrical distribution enclosures.
- Enclosures installed on uneven industrial floors.
- Applications requiring additional floor clearance for cleaning.
