Why Choose the Rittal SR1995.235 Installation Kit for Large Swing Frames?

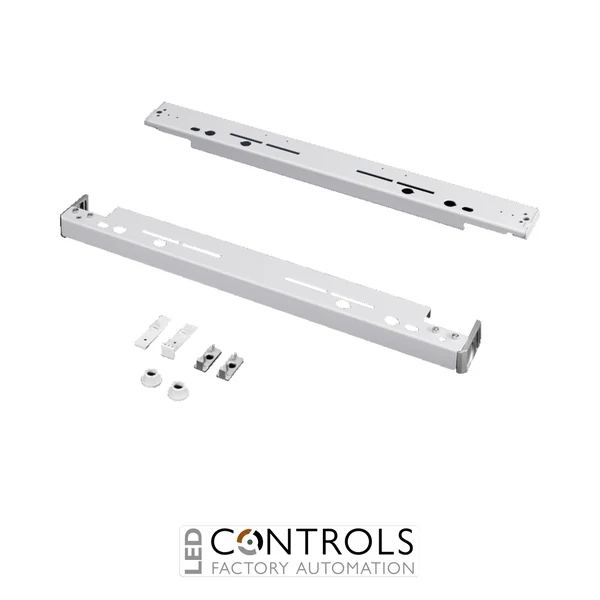

The Rittal SR1995.235 is a dedicated installation kit for a large swing frame with trim panel, designed for fitting compatible swing frames into Rittal TS and SE enclosure systems. Featuring a 130° opening angle, the kit provides convenient access to rack-mounted electrical and electronic equipment while supporting a robust swing-frame installation inside the enclosure.
Designed for compatible 800 mm wide TS and SE enclosures, the SR1995.235 supports side installation of a swing frame with a 482.6 mm (19-inch) mounting level. This makes it particularly suitable for industrial control, communications and electronic equipment installations where 19-inch components need to be mounted on a hinged internal frame.
Manufactured from durable sheet steel and finished in RAL 7035, the installation kit has a static load capacity of 1500 N. If the TS mounting plate slide rail is dismantled, the maximum permissible load is 800 N. Assembly parts required for mounting the installation kit to the enclosure are included.
Key Advantages
- Purpose-designed for installing a large Rittal swing frame with trim panel.
- Provides a 130° opening angle for convenient equipment access.
- Supports a substantial 1500 N static load capacity.
- Designed for compatible 800 mm wide Rittal TS and SE enclosures.
- Suitable for swing frames with a 482.6 mm (19-inch) mounting level.
- Supports side installation of the swing frame within the enclosure.
- Robust sheet steel construction for industrial applications.
- Supplied with assembly parts for mounting to the enclosure.
Key Features
- Rittal SR installation kit for large swing frames.
- Designed for a large swing frame with trim panel.
- 130° hinge opening angle.
- 1500 N static load capacity.
- Maximum load of 800 N with the TS mounting plate slide rail dismantled.
- For compatible enclosures with a width of 800 mm.
- Compatible with Rittal TS and SE enclosure types.
- For side installation with a 482.6 mm (19-inch) level.
- Manufactured from sheet steel.
- Finished in RAL 7035 light grey.
- Assembly components for mounting to the enclosure included.
High-Capacity 19-Inch Swing Frame Installation
Large swing frames provide a practical method of installing 482.6 mm (19-inch) equipment while retaining access to components, cabling and connections behind the mounting level. The Rittal SR1995.235 provides the mechanical interface required to install a compatible large swing frame with trim panel into an 800 mm wide TS or SE enclosure, with a 130° opening angle for convenient servicing and maintenance.
With a static load capacity of up to 1500 N, the installation kit is suitable for substantial equipment configurations. Its sheet steel construction, RAL 7035 finish and enclosure-specific mounting arrangement make the SR1995.235 a practical solution for industrial automation, communications, control and electronic systems requiring a robust internal swing frame.
Typical Applications
- Rittal TS industrial enclosure systems.
- Rittal SE enclosure installations.
- Large swing frames with trim panels.
- 482.6 mm (19-inch) rack-mounted equipment.
- Industrial automation and control cabinets.
- Communications and network equipment installations.
- PLC and industrial electronic systems.
- Electrical control and monitoring equipment.
- Applications requiring convenient rear access to swing-frame-mounted components.
