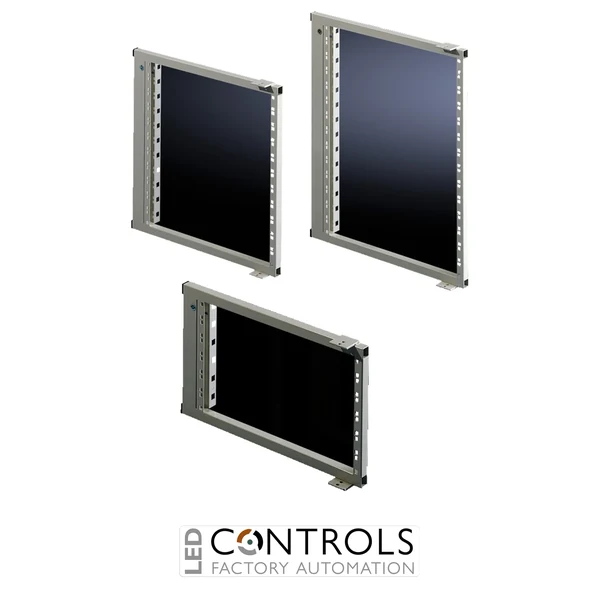

Why Choose the Rittal SR2026.200 Compact Swing Frame?
The Rittal SR2026.200 is a compact and robust swing frame accessory designed for mounting 482.6 mm (19") slide-in electronic equipment inside compatible Rittal enclosure systems. It provides an organised and accessible mounting solution for industrial electronics, control components and automation equipment.
As part of the Rittal compact swing frame range, the SR2026.200 features a torsionally stiff construction manufactured from welded rectangular tube and a triple-folded support section, providing reliable mechanical stability for installed equipment.
Designed for 600 mm wide AE enclosure systems, this compact swing frame provides 6 U of mounting space and includes a double-bit lock insert and assembly accessories for straightforward installation.
Key Advantages
- Compact swing frame for Rittal AE enclosure systems.
- 6 U mounting capacity for 482.6 mm (19") equipment.
- Rigid torsionally stiff construction for reliable equipment support.
- 600 mm enclosure width compatibility.
- Includes lock insert and mounting accessories.
- Improves accessibility for installed electronic equipment.
Key Features
- Rittal SR compact swing frame series.
- Model: SR2026.200.
- Mounting standard: 482.6 mm (19").
- Height units: 6 U.
- Material: Sheet steel / carbon steel.
- Colour: RAL 7035 light grey.
- Torsionally stiff welded rectangular tube construction.
- Supplied with double-bit lock insert and assembly parts.
Flexible Equipment Mounting for Industrial Enclosures
The Rittal SR2026.200 compact swing frame enables efficient installation of electronic components inside enclosure systems while maintaining convenient access for inspection, maintenance and servicing. Its 19" mounting capability makes it suitable for a wide range of industrial control and electronic applications.
With its strong steel construction and integrated locking solution, the compact swing frame supports reliable enclosure organisation and professional cabinet layouts for industrial automation environments.
Typical Applications
- Industrial control cabinets.
- Automation and machine-building systems.
- 19" electronic equipment mounting.
- Control and monitoring equipment installations.
- Electrical enclosure integration.
- Industrial networking and electronic systems.
