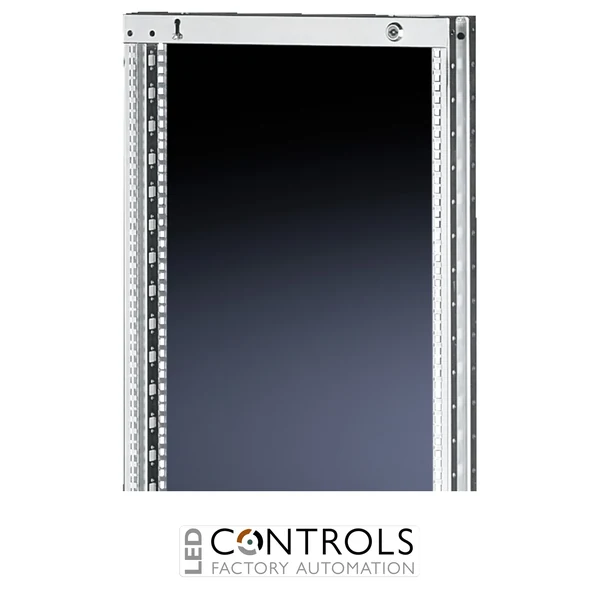

Why Choose the Rittal SR2340.700 Swing Frame?
The Rittal SR2340.700 is a large 19-inch swing frame accessory designed for mounting electronic equipment, control components and rack-mounted assemblies inside compatible Rittal TS enclosure systems. As part of the Rittal swing frame range, it provides a robust hinged mounting solution for applications requiring high equipment density, easy access and reliable enclosure integration.
This swing frame features a stable construction designed for industrial environments, allowing mounted equipment to be securely positioned while providing convenient access for installation, maintenance and servicing. The design without trim panel offers flexibility for enclosure configurations where a front cover is not required.
With a 40 U mounting capacity and compatibility with 600 mm and 1200 mm wide enclosures, the Rittal SR2340.700 is suitable for large control cabinets, automation systems and electronic equipment installations requiring a full-height 19-inch mounting solution.
Key Advantages
- Large 19-inch swing frame for high-capacity enclosure installations.
- 40 U mounting capacity for extensive rack equipment integration.
- Provides hinged access for simplified installation and maintenance.
- Suitable for wide Rittal enclosure systems with flexible mounting options.
- Robust construction for demanding industrial applications.
- Designed without trim panel for adaptable cabinet configurations.
Key Features
- Rittal large swing frame series.
- 482.6 mm (19") mounting format.
- 40 U equipment mounting capacity.
- Suitable for 600 mm and 1200 mm enclosure widths.
- Hinged frame design for improved equipment accessibility.
- Designed for integration into Rittal TS enclosure systems.
- Supplied without trim panel.
- Suitable for industrial control and electronic equipment assemblies.
Reliable High-Capacity Equipment Mounting for Industrial Enclosures
The Rittal SR2340.700 swing frame provides a secure and accessible mounting platform for large quantities of electronic and control equipment installed within industrial enclosures. The hinged construction allows engineers and maintenance teams to access mounted components efficiently while keeping equipment organised and protected.
Large swing frames are widely used in automation, control and communication applications where full-height 19-inch mounting space is required. The SR2340.700 supports professional cabinet design by combining high mounting capacity with dependable mechanical performance.
Typical Applications
- Industrial automation control cabinets.
- PLC and industrial computer installations.
- Communication and networking equipment enclosures.
- Machine control systems.
- Power and distribution control panels.
- Large industrial electronic assemblies.
