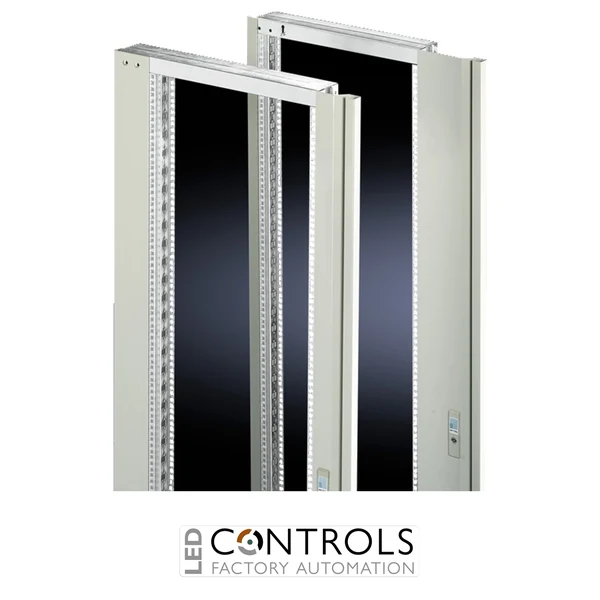

Rittal SR2341.235 large swing frame with trim panel for mounting 19-inch equipment in 800 mm wide TS, VX and SE enclosures with 40 U capacity.
£399.76
The Rittal SR2341.235 is a large 19-inch swing frame accessory designed for mounting rack-mounted electronic equipment inside compatible Rittal TS, VX and SE enclosure systems. As part of the Rittal swing frame range, it provides a robust hinged mounting solution for industrial automation, control and IT applications requiring reliable access to installed equipment.
The swing frame features a torsionally stiff construction with a welded rectangular tube frame and triple-folded support section, providing mechanical stability for installed components. The integrated trim panel creates a professional enclosure finish, while the supplied locking rod system with double-bit lock insert supports secure operation.
With a 40 U mounting capacity and compatibility with 800 mm wide TS, VX and SE enclosures, the Rittal SR2341.235 is ideal for high-density 19-inch equipment installations where accessibility and organised mounting are required.
The Rittal SR2341.235 swing frame provides a secure and accessible platform for mounting 19-inch electronic equipment inside industrial enclosure systems. The hinged design allows engineers and maintenance teams to reach installed components efficiently while maintaining a clean and organised cabinet layout.
Large swing frames are commonly used where control electronics, communication equipment and automation hardware require full-height rack mounting. The SR2341.235 combines strong mechanical construction with flexible enclosure integration for professional industrial installations.
| Manufacturer | Rittal |
|---|---|
| Series | SR Swing Frames |
| Model | SR2341.235 |
| Product type | Large swing frame with trim panel |
| Application | 19-inch equipment mounting |
| Mounting format | 482.6 mm (19") |
| Height capacity | 40 U |
| Suitable enclosure width | 800 mm |
| Compatible enclosure types | TS, VX, SE |
| Minimum enclosure height | 2000 mm |
| Material | Sheet steel |
| Frame finish | Zinc-plated |
| Trim panel finish | Spray-finished RAL 7035 |
| Weight | approx. 19.32 kg |
The SR2341.235 is a large swing frame designed for mounting 482.6 mm (19") rack-mounted equipment inside compatible Rittal enclosure systems.
The swing frame provides 40 U of 19-inch mounting space.
The SR2341.235 is designed for TS, VX and SE enclosures with an 800 mm width and minimum height of 2000 mm.
Yes, this model includes a spray-finished trim panel in RAL 7035 for a finished enclosure appearance.
The swing frame includes a locking rod system with double-bit lock insert and mounting materials.
Rittal swing frames are trusted by control panel builders and automation engineers to provide secure, accessible and efficient mounting solutions for high-density electronic equipment installations.
