Why Choose the Rittal SV 3079.000 Universal Support?

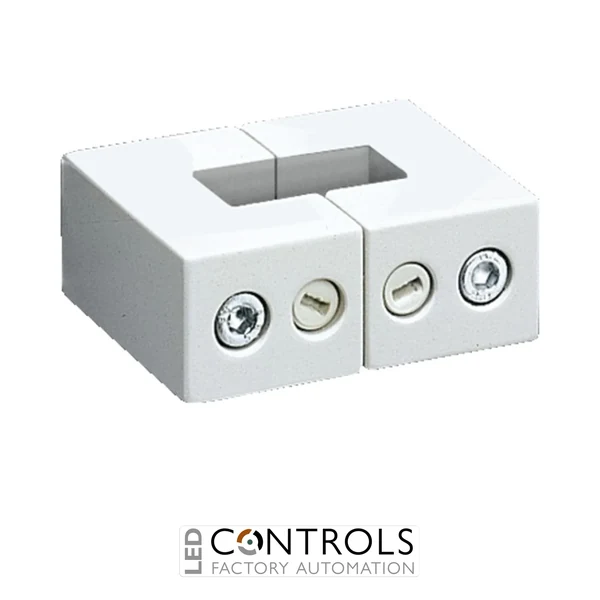

The Rittal SV 3079.000 is a robust universal support for laminated copper bars, designed to securely attach laminated conductors within industrial power distribution assemblies. Developed for Rittal power distribution applications, the support accommodates laminated copper bars across a broad size range, making it a versatile component for electrical panel and switchgear construction.
Manufactured from fibreglass-reinforced thermoplastic polyester (PBT), the SV 3079.000 combines mechanical strength with electrical insulation properties suitable for power distribution equipment. The material provides fire protection corresponding to UL 94-V0, while the RAL 7035 finish integrates neatly with compatible Rittal enclosure and power distribution systems.
The universal support is suitable for laminated copper bars from 5 × 20 × 1 mm to 10 × 63 × 1 mm, corresponding to nominal bar dimensions from 20 × 5 mm to 63 × 10 mm. Supplied with assembly parts, the support can be installed on compatible Rittal mounting rails to create a secure and organised laminated copper bar installation.
Key Advantages
- Purpose-designed support for laminated copper bars in power distribution systems.
- Accommodates laminated copper bars from 20 × 5 mm to 63 × 10 mm.
- Durable fibreglass-reinforced thermoplastic polyester construction.
- UL 94-V0 fire protection supports use in professional electrical assemblies.
- Universal design provides flexibility across multiple laminated conductor sizes.
- Supplied with assembly parts for convenient installation.
Key Features
- Rittal SV universal support.
- Designed for laminated copper bars.
- Suitable for conductor configurations from 5 × 20 × 1 mm to 10 × 63 × 1 mm.
- Fibreglass-reinforced thermoplastic polyester (PBT) material.
- Fire protection corresponding to UL 94-V0.
- RAL 7035 colour.
- Suitable for attachment to compatible Rittal mounting rails.
- Supplied in a pack of 3 pieces.
Secure Support for Laminated Copper Bar Systems
Laminated copper bars provide a compact and flexible method of carrying electrical current within switchgear, control panels and power distribution assemblies. Correct mechanical support is important for maintaining conductor positioning and creating an organised installation, particularly where multiple laminated conductors are routed through an enclosure.
The Rittal SV 3079.000 provides a universal mounting solution across a range of laminated copper bar dimensions. Its reinforced PBT construction, flame-retardant properties and compatibility with Rittal mounting systems make it suitable for professional panel building and industrial power distribution applications.
Typical Applications
- Industrial power distribution assemblies.
- Laminated copper bar installations.
- Electrical switchgear and distribution panels.
- Industrial control cabinets.
- Machine building and OEM electrical systems.
- Power distribution and panel-building applications.
