Why Choose the Rittal SV 3079.010 Universal Support?

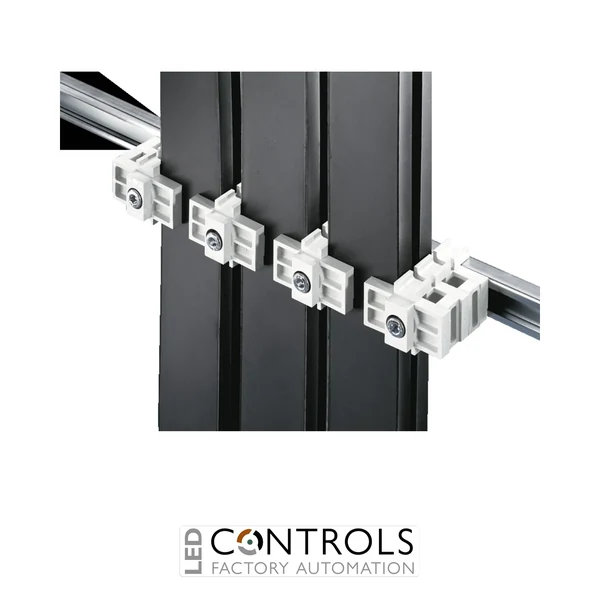

The Rittal SV 3079.010 is a robust universal support for laminated copper bars, designed for securely attaching laminated or multi-stacked laminated copper conductors within industrial power distribution assemblies. As part of the Rittal SV power distribution range, it provides a practical solution for organising and mechanically supporting flexible laminated conductors inside electrical cabinets and switchgear.
Manufactured from fibreglass-reinforced thermoplastic polyester (PBT), the SV 3079.010 combines mechanical strength with insulating properties suited to electrical power distribution applications. The material provides fire protection corresponding to UL 94-V0, while the RAL 7035 finish integrates neatly with compatible Rittal power distribution and enclosure systems.
The universal support accommodates multi-stacked laminated copper bars from 5 × 40 × 1 mm to 10 × 100 × 1 mm, corresponding to nominal conductor dimensions from 40 × 5 mm to 100 × 10 mm. Supplied complete with assembly components, it provides panel builders with a versatile mounting solution for larger laminated copper conductor configurations.
Key Advantages
- Purpose-designed support for laminated and multi-stacked laminated copper bars.
- Suitable for conductor sizes from 40 × 5 mm to 100 × 10 mm.
- Supports multi-stacked laminated bars from 5 × 40 × 1 mm to 10 × 100 × 1 mm.
- Durable fibreglass-reinforced thermoplastic polyester construction.
- UL 94-V0 fire protection for professional electrical installations.
- Universal design accommodates a broad range of laminated conductor sizes.
- Supplied with the required assembly components.
Key Features
- Rittal SV universal support.
- Designed for laminated copper bars.
- Suitable for multi-stacked laminated copper bars.
- Conductor configuration range of 5 × 40 × 1 mm to 10 × 100 × 1 mm.
- Fibreglass-reinforced thermoplastic polyester (PBT) construction.
- Fire protection corresponding to UL 94-V0.
- RAL 7035 colour.
- Supplied as 1 universal support with assembly components.
- UL and C-UL listed.
Secure Support for Laminated Copper Bar Systems
Laminated copper bars provide a compact and flexible method of carrying electrical current within switchgear, control cabinets and power distribution assemblies. Correct mechanical support helps maintain conductor positioning, separation and an organised internal layout, particularly when larger or multi-stacked laminated conductors are used.
The Rittal SV 3079.010 is specifically designed to accommodate larger laminated conductor configurations. Its reinforced PBT construction and compatibility with multi-stacked copper bars make it a practical component for professional panel builders creating robust industrial power distribution systems.
Typical Applications
- Industrial power distribution assemblies.
- Laminated copper bar installations.
- Multi-stacked laminated conductor systems.
- Electrical switchgear and distribution panels.
- Industrial control cabinets.
- Machine building and OEM electrical systems.
- Professional panel-building applications.
