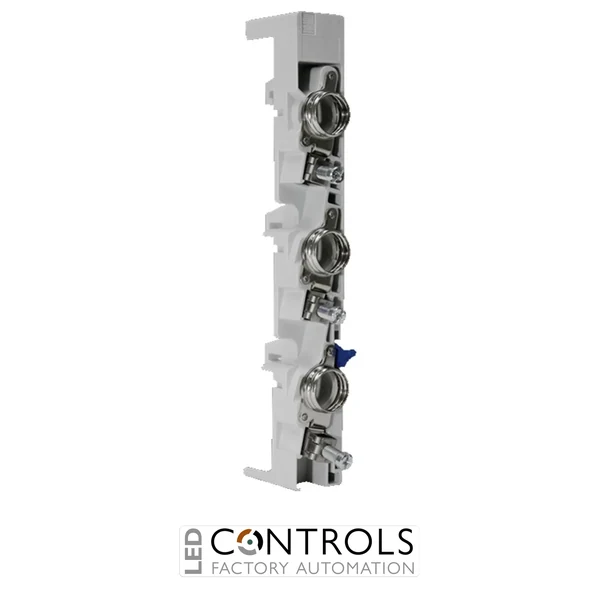

Why Choose the Rittal SV 3418.010 Bus-Mounting Fuse Base?
The Rittal SV 3418.010 is a compact and reliable 3-pole bus-mounting fuse base designed for electrical distribution systems using 60 mm busbar systems. Developed as part of the Rittal RiLine busbar system range, it accommodates D02-E18 fuse inserts using an adaptor sleeve and provides dependable circuit protection within industrial switchgear and control assemblies.
Designed for direct mounting onto compatible busbars, the SV 3418.010 helps simplify power distribution installations while reducing wiring requirements and panel space. Its robust thermoplastic construction, integrated contact hazard protection and box-terminal connections make it suitable for demanding industrial electrical applications.
With a maximum rated current of 63 A, a 400 V AC three-phase rated operating voltage and a rated insulation voltage of 690 V, the SV 3418.010 is suitable for protecting and distributing power to industrial loads. It accepts round conductors from 1.5–25 mm² and is designed for busbar systems with a 60 mm centre-to-centre spacing.
Key Advantages
- Compact 3-pole bus-mounting fuse base for industrial power distribution.
- 63 A maximum rated current for a wide range of electrical loads.
- 400 V AC three-phase operating voltage suitable for industrial electrical systems.
- Designed for 60 mm busbar systems for efficient panel integration.
- Accepts D02-E18 fuse inserts with an adaptor sleeve.
- Integrated contact hazard protection supports safe installation and operation.
Key Features
- Rittal SV bus-mounting fuse base.
- 63 A maximum rated current.
- 400 V AC three-phase rated operating voltage.
- 690 V rated insulation voltage.
- 3-pole configuration.
- Suitable for D02-E18 fuse inserts using an adaptor sleeve.
- Box-terminal electrical connections for round conductors from 1.5–25 mm².
- Designed for busbars with 5 mm or 10 mm height and 60 mm centre spacing.
Reliable Fuse Protection for Busbar Distribution Systems
Bus-mounting fuse bases such as the Rittal SV 3418.010 provide a compact method of integrating fuse protection directly into industrial busbar systems. Direct busbar mounting helps minimise conventional wiring, simplifies power distribution and allows protective devices to be positioned efficiently within switchgear and control cabinets.
The SV 3418.010 is engineered for 60 mm busbar systems and supports D02-E18 fuse inserts in accordance with recognised fuse standards. Its durable construction, contact protection and high insulation rating make it well suited to industrial panel building, machine control and low-voltage power distribution applications.
Typical Applications
- Industrial switchgear and power distribution panels.
- Machine control cabinets and automation systems.
- 60 mm busbar distribution systems.
- Motor and equipment feeder circuit protection.
- Industrial control and manufacturing installations.
- OEM electrical panel building and machine construction.
