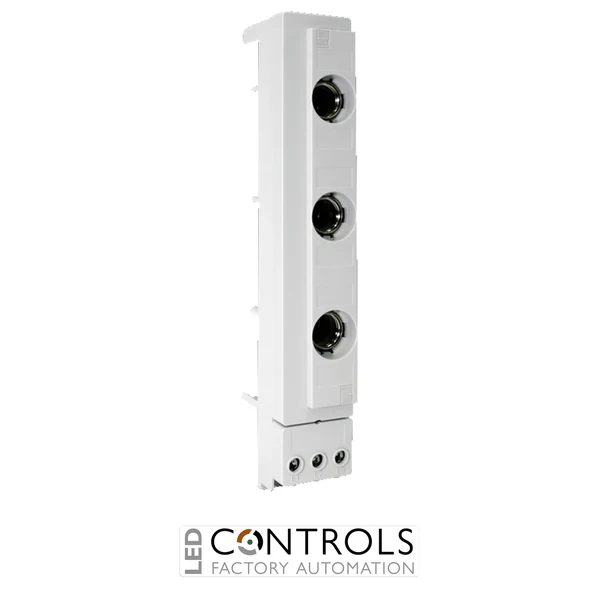

Why Choose the Rittal SV 3418.040 Bus-Mounting Fuse Base?
The Rittal SV 3418.040 is a 3-pole bus-mounting fuse base for D02-E18 fuse inserts, designed for reliable circuit protection within industrial power distribution systems. Featuring the Rittal Easy Connect design, it mounts directly onto busbar systems with a 60 mm centre-to-centre spacing and provides a compact, connection-ready solution for professional switchgear and panel-building applications.
Rated for a maximum current of 63 A, the SV 3418.040 supports a rated operating voltage of 400 V AC three-phase as well as 400 V DC configurations. Its bus-mounting fuse base is manufactured from fibreglass-reinforced thermoplastic polyester (PBT), while the contact hazard protection is manufactured from polyamide. The insulating materials provide fire protection corresponding to UL 94-V0.
The fuse base features box terminals for 1.5–16 mm² round conductors and is supplied as a pre-configured element ready for connection, including a cover plate, contact hazard protection and exterior connection clamps. Compatibility with 5 mm and 10 mm high busbars makes it a practical component for compact industrial power distribution assemblies.
Key Advantages
- Compact 3-pole D02-E18 bus-mounting fuse base.
- Maximum rated current of 63 A.
- Rated for 400 V AC three-phase applications.
- Designed for busbar systems with 60 mm centre-to-centre spacing.
- Easy Connect design simplifies installation and conductor termination.
- Box terminals accommodate 1.5–16 mm² round conductors.
- Supplied ready for connection with cover plate and contact hazard protection.
Key Features
- Rittal SV power distribution range.
- Easy Connect design.
- Designed for D02-E18 fuse inserts with adaptor sleeve.
- 3-pole configuration.
- 63 A maximum rated current.
- 690 V rated insulation voltage Ui.
- 400 V rated operating voltage.
- 60 mm busbar centre spacing.
- Suitable for busbars with 5 mm or 10 mm height.
- Fibreglass-reinforced thermoplastic polyester (PBT) fuse-base construction.
- Polyamide contact hazard protection.
- Fire protection corresponding to UL 94-V0.
Reliable Fuse Protection for Busbar Systems
Bus-mounting fuse bases provide a compact method of integrating overcurrent protection directly into industrial busbar distribution systems. The Rittal SV 3418.040 combines a three-pole D02-E18 fuse arrangement with direct mounting onto 60 mm busbar systems, helping panel builders reduce wiring complexity and create organised power distribution assemblies.
The Easy Connect configuration is supplied pre-configured and ready for connection, including the cover plate, contact hazard protection and exterior connection clamps. With support for 1.5–16 mm² round conductors and a maximum rated current of 63 A, the fuse base is well suited to branch circuit protection and distribution applications within industrial switchgear.
Typical Applications
- Industrial power distribution assemblies.
- 60 mm busbar systems.
- Electrical switchgear and distribution panels.
- D02-E18 fuse protection applications.
- Industrial control cabinets.
- Machine building and OEM electrical systems.
- Factory automation and production equipment.
- Professional panel-building installations.
