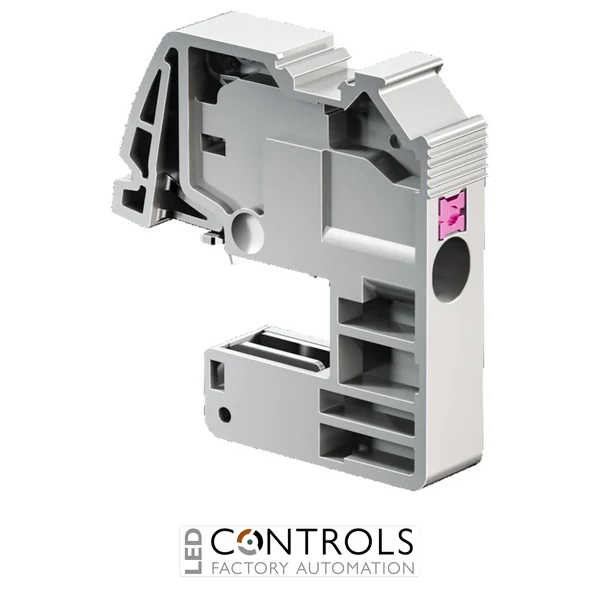

Why Choose the Rittal SV 3455.505 Push-in Conductor Connection Clamp?
The Rittal SV 3455.505 is a maintenance-free push-in conductor connection clamp designed for fast and reliable connection of round conductors to copper busbar systems. As part of the Rittal RiLine busbar system accessories range, it provides a secure and tool-free solution for electrical distribution applications in switchgear, controlgear and industrial enclosures.
This fully insulated conductor connection clamp enables time-saving top mounting onto 10 mm thick E-Cu or CUPONAL busbars. The integrated push-in connection technology allows conductors to be installed without tools, while the integrated release pin enables simple conductor removal when required.
With support for round conductors from 0.5–6 mm² depending on conductor type, the Rittal SV 3455.505 is suitable for L, N and PE conductor pick-off applications in industrial switchgear assemblies, meter boxes and power distribution systems. It is supplied as a pack of 10 pieces.
Key Advantages
- Maintenance-free push-in conductor connection clamp for busbar systems.
- Tool-free conductor connection saves installation time.
- Suitable for 10 mm thick copper busbars.
- Universal connection for L, N and PE conductors.
- Fully insulated terminal design for improved installation safety.
- Compact solution for switchgear, controlgear and distribution assemblies.
Key Features
- Rittal SV 3455.505 push-in conductor connection clamp.
- 0.5–4 mm² connection range for fine-wire and multi-wire conductors.
- 0.5–6 mm² connection range for single-wire conductors.
- 10 mm busbar thickness compatibility.
- Tool-free push-in conductor connection system.
- Integrated conductor release pin.
- Fully insulated terminal housing.
- Polyamide housing with UL 94-V0 fire protection rating.
- Colour: RAL 7042.
Reliable Push-in Busbar Connections for Industrial Power Distribution
Push-in conductor connection clamps provide a practical method for connecting outgoing conductors directly to busbar systems without traditional screw terminals. The Rittal SV 3455.505 improves installation efficiency by combining secure conductor retention with quick, tool-free assembly.
Designed for professional switchgear and controlgear construction, the SV 3455.505 supports reliable distribution of L, N and PE conductors while maintaining a compact installation footprint. Its insulated housing and robust construction make it suitable for demanding industrial electrical environments.
Typical Applications
- Industrial switchgear and controlgear assemblies.
- Electrical distribution panels and cabinets.
- Rittal RiLine busbar systems.
- Machine building and automation panels.
- Meter boxes and power distribution equipment.
- OEM electrical enclosure solutions.
