Why Choose the Rittal SV 3527.000 PLS Special Busbar?

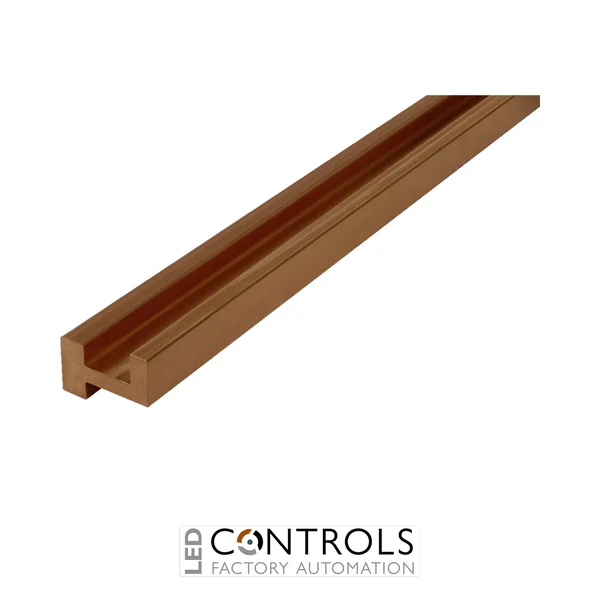

The Rittal SV 3527.000 is a high-capacity PLS special busbar manufactured from E-Cu electrolytic copper, designed for reliable power distribution within the Rittal PLS 1600 busbar system. With a substantial 900 mm² conductor cross-section and 10 mm bar thickness, it provides a robust low-resistance current path for demanding industrial switchgear and power distribution applications.
Designed for integration with Rittal RiLine power distribution equipment, the SV 3527.000 provides a compact and efficient alternative to conventional rectangular busbars in compatible PLS 1600 assemblies. Its specialised profile is engineered for use with dedicated Rittal PLS busbar supports and connection components, helping panel builders create organised, high-performance power distribution systems.
The SV 3527.000 has a length of 495 mm and is intended for installations with an enclosure width of 600 mm. It has a maximum rated current of 1,368 A under the applicable Rittal rating data, while the PLS 1600 system is designed for applications up to 1,600 A. The busbar may also be individually cut to the required length where installation requirements permit.
Key Advantages
- High-capacity E-Cu special busbar for Rittal PLS 1600 systems.
- Large 900 mm² conductor cross-section for demanding power distribution applications.
- Heavy-duty 10 mm bar thickness for robust industrial installations.
- 495 mm length designed for 600 mm wide enclosure configurations.
- May be individually cut to the required length for installation flexibility.
- Designed for integration with dedicated Rittal PLS 1600 busbar supports and connection accessories.
Key Features
- Rittal PLS 1600 special busbar.
- Manufactured from E-Cu electrolytic copper.
- 900 mm² busbar cross-section.
- 10 mm bar thickness.
- 495 mm overall length.
- 1,368 A maximum rated current.
- Suitable for the PLS 1600 busbar system.
- Designed for 600 mm enclosure width.
- Compatible with Rittal busbar supports 9342.000, 9342.004 and 9342.050.
- May be cut individually to the required length.
High-Current Power Distribution with the PLS 1600 System
High-capacity busbars provide a low-resistance path for distributing substantial electrical currents throughout industrial switchgear and control assemblies. The Rittal SV 3527.000 uses a 900 mm² E-Cu conductor cross-section to support demanding power distribution requirements while integrating directly with compatible PLS 1600 supports and accessories.
The PLS 1600 system allows panel builders to create structured busbar assemblies for high-current industrial applications. The SV 3527.000 can be combined with compatible Rittal supports and PLS busbar connectors, enabling efficient construction of power distribution systems while its ability to be cut to length provides additional installation flexibility.
Typical Applications
- High-current industrial switchgear assemblies.
- Rittal PLS 1600 power distribution systems.
- Main power distribution within electrical enclosures.
- Industrial control and distribution cabinets.
- Machine and production-line power distribution.
- OEM switchgear and electrical panel building.
