Why Choose the Rittal SV9320.060 Expansion Connector?

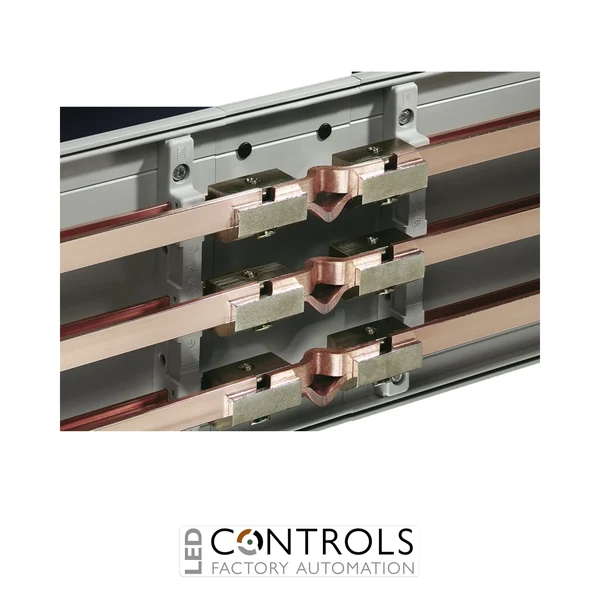

The Rittal SV9320.060 is a specialist E-Cu expansion connector designed for PLS 800 special busbars in industrial power distribution and switchgear assemblies. As part of the Rittal RiLine60 busbar system, it provides thermal and mechanical compensation when connecting PLS busbars between adjacent enclosures.
This expansion connector helps maintain reliable electrical connections by compensating for dimensional changes caused by temperature variations and mechanical stresses within extended busbar systems. It is particularly suitable for larger installations where multiple enclosure sections are connected together.
Manufactured from E-Cu copper, the Rittal SV9320.060 provides excellent conductivity and dependable performance for PLS 800 busbar applications. It supports a maximum rated current of 684 A and is designed for use with compatible Rittal busbar connectors.
Key Advantages
- E-Cu copper construction for reliable electrical performance.
- Provides thermal and mechanical compensation for PLS busbar connections.
- Designed specifically for Rittal PLS 800 special busbars.
- 684 A maximum rated current suitable for industrial power distribution applications.
- Improves long-term reliability in extended busbar installations.
- Compatible with modular Rittal RiLine60 power distribution systems.
Key Features
- Rittal RiLine60 busbar accessory.
- Expansion connector for E-Cu PLS 800 busbars.
- Material: E-Cu copper.
- Maximum rated current: 684 A.
- Designed for enclosure-to-enclosure PLS busbar connections.
- Compensates for busbar expansion caused by temperature changes.
- Suitable for busbar systems with sections exceeding 3,600 mm.
- Requires two busbar connectors for installation.
Reliable Busbar Expansion Compensation for Industrial Systems
Large busbar systems can experience mechanical movement due to temperature-related expansion during operation. The Rittal SV9320.060 expansion connector provides a controlled solution for compensating these effects while maintaining reliable electrical continuity across connected enclosure sections.
By integrating expansion compensation into the RiLine60 system, engineers can create robust and maintainable power distribution assemblies for industrial switchgear, control cabinets and large-scale electrical installations.
Typical Applications
- Industrial switchgear assemblies.
- Large electrical distribution systems.
- Control cabinet rows with connected busbar sections.
- Motor control centres.
- Machine building power distribution systems.
- PLS 800 modular busbar installations.
