Why Choose the Rittal SV9320.070 Expansion Connector?

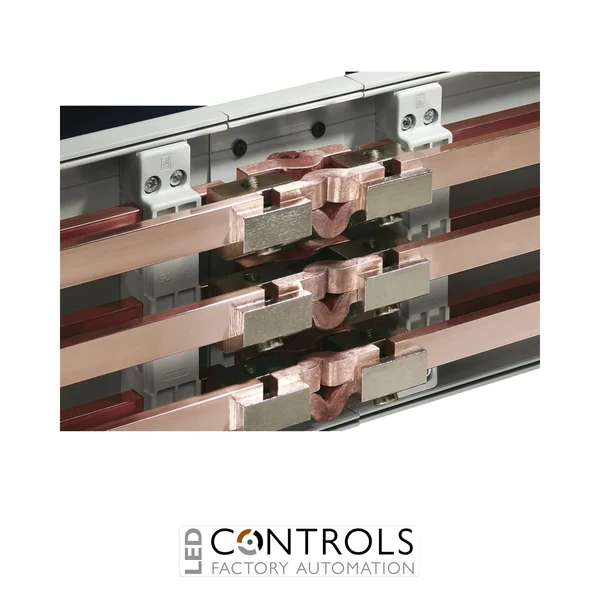

The Rittal SV9320.070 is a high-quality expansion connector for PLS 1600 busbar systems, designed to provide thermal and mechanical compensation when connecting PLS special busbars between electrical enclosures. As part of the Rittal SV RiLine60 power distribution system, it ensures reliable and flexible busbar installation in industrial low-voltage applications.
Manufactured from E-Cu electrolytic copper, the SV9320.070 provides excellent electrical conductivity while allowing controlled compensation for thermal expansion and mechanical movement within extended busbar systems. It is especially suited for installations where long busbar sections require additional flexibility.
Designed for PLS 1600 busbars, the Rittal SV9320.070 supports reliable power distribution assemblies with a maximum rated current of 1368 A. For installation, two busbar connectors are required for each expansion connector.
Key Advantages
- Designed for Rittal PLS 1600 busbar systems.
- Provides thermal and mechanical compensation between busbar sections.
- Manufactured from E-Cu copper for excellent conductivity.
- Supports reliable connection of busbars between enclosures.
- Suitable for extended busbar systems requiring expansion control.
- Compatible with Rittal RiLine60 power distribution solutions.
Key Features
- Rittal SV expansion connector.
- Compatible busbar system: PLS 1600.
- Material: E-Cu electrolytic copper.
- Maximum rated current: 1368 A.
- Designed for thermal and mechanical compensation.
- Suitable for enclosure-to-enclosure busbar connections.
- Pack quantity: 3 pieces.
Reliable Expansion Control for Industrial Busbar Systems
Busbar expansion connectors are essential components in large electrical distribution systems where temperature changes can cause copper conductors to expand and contract. By compensating for thermal movement, they help maintain reliable electrical connections and reduce mechanical stress on busbar assemblies.
The Rittal SV9320.070 provides a dependable solution for PLS 1600 installations, enabling flexible enclosure-to-enclosure busbar connections in industrial switchgear and power distribution systems.
Typical Applications
- Industrial low-voltage switchgear.
- Rittal PLS 1600 busbar assemblies.
- Enclosure-to-enclosure power distribution systems.
- Industrial electrical distribution cabinets.
- Large-scale control and automation installations.
- Power distribution systems requiring thermal compensation.
